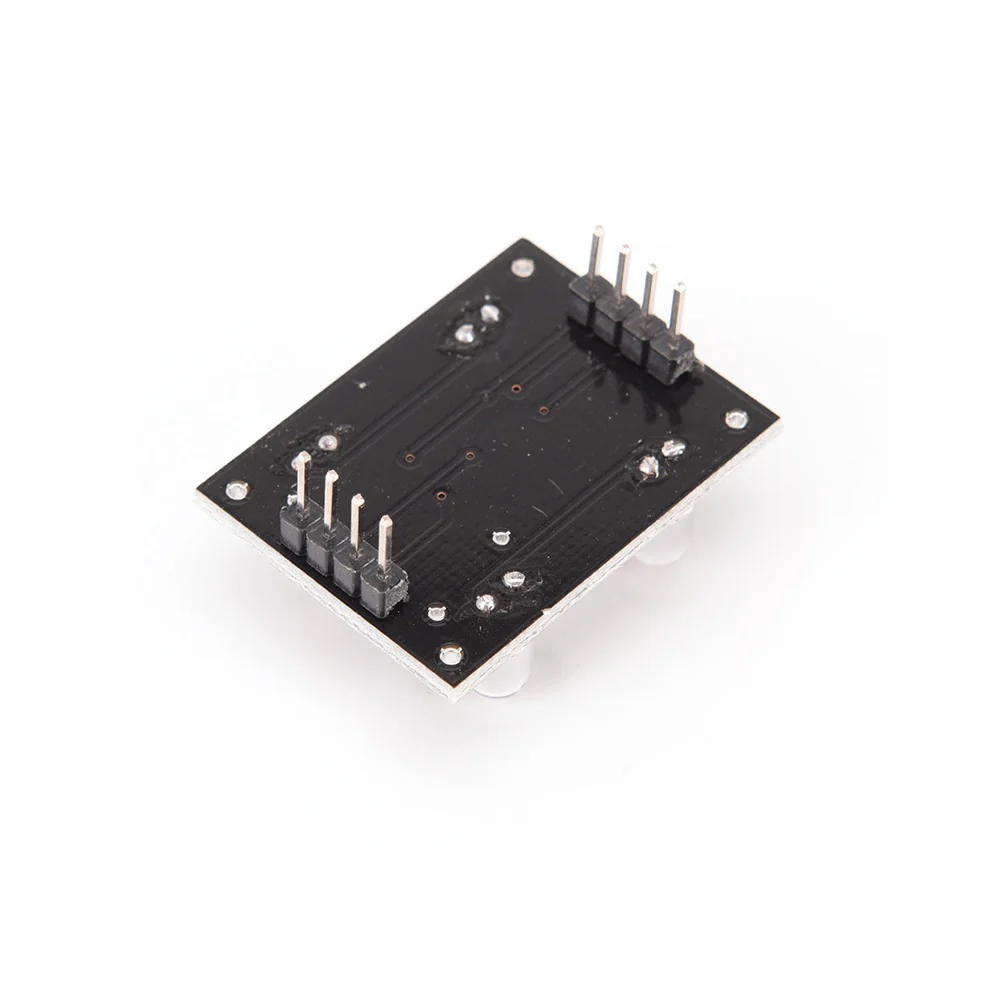

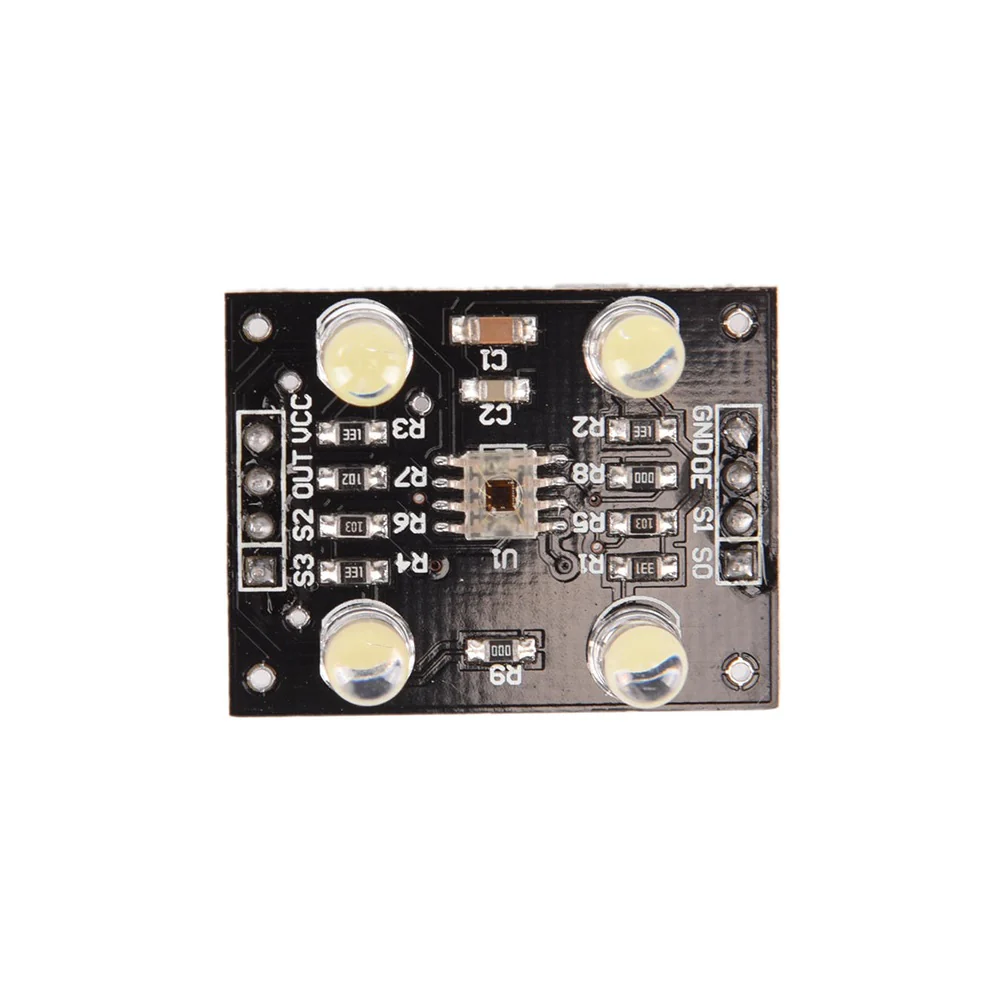

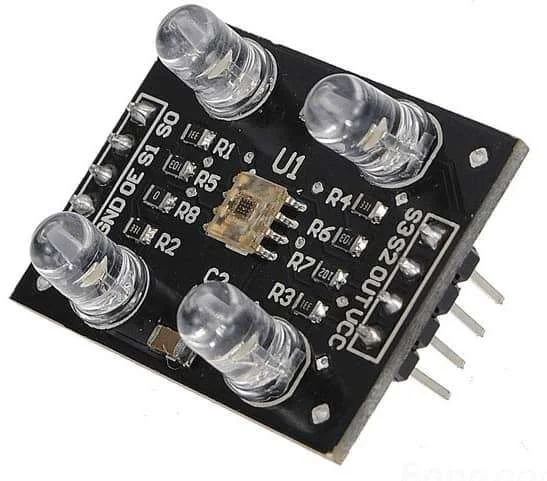

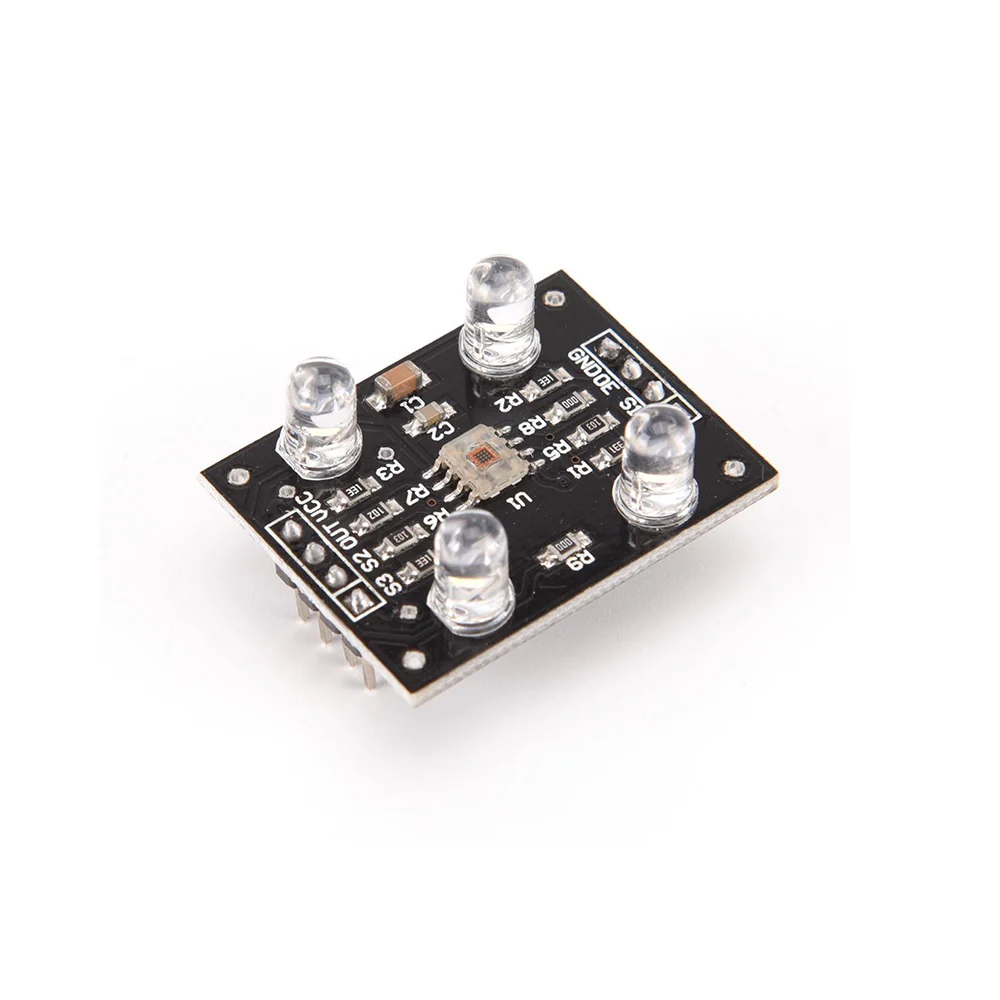

TCS3200 Color Recognition Sensor
₹310.00 (Inclusive of GST)
- High-resolution conversion of light intensity to frequency.
- All chip pins are arranged for standard 2.54 mm pitch connection.
- Convenient for prototyping and breadboard use.
- Programmable color detection and full-scale output frequency.
- Direct digital interface with microcontrollers.
- Low-profile surface-mount design suitable for compact projects.
Description
- The TCS3200 Color Recognition Sensor Module detects and distinguishes colors using an array of photodiodes with red, green, blue, and clear filters.
- It converts color intensity information into a square wave output, where the frequency corresponds to the intensity of detected color light.
- Operates typically at 3 V to 5 V, making it compatible with most Arduino, Raspberry Pi, and other MCU boards.
- Features built-in illumination LEDs for consistent and accurate color readings.
- High sensitivity and fast response time make it suitable for real-time color detection and dynamic applications.
- User-friendly interface with adjustable output scaling (100%, 20%, 2%, off).
- Compact and lightweight—ideal for embedded and robotic systems.
- Commonly used in color sorting, line following, ambient light sensing, and interactive electronic projects.
PACKAGE INCLUDES
- 1 × TCS3200 Color Recognition Sensor Module
Additional information
| Weight | 10 g |
|---|
Reviews (0)
Applications
- Color Sorting Systems
- Line Following Robots
- Color Identification and Measurement
- Ambient Light Detection
- Paint and Dye Quality Control
- Interactive Display Systems
- Food Grading and Quality Control
- Textile Industry Color Matching
- Automation and Robotics Systems
TECHNICAL SPECIFICATIONS
| Parameter | Specification |
| Operating Voltage (VDC) | 3 – 5 V |
| Best Detection Range | ~100 mm |
| Output Type | Digital frequency (square wave) |
| Color Filters | Red, Green, Blue, Clear |
| Output Frequency Scaling | 100%, 20%, 2%, Power Down |
| Length | 32 mm |
| Width | 25 mm |
| Height | 11 mm |
| Module Weight | 4 g |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 5 × 4 × 3 cm |
