4.5 Inch Flex Sensor
₹460.00 (Inclusive of GST)
- Operating Voltage: 0–5V DC
- Flat Resistance: 10KΩ (typical)
- Bend Resistance Range: 60KΩ – 110KΩ (at 180° bend)
- Power Rating: 0.5 W continuous, 1 W peak
- Resistance Tolerance: ±30%
- Life Cycle: > 1 million flexes
- Temperature Range: –35°C to +80°C
- Analog Output (resistance varies with flex angle)
Description

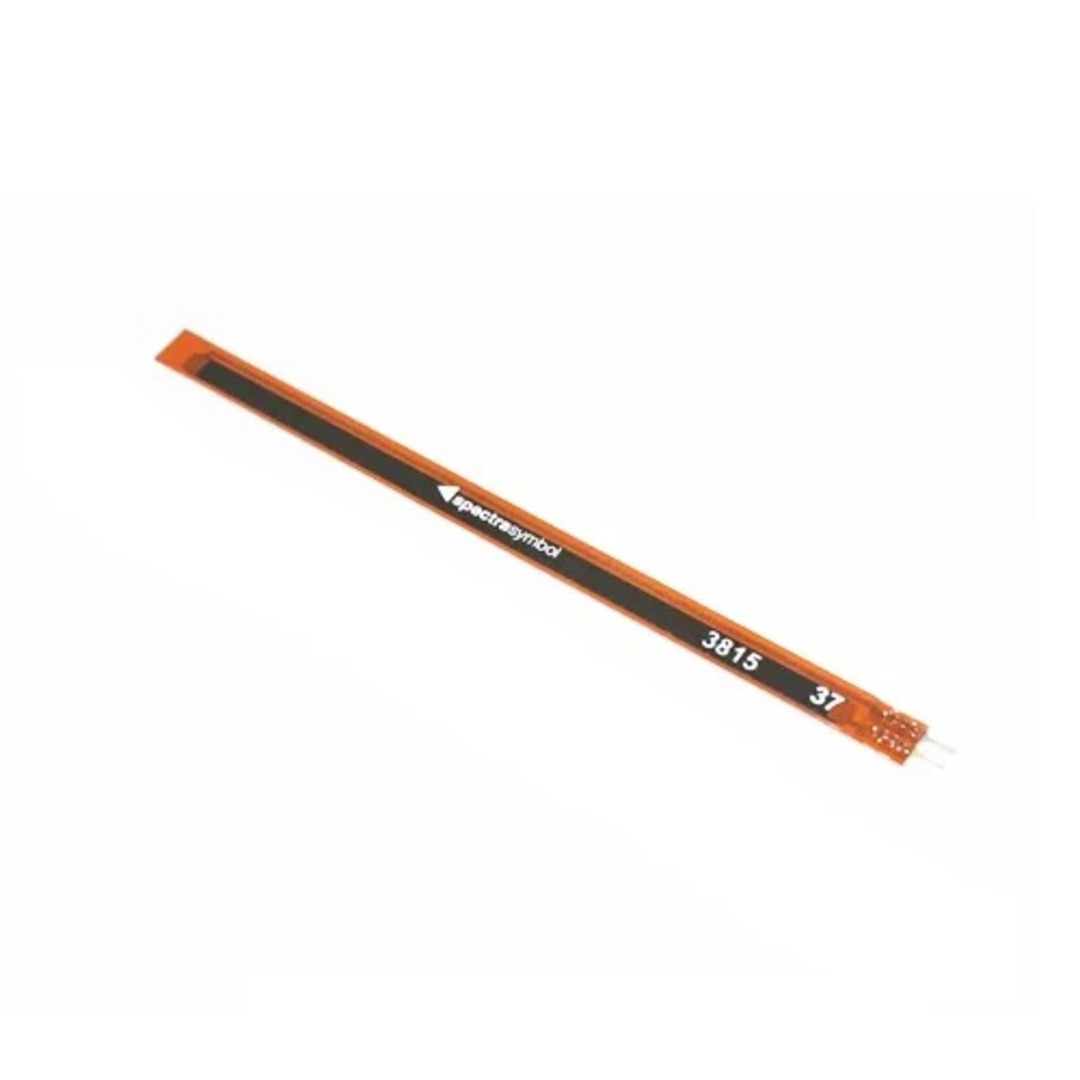

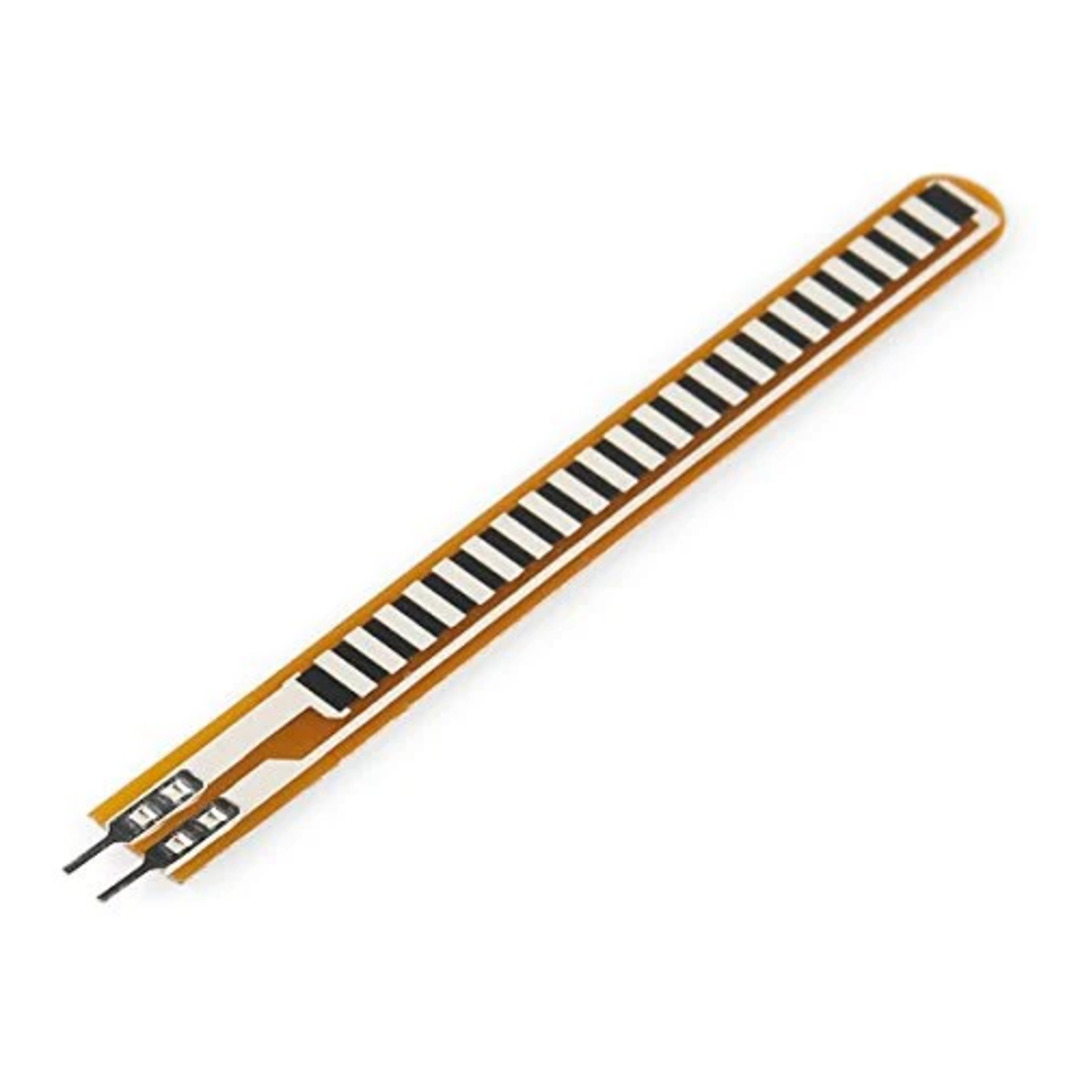

- The FLEX-4.5-INCH is a variable-resistance bend sensor from Spectra Symbol, designed to detect physical flex, angle displacement, and motion.
• It works by changing its resistance as it bends — the more the sensor is flexed, the higher its resistance.
• Designed for motion sensing, gesture detection, and biomedical measurement, it’s widely used in robotics, gaming, and wearable technologies.
• Its lightweight, thin, and durable construction allows easy integration into gloves, exoskeletons, prosthetics, and musical control interfaces.
• The FLEX-4.5-INCH model offers a larger sensing area compared to the 2.2-inch version, providing greater range and smoother output in applications involving full joint motion.
 PACKAGE INCLUDES:
- 1 × Spectra Symbol Flex Sensor 4.5″ Bend Sensor (for Hand Gesture Recognition)
Additional information
| Weight | 5 g |
|---|
Reviews (0)
Application
- Angle Displacement Measurement
- Motion and Gesture Recognition
- Robotics and Automation
- Gaming and Virtual Reality
- Biomedical and Wearable Devices
- Musical Instrument Control
- Computer Peripherals and Input Devices
- Physical Therapy and Rehabilitation
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Operating Voltage | 0–5V DC |
| Flat Resistance | 10KΩ (typical) |
| Bend Resistance Range | 60KΩ – 110KΩ (at 180° bend) |
| Power Rating | 0.5 W continuous, 1 W peak |
| Resistance Tolerance | ±30% |
| Life Cycle | > 1 million flexes |
| Temperature Range | –35°C to +80°C |
| Analog Output (resistance varies with flex angle) | |
