ACS712 30A Current Sensor Module
₹96.00 (Inclusive of GST)
ACS712 20A Current Sensor Module
₹95.00 (Inclusive of GST)
- Current Measurement Range: ±20 A
- Supply Voltage: Typically 5 V DC
- Output Voltage: 5 V to 4.5 V (corresponding to -20 A to +20 A)
- Sensitivity: 100 mV/A (for the 20 A version)
- Bandwidth: Up to 80 kHz
- Response Time: Fast response, suitable for dynamic measurements
- Isolation Voltage:1 kV RMS (providing electrical isolation between the sensor and the measured circuit)
- Operating Temperature Range: -40 °C to +85 °C
Description
- Provides an analog voltage output that is directly proportional to the measured current.
- Uses the Hall-effect to detect the magnetic field produced by the current flowing through an internal copper conductor.
- Offers high precision with low offset voltage, ensuring accurate current measurements.
- Provides galvanic isolation between the high-current path and the signal side (rated 1 kV RMS isolation voltage).
- Designed to operate within a specific temperature range for reliable performance in various conditions.
PACKAGE INCLUDES:

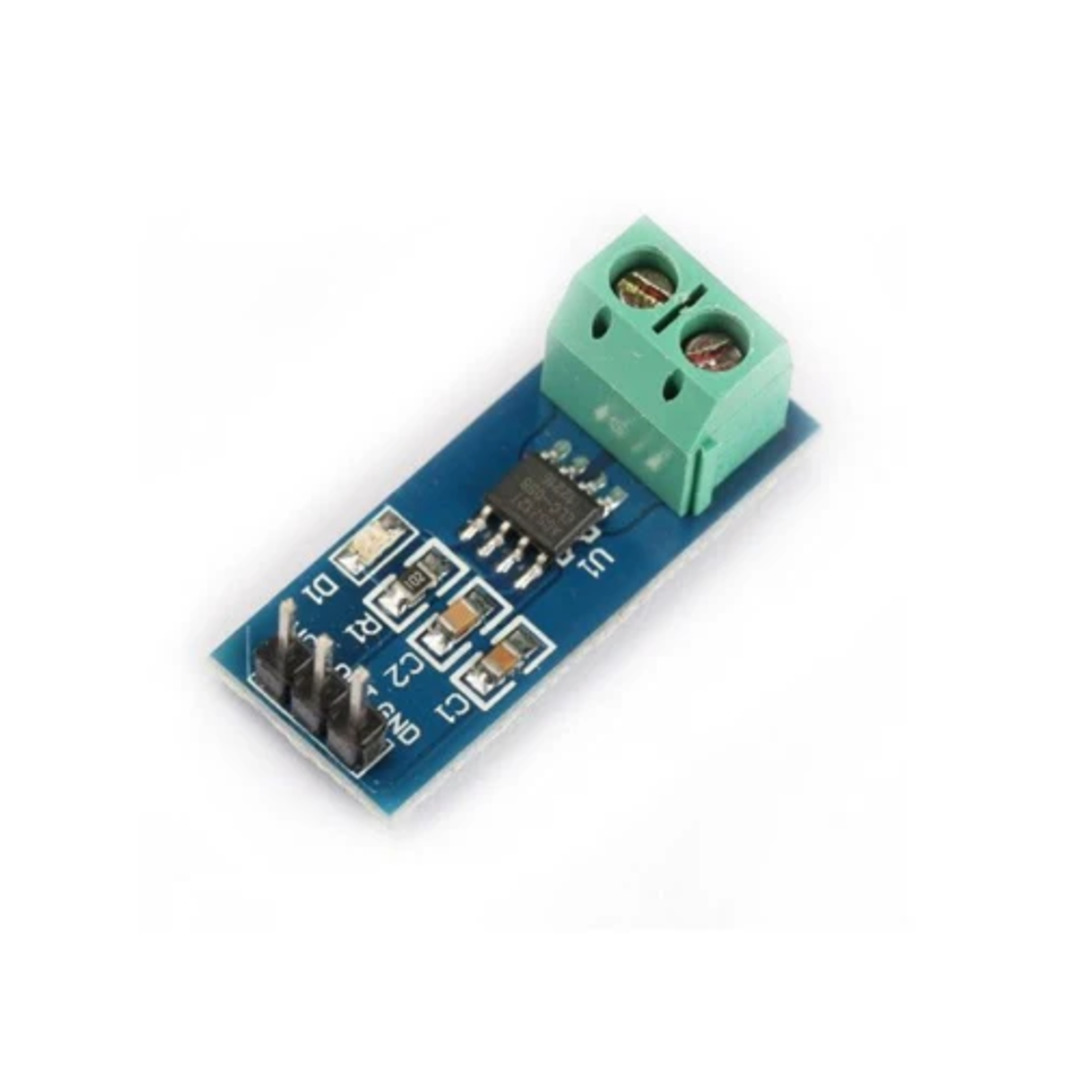

- 1 x 20A Range Current Sensor Module ACS712
Additional information
| Weight | 5 g |
|---|
Reviews (0)
Application
- Overcurrent Protection
- Battery Management Systems
- Motor Control Systems
- Power Monitoring
- Load Measurement
- Current Feedback in Power Supplies
- Energy Metering
- Home Automation
- Industrial Automation
- HVAC Systems
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Current Measurement Range | ±20 A |
| Supply Voltage | Typically 5 V DC |
| Output Voltage | 5 V to 4.5 V (corresponding to -20 A to +20 A) |
| Sensitivity | 100 mV/A (for the 20 A version) |
| Bandwidth | Up to 80 kHz |
| Response Time | Fast response, suitable for dynamic measurements |
| Isolation Voltage | 1 kV RMS (providing electrical isolation between the sensor and the measured circuit) |
| Operating Temperature Range | -40 °C to +85 °C |
