ACS712 5A Current Sensor Module
₹92.00 (Inclusive of GST)
- Low-noise analog signal path for precise current sensing.
- Bandwidth adjustable via FILTER pin.
- 5 µs output rise time for rapid response to changing current.
- Compact SOIC-8 package for easy PCB integration.
- 2.1 kV RMS minimum isolation voltage between primary current path and signal pins.
- Operates on a single 5V supply.
- Output sensitivity ranges from 66 to 185 mV/A depending on version.
- Analog voltage output proportional to both AC and DC current.
- Factory-trimmed for offset accuracy and low drift.
- Excellent stability and near-zero magnetic hysteresis.
- Ratiometric output—scales proportionally with supply voltage for consistent performance.
Description

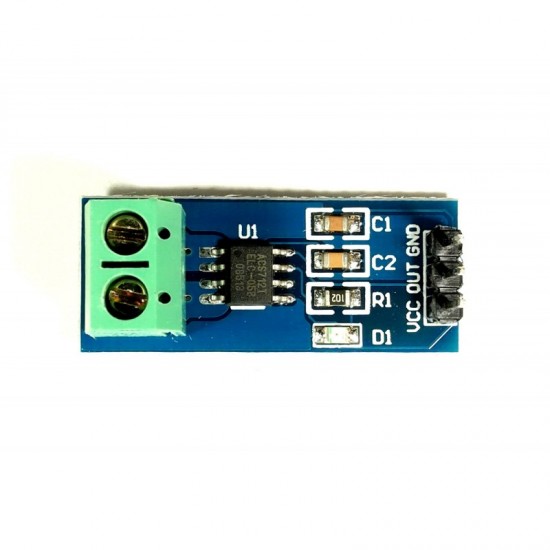

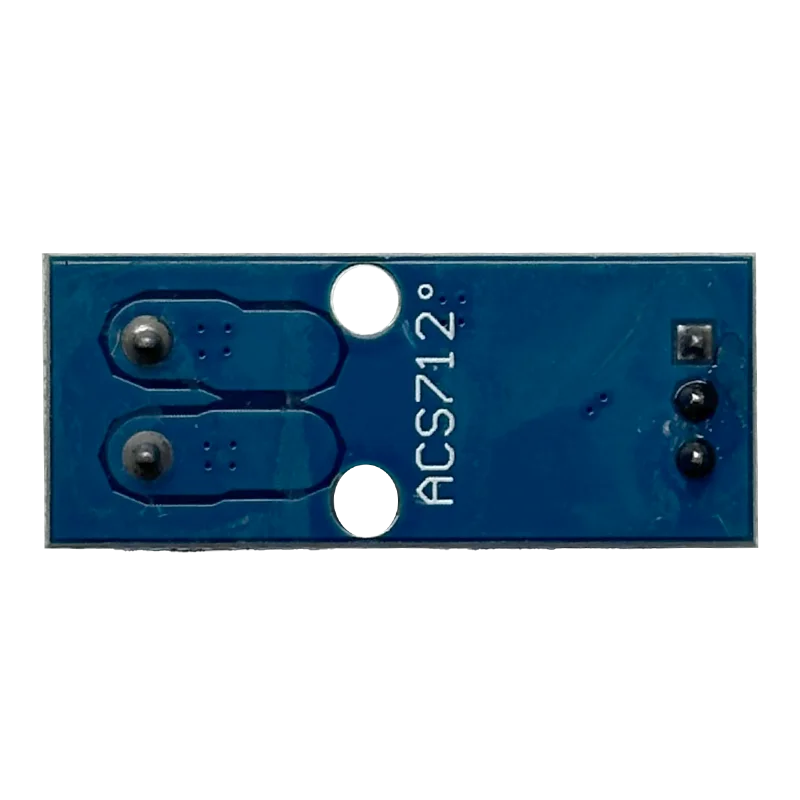

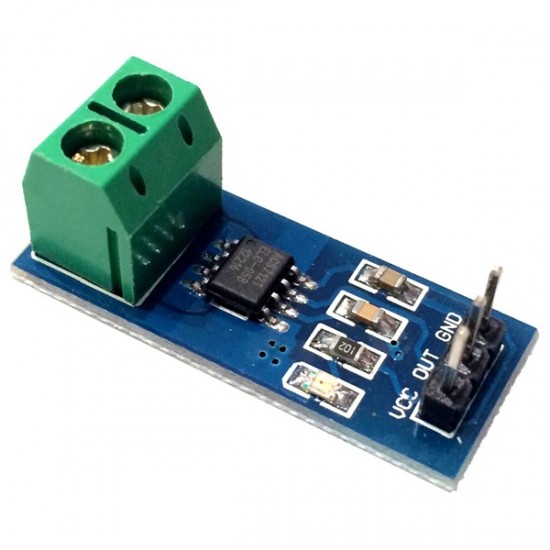

- The ACS712-5AMS-CURRENT-W is a Hall-effect based linear current sensor module, designed for accurate measurement of AC and DC currents up to ±5A.
- Built around the ACS712ELC-05B sensor IC, this module integrates precision analog circuitry for stable and noise-free performance.
- The Hall-effect sensing element detects the magnetic field produced by current flow, converting it into a proportional analog voltage output.
- The output can be easily read by the analog-to-digital converter (ADC) of a microcontroller such as Arduino, ESP32, or Raspberry Pi Pico.
- The sensor operates from a single 5V supply and outputs a centered voltage (~2.5V at zero current), which increases or decreases linearly with the current direction.
- The FILTER pin allows users to set bandwidth via an external capacitor, enabling flexibility for noise-sensitive or high-speed applications.
- The compact module simplifies integration, making it ideal for power monitoring, current control, and protection systems.
PACKAGE INCLUDES:
- 1 × ACS712 5A Range Current Sensor Module
Additional information
| Weight | 5 g |
|---|
Reviews (0)
Application
- Power Supply and Battery Charger Monitoring
- Motor Current Measurement and Control
- Power Management Systems
- Electric Vehicles (EVs) and Hybrid Electric Vehicles (HEVs)
- Industrial Automation and Process Control
- Smart Energy Metering and Smart Grids
- Consumer Electronics Power Monitoring
- Renewable Energy Systems (Solar/Wind)
- Overcurrent and Short-Circuit Protection
- Automotive Electronics and Load Diagnostics
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Low-noise analog signal path for precise current sensing. | |
| Bandwidth adjustable via FILTER pin. | |
| 5 µs output rise time for rapid response to changing current. | |
| Compact SOIC-8 package for easy PCB integration. | |
| 2.1 kV RMS minimum isolation voltage between primary current path and signal pins. | |
| Operates on a single 5V supply. | |
| Output sensitivity ranges from 66 to 185 mV/A depending on version. | |
| Analog voltage output proportional to both AC and DC current. | |
| Factory-trimmed for offset accuracy and low drift. | |
| Excellent stability and near-zero magnetic hysteresis. | |
| Ratiometric output—scales proportionally with supply voltage for consistent performance. | |
