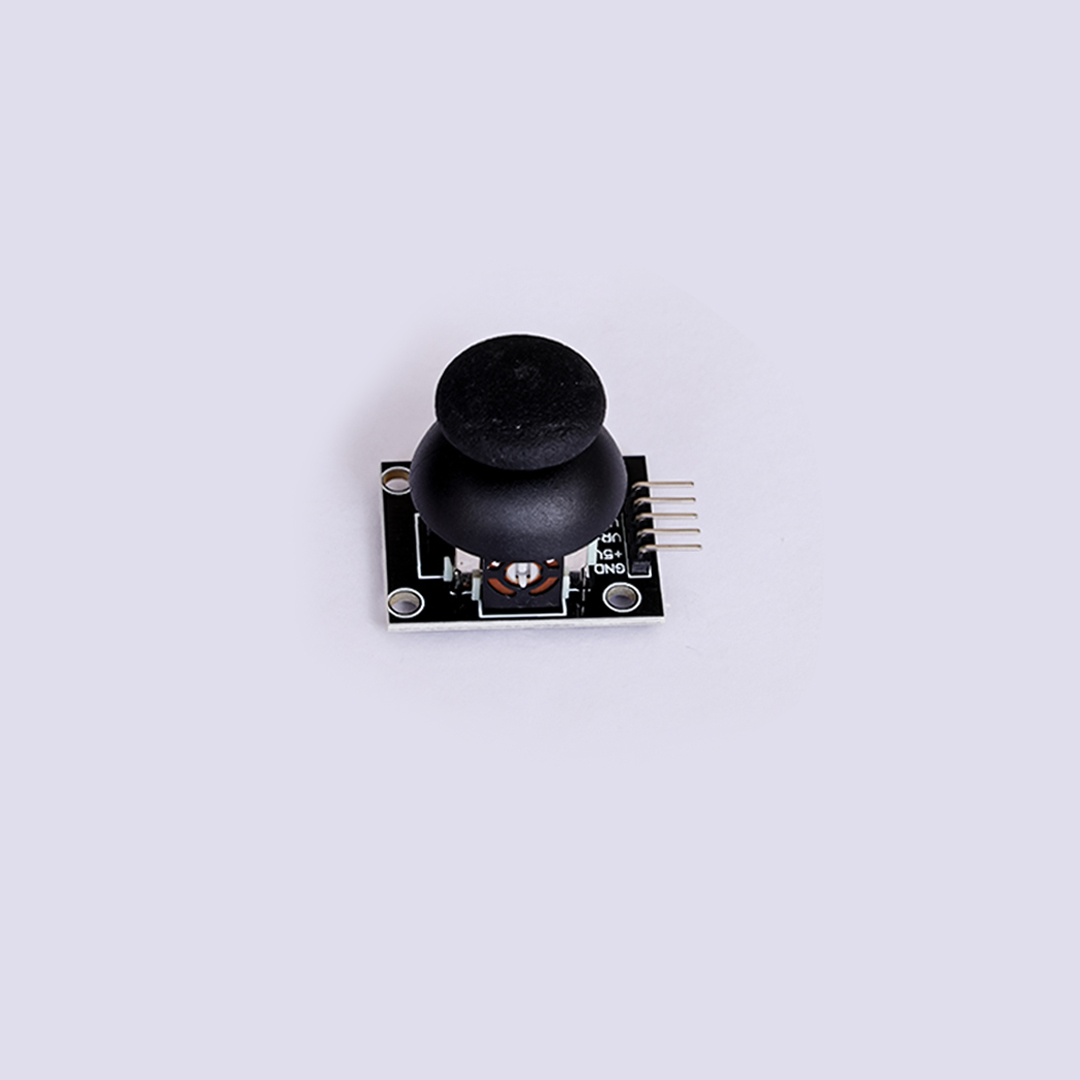

PS2 Joystick Module
- Dual-axis control: X-axis & Y-axis (Analog outputs)
- Integrated momentary push button (Digital output)
- Uses PS2-style thumb joystick
- Compatible with Arduino, ESP32, ESP8266, Raspberry Pi, PIC, AVR
- Standard 2.54 mm pin headers for easy interfacing
- Powered by 3.3V – 5V
- Long-life potentiometer mechanism
- Wide movement range and smooth tactile response
Description
- The PS2 Joystick Module is a two-axis analog control interface widely used in DIY electronics, robotics, and gaming applications.
- Internally, it uses dual potentiometers to output analog voltage corresponding to X and Y movement.
- A built-in push button switch activates when the joystick is pressed down, offering a third control input.
- Provides smooth directional control and high durability similar to original PlayStation 2 controllers.

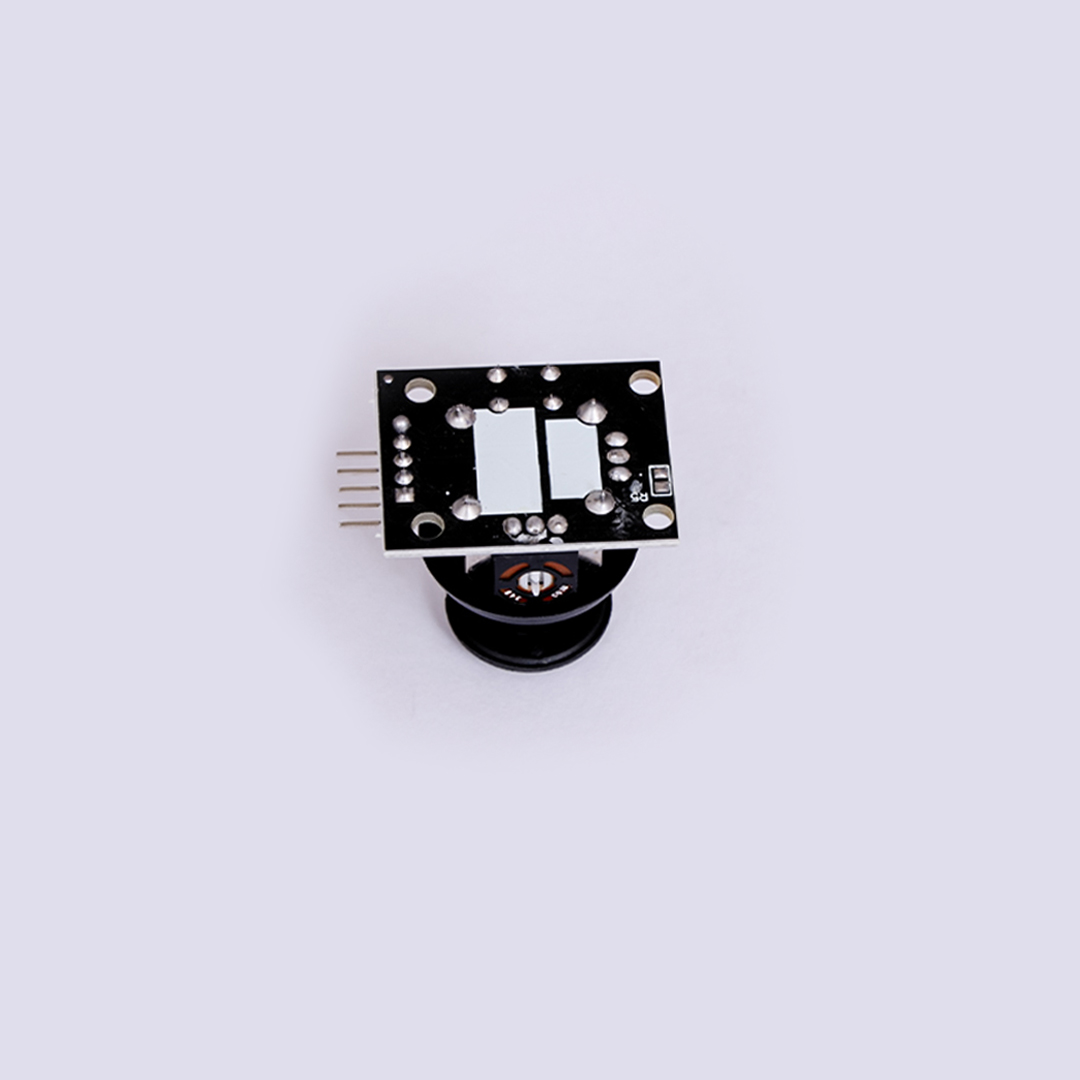

- The breakout board converts the joystick signals into easy-to-read analog and digital outputs, ideal for microcontrollers.
- Works perfectly for robot control, menu navigation, camera gimbals, servo control, and game controller projects.
- Compact and easy to mount, making it suitable for embedded and handheld device projects.
PACKAGE INCLUDES
- 1 × PS2 Joystick Module with Breakout Board
Reviews (0)
Applications
- Robotic car or arm control
- Camera pan/tilt control
- Game controllers (DIY arcade / handheld)
- Servo & motor control interfaces
- Menu/navigation control for embedded systems
- IoT input devices
- CNC jog control
- Educational electronics projects
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Operating Voltage | 3.3V – 5V |
| Output Type | Analog (X, Y) + Digital (SW) |
| X-axis Output Range | 0 – Vcc (Centered ~ Vcc/2) |
| Y-axis Output Range | 0 – Vcc (Centered ~ Vcc/2) |
| Push Button Level | Low = pressed, High = released |
| Connector Type | 2.54 mm header pins |
| Dimensions | Approx. 40 × 26 × 32 mm |
| Weight | ~15 g |
