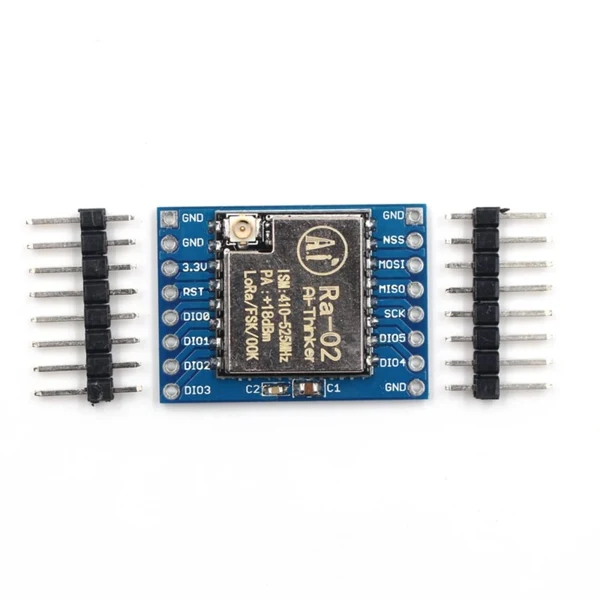

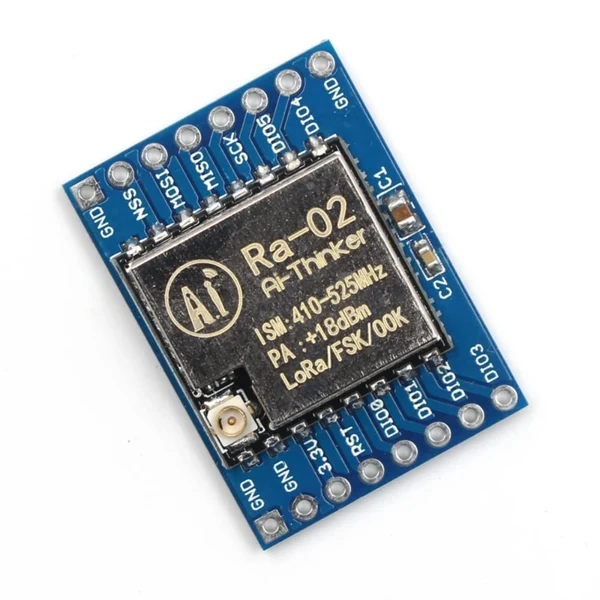

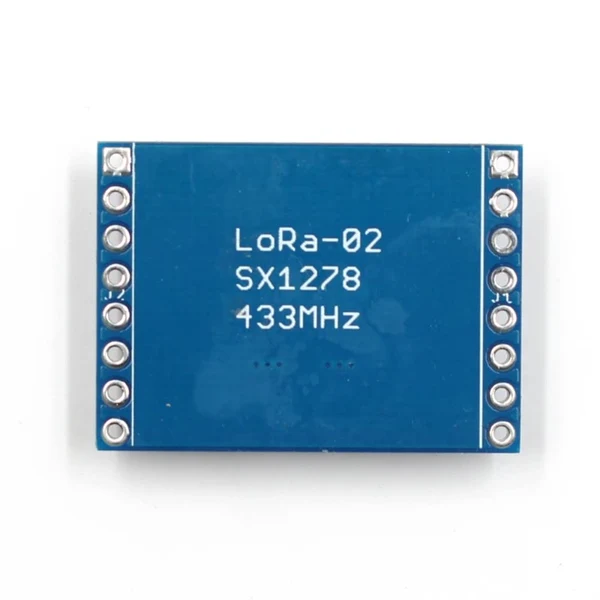

SX1278 LoRa Module RA-02 433MHz Wireless Module
- Based on Semtech SX1278 LoRa transceiver
- 433MHz wireless communication
- LoRa Chirp Spread Spectrum technology
- High receiver sensitivity
- SPI communication interface
- Low-power operation
- Supports long-range wireless communication
- Compact SMD module
- Suitable for IoT and wireless sensor applications
- Compatible with 3.3V microcontrollers
The SX1278 LoRa RA-02 433MHz Wireless Spread Spectrum Transmission Module is designed for long-range, low-power wireless communication applications.
Based on the Semtech SX1278 transceiver, the RA-02 uses LoRa Chirp Spread Spectrum (CSS) technology to provide high sensitivity and improved resistance to interference compared with many conventional wireless communication methods. The module supports SPI communication and can be interfaced with compatible microcontrollers and development boards.
The module operates in the 433MHz ISM band and is suitable for IoT, remote monitoring, sensor networks, automation, telemetry and other wireless communication projects.
The RA-02 provides high receiver sensitivity of up to approximately -148 dBm and supports programmable data rates. Depending on configuration and implementation, transmit power can reach up to +20 dBm.
PACKAGE INCLUDES:
- 1 × SX1278 LoRa RA-02 433MHz Module
Antenna: Not included unless specifically mentioned in the product variant.
| Shipping Weight | 5 g |
|---|
- IoT wireless communication
- Wireless sensor networks
- Smart agriculture
- Remote monitoring
- Industrial data collection
- Home automation
- Smart home systems
- Wireless alarms
- Remote control systems
- Energy and utility monitoring
- Environmental monitoring
- Arduino wireless projects
- ESP32 wireless projects
- STM32 projects
| Specification | Details |
|---|---|
| Module | RA-02 |
| Wireless Chip | SX1278 |
| Frequency | 433 MHz |
| Frequency Range | 410–525 MHz |
| Modulation | LoRa / FSK / GFSK / OOK |
| Communication Interface | SPI |
| Supply Voltage | 1.8–3.7 V |
| Recommended Supply Voltage | 3.3 V |
| Maximum Transmit Power | +20 dBm |
| Receiver Sensitivity | Up to -148 dBm |
| Operating Temperature | -40°C to +85°C |
| Module Dimensions | Approx. 17 × 16 mm |
| Antenna Interface | IPEX / U.FL |
| Communication Technology | LoRa Spread Spectrum |
| Module Type | Wireless Transceiver |
| Application Frequency Band | 433 MHz ISM Band |
| Module Weight | Approx. 2 g |
