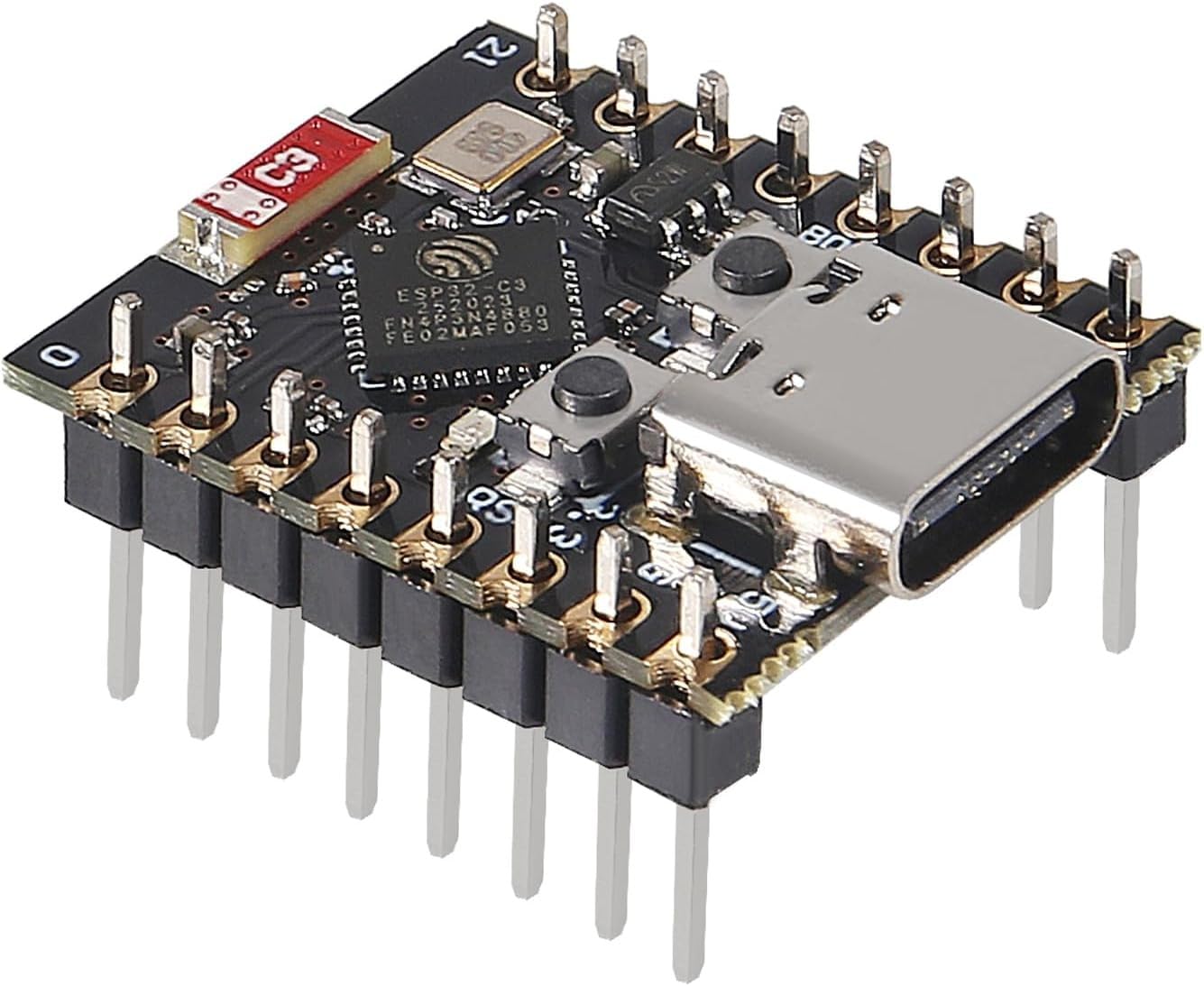

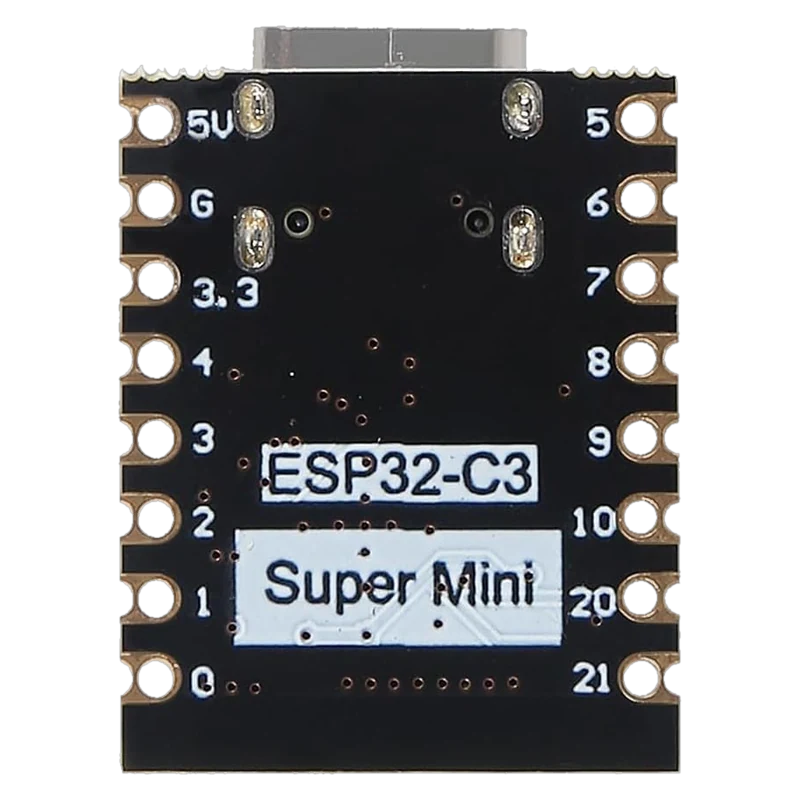

ESP32 Super Mini C3 WiFi Bluetooth Development Board
₹280.00 (Inclusive of GST)
• ESP32-C3 Single-Core 32-bit RISC-V Processor
• CPU Clock Speed: Up to 160 MHz
• Native USB Type-C Programming
• Built-in 2.4 GHz Wi-Fi (802.11 b/g/n)
• Bluetooth 5.0 Low Energy (BLE)
• 4 MB Flash Memory
• Ultra-Compact Super Mini Form Factor
• Supports Arduino IDE, ESP-IDF, PlatformIO, and MicroPython
• Low Power Sleep Modes
• Multiple GPIOs with ADC, PWM, UART, SPI, and I2C Interfaces
The ESP32-C3 Super Mini Development Board is an ultra-compact IoT development board based on Espressif’s ESP32-C3 microcontroller. Featuring a 32-bit RISC-V processor running at up to 160 MHz, it integrates high-speed Wi-Fi and Bluetooth 5.0 Low Energy (BLE) connectivity in a thumb-sized board.
Equipped with a USB Type-C interface for programming and power, the ESP32-C3 Super Mini is perfect for wearable devices, smart home automation, wireless sensors, robotics, and battery-powered IoT applications. Its small footprint makes it ideal for projects where space is limited while still offering excellent wireless performance and low power consumption.
PACKAGE INCLUDES:
- 1 × ESP32-C3 Super Mini Development Board
- 2 × Male Header Pins (Unattached)
| Weight | 5 g |
|---|
• IoT Devices
• Smart Home Automation
• Wireless Sensor Nodes
• BLE Beacons
• Industrial Monitoring
• Smart Agriculture
• Robotics
• Home Security Systems
• Wearable Electronics
• Data Logging
• Remote Monitoring
• MQTT Applications
• Environmental Monitoring
• Battery-Powered Devices
| Parameter | Value |
| Microcontroller | ESP32-C3FH4 |
| CPU | 32-bit RISC-V Single-Core |
| Clock Speed | Up to 160 MHz |
| Flash Memory | 4 MB |
| SRAM | 400 KB |
| Wireless | Wi-Fi 2.4 GHz (802.11 b/g/n) |
| Bluetooth | Bluetooth 5.0 BLE |
| USB Interface | USB Type-C (Native USB Serial/JTAG) |
| Operating Voltage | 3.3V |
| Input Voltage | 5V via USB Type-C |
| GPIO Pins | Up to 22 (Board-accessible pins vary by version) |
| ADC | 12-bit |
| PWM | Supported |
| UART | 2 |
| SPI | 3 |
| I2C | 1 |
| Deep Sleep Current | Approximately 5–43 µA |
| Operating Temperature | -40°C to +85°C |
| Board Size | Approximately 22.5 × 18 mm |
