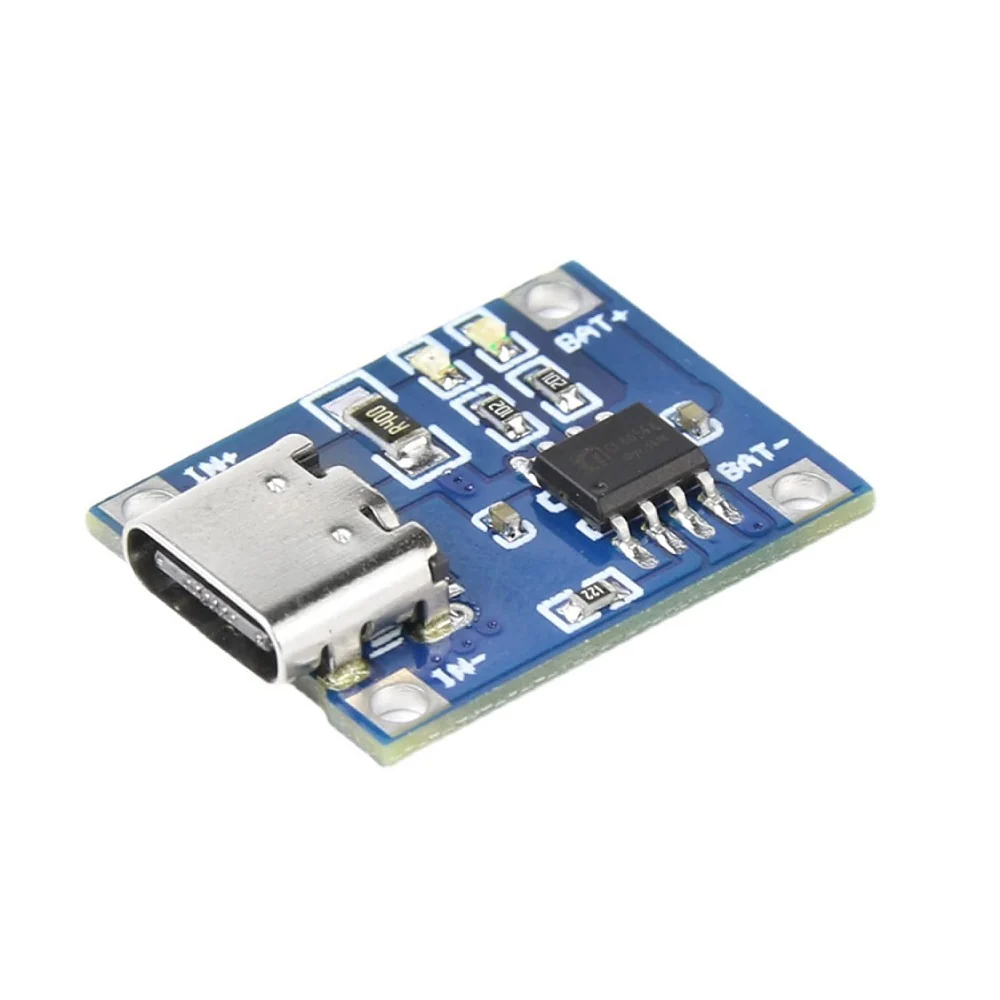

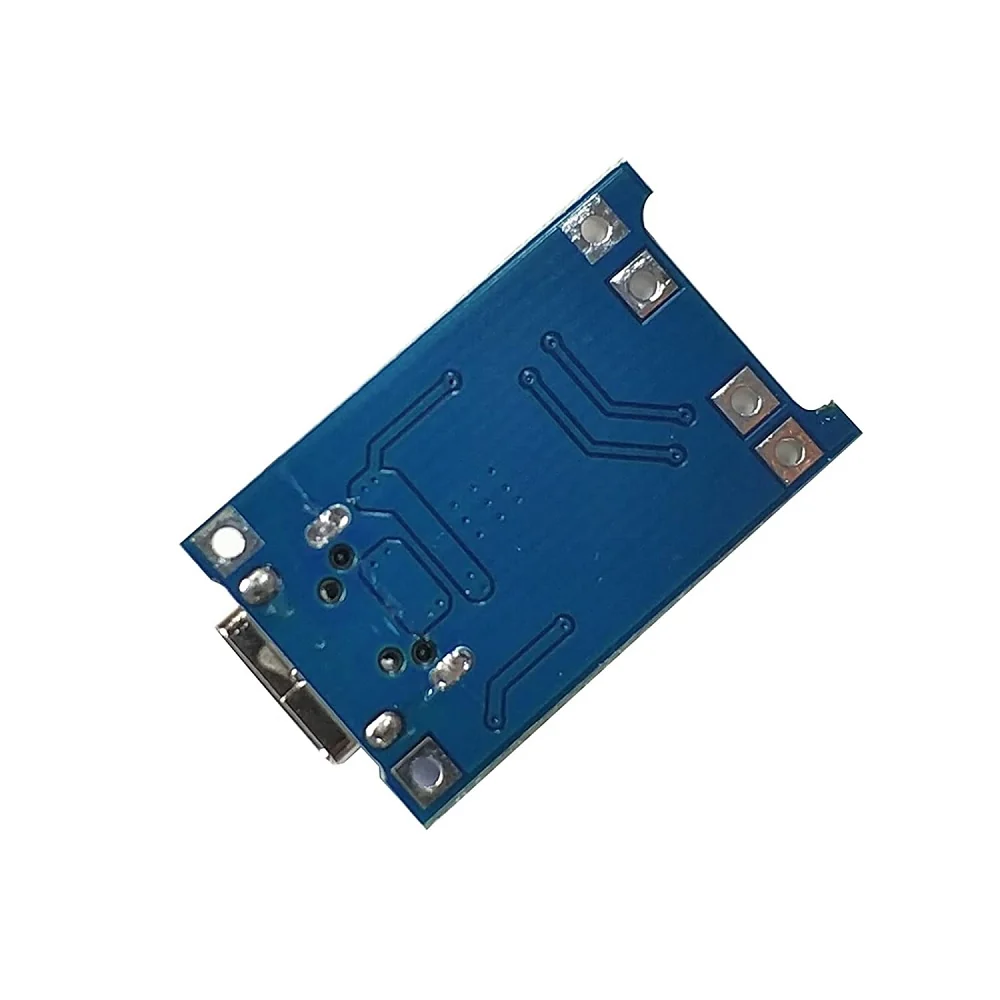

TP4056 Type-C 1A 5V Li-ion Battery Charger Module
₹22.00 (Inclusive of GST)
- USB Type-C 5V charging input
- Designed for single-cell 3.7V Li-ion/LiPo batteries
- 4.2V regulated charging voltage
- Maximum charging current: 1A
- Integrated battery protection
- Overcharge protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
- Charging and charging-complete LED indicators
- Compact PCB design
- Suitable for 18650 and other 3.7V rechargeable Li-ion cells
The TP4056 Type-C 1A 5V Li-ion Battery Charger Module with Protection is a compact charging and protection board designed for charging a single 3.7V nominal Li-ion or LiPo rechargeable battery.
The module uses the TP4056 constant-current/constant-voltage charging controller and accepts a 5V input through the USB Type-C connector. It charges a single Li-ion cell to approximately 4.2V using a CC/CV charging method.
This version includes a battery protection circuit, providing protection against overcharging, over-discharging, excessive current and short circuits. It can be used with 18650 cells and other compatible single-cell rechargeable lithium batteries.
The onboard LEDs provide a convenient indication of the charging status. The module is widely used in DIY electronics, portable power projects, Arduino projects, IoT devices, battery-powered gadgets and rechargeable electronic products.
PACKAGE INCLUDES:
- 1 × TP4056 Type-C 1A Li-ion Battery Charger Module with Protection
| Shipping Weight | 5 g |
|---|
- 18650 battery charging
- Arduino battery projects
- ESP32 battery projects
- ESP8266 projects
- IoT devices
- Portable electronics
- Rechargeable LED lights
- DIY power banks
- Battery-powered sensors
- Wireless sensor nodes
- Robotics projects
- Portable audio projects
- Emergency lighting
- Rechargeable electronic gadgets
- DIY battery packs
- Small embedded systems
| Parameter | Specification |
|---|---|
| Product Type | Li-ion Battery Charger & Protection Module |
| Charging IC | TP4056 |
| Input Connector | USB Type-C |
| Input Voltage | 5V DC |
| Recommended Input Voltage | 5V |
| Charging Method | Constant Current / Constant Voltage (CC/CV) |
| Battery Type | Single-cell Li-ion / LiPo |
| Battery Nominal Voltage | 3.7V |
| Full Charge Voltage | 4.2V |
| Maximum Charging Current | 1A |
| Charging Current | Approximately 1A maximum, depending on board configuration |
| Number of Cells | 1 cell |
| Battery Connection | B+ and B− |
| Load/Output Connection | OUT+ and OUT− |
| Protection | Overcharge, over-discharge, over-current and short circuit |
| Charging Indicator | LED |
| Full Charge Indicator | LED |
| PCB Type | Compact module |
| Input Interface | USB Type-C |
| Mounting | PCB / DIY installation |
| Application | Rechargeable Li-ion battery projects |
