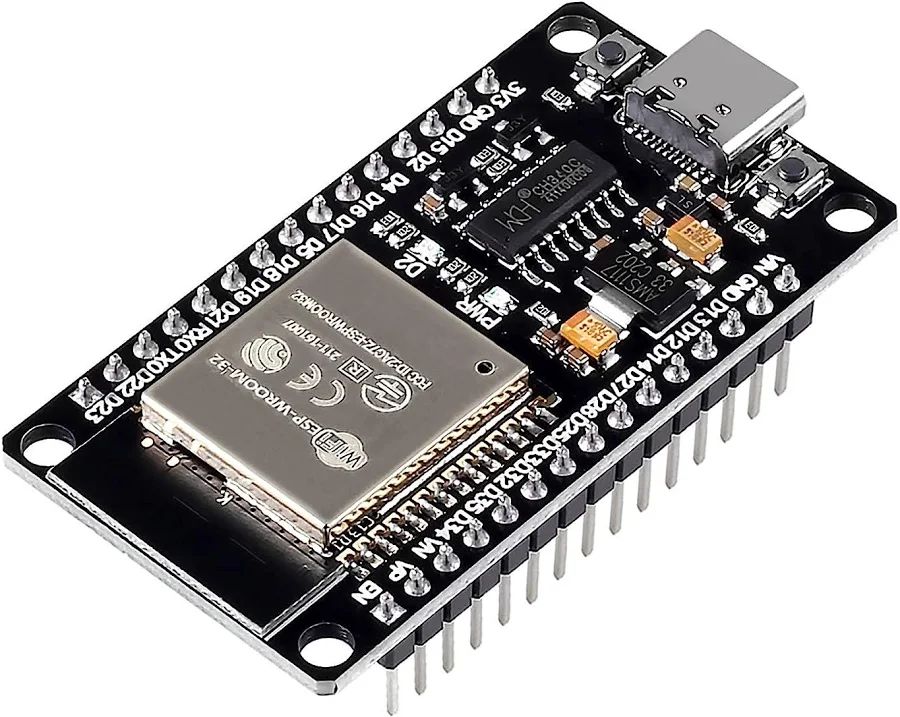

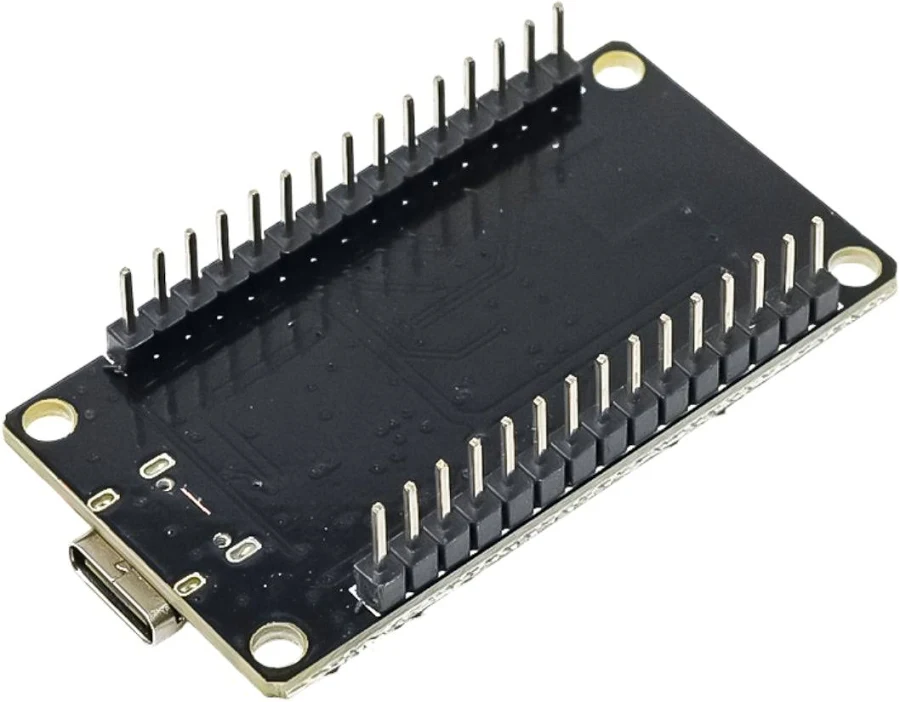

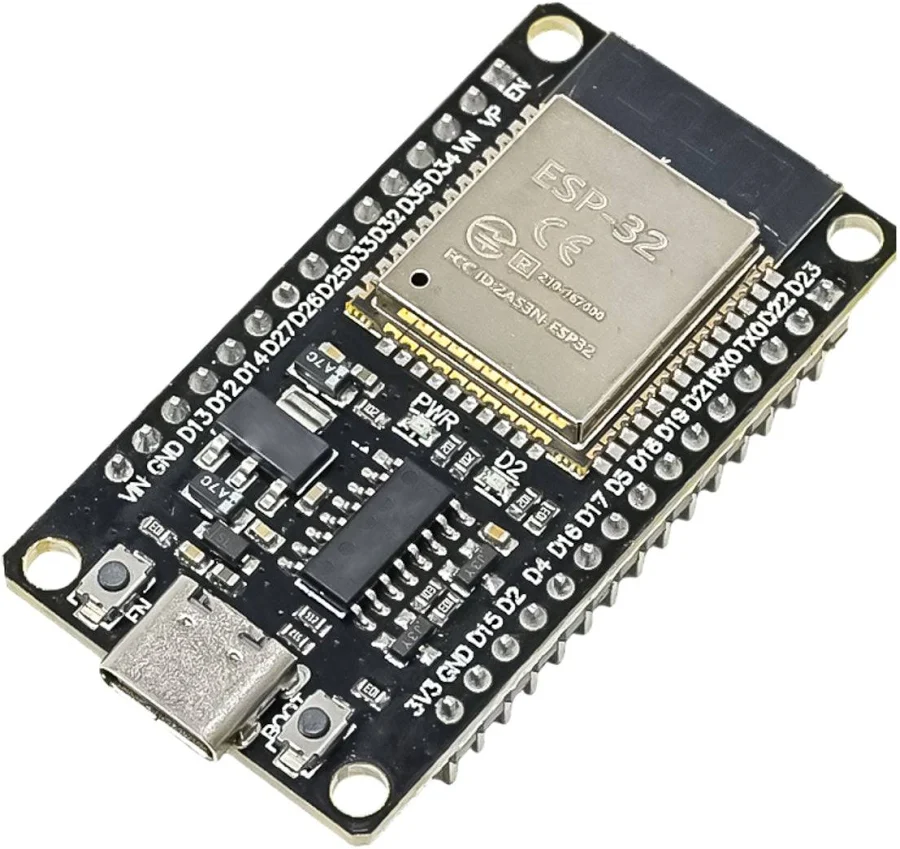

ESP32-WROOM-32 30 Pin Type-C WiFi Board
₹410.00 (Inclusive of GST)
- ESP32-WROOM-32 based development board
- 30-pin configuration
- Dual-core 32-bit processor
- Wi-Fi 802.11 b/g/n
- Bluetooth Classic and BLE
- Up to 240 MHz clock frequency
- USB Type-C programming and power interface
- 3.3V logic
- Multiple GPIO pins
- ADC, DAC, PWM, UART, SPI and I2C interfaces
- Programmable using Arduino IDE, ESP-IDF and PlatformIO
- Suitable for IoT, automation, robotics and embedded applications
The ESP32-WROOM-32 30-Pin Development Board with USB Type-C is a versatile Wi-Fi and Bluetooth development board based on the ESP32-WROOM-32 module. It is designed for IoT, automation, robotics, wireless communication and embedded electronics projects.
The board integrates a powerful 32-bit dual-core Xtensa LX6 processor, 2.4 GHz Wi-Fi and Bluetooth connectivity, along with a wide range of digital and analog interfaces.
The USB Type-C connector provides a convenient interface for programming the ESP32 and supplying power to the development board. The board can be programmed using popular development environments such as Arduino IDE, ESP-IDF and PlatformIO.
With its compact 30-pin layout and extensive GPIO availability, this board is suitable for projects involving sensors, displays, motors, relays, LEDs, wireless communication and IoT devices.
PACKAGE INCLUDES:
- 1 × ESP32-WROOM-32 30-Pin Development Board with USB Type-C
| Shipping Weight | 25 g |
|---|
- IoT projects
- Home automation
- Industrial automation
- Smart agriculture
- Wireless sensor networks
- Remote monitoring
- Robotics
- Smart home devices
- Bluetooth control
- Wi-Fi control
- Web server projects
- MQTT projects
- Blynk projects
- Data logging
- Environmental monitoring
- Motor control
- Relay control
- Smart switches
- GPS tracking
- Wireless instrumentation
- DIY electronics
| Parameter | Specification |
|---|---|
| Product Type | ESP32 Development Board |
| ESP32 Module | ESP32-WROOM-32 |
| Processor | Dual-core 32-bit Xtensa LX6 |
| Maximum Clock Frequency | Up to 240 MHz |
| Wi-Fi | 2.4 GHz 802.11 b/g/n |
| Bluetooth | Bluetooth Classic + BLE |
| Flash Memory | Typically 4 MB |
| SRAM | 520 KB |
| GPIO | Up to 34 GPIOs on ESP32 chip, board availability varies |
| ADC | 12-bit ADC |
| DAC | 2 × 8-bit DAC |
| PWM | LED PWM |
| UART | 3 × UART |
| SPI | 4 × SPI controllers |
| I2C | 2 × I2C interfaces |
| I2S | 2 × I2S interfaces |
| USB Connector | USB Type-C |
| USB-to-Serial | Integrated USB-UART interface |
| Operating Logic | 3.3V |
| Input Power | 5V through USB Type-C / suitable VIN input |
| Operating Voltage | 3.3V |
| Antenna | On-board PCB antenna |
| Board Configuration | 30-pin |
| Programming | USB / UART |
| Development Platform | Arduino IDE, ESP-IDF, PlatformIO |
| Operating Temperature | Depends on ESP32 module and board implementation |
