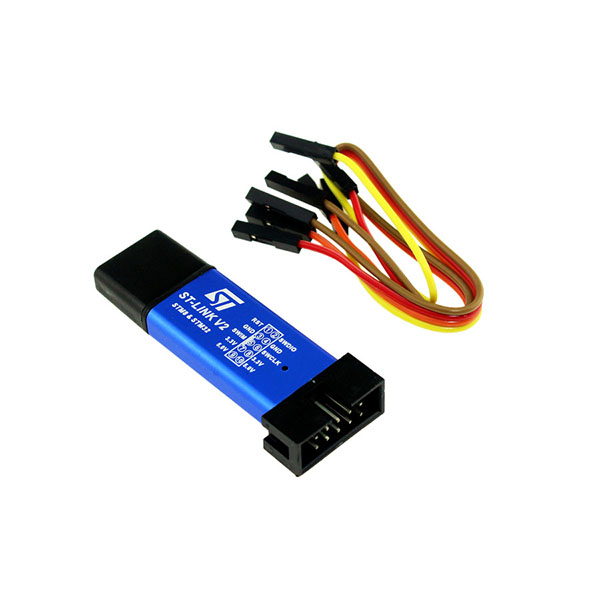

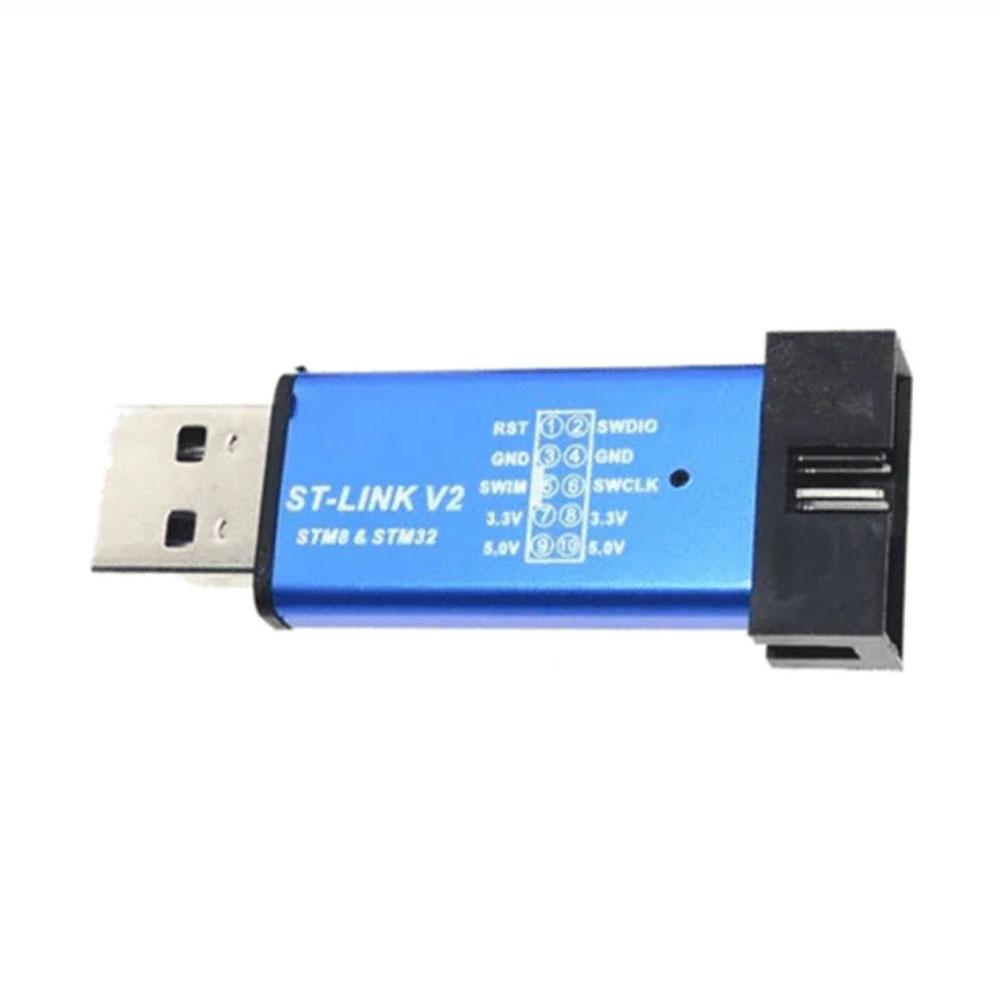

ST-Link V2 Mini USB Programmer & Debugger for STM8/STM32
- USB programmer and debugger for STM8 and STM32 microcontrollers
- Supports SWIM (STM8) and SWD/JTAG (STM32) interfaces
- Compact, low-cost, plug-and-play design
- Compatible with STM32CubeIDE, Keil, IAR, and other popular toolchains
Description
The ST-Link V2 Programmer is a compact USB-based in-circuit programmer and debugger designed for STMicroelectronics’ STM8 and STM32 microcontroller families. It connects to a PC via USB and interfaces with the target microcontroller through SWIM (for STM8) or SWD/JTAG (for STM32), allowing you to flash firmware, single-step debug, set breakpoints, and inspect memory/registers in real time. Its small form factor and simple pin-header connection make it a popular, affordable alternative to the official ST-Link development boards, widely used by students, hobbyists, and professional embedded developers for programming and debugging STM32-based projects, including Blue Pill and Black Pill boards.
PACKAGE INCLUDES:
- 1 x ST-Link V2 Programmer/Debugger
- 1 x USB Cable (in most variants)
Additional information
| Shipping Weight | 20 g |
|---|
Reviews (0)
Applications
- Flashing firmware onto STM32 and STM8 microcontrollers
- In-circuit debugging (breakpoints, register/memory inspection, step execution)
- Programming STM32 "Blue Pill"/"Black Pill" and other STM32 dev boards
- Embedded systems development and firmware testing
- Educational use for learning ARM Cortex-M programming
TECHNICAL SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Supported MCUs | STM8 (all series), STM32 (all series) |
| Interfaces | SWIM (STM8), SWD & JTAG (STM32) |
| Connector | USB Type-A (to PC), 4-pin/20-pin header (to target board) |
| Power Supply | USB powered (5V), can supply 3.3V to target |
| LED Indicators | Power/status LED |
| Software Compatibility | STM32CubeIDE, Keil MDK, IAR EWARM, STM32 ST-LINK Utility, OpenOCD |
| Operating System Support | Windows, Linux, macOS (with drivers/OpenOCD) |
| Debug Features | Flash programming, breakpoints, single-step, memory/register view |
| Enclosure | Plastic casing (varies by variant — bare board or cased) |
| Dimensions | Approx. 50mm x 20mm x 10mm (varies by manufacturer) |
