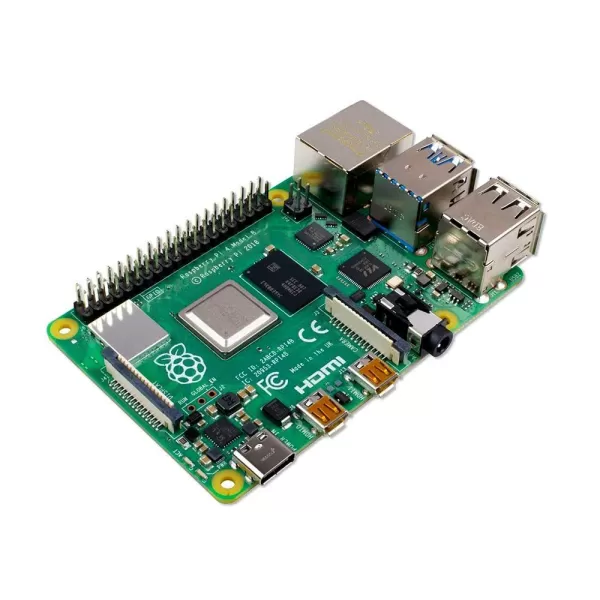

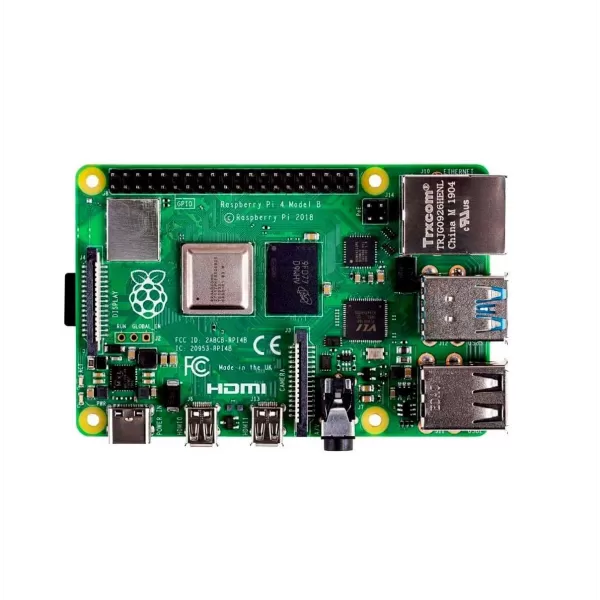

Raspberry PI4 8GB Model

• Power Supply: Power Input: 5V DC via USB-C connector
• RAM: 8GB LPDDR4-3200 SDRAM
• Wi-Fi: 802.11 b/g/n/ac
• Bluetooth: Bluetooth 5.0 with BLE
• Dimensions: 85.6mm × 56.5mm

SKU: PI-016 Categories: , Tag:
Description
  • The Raspberry Pi 4 Model B (8GB) is the latest and most powerful version of the popular Raspberry Pi single-board computer series, offering significantly improved performance and expanded memory capacity for advanced applications.
  • Powered by the Broadcom BCM2711 processor featuring a Quad-Core ARM Cortex-A72 (ARM v8) 64-bit SoC running at 1.5 GHz, it delivers desktop-class processing performance in a compact form factor.
  • Equipped with dual micro-HDMI ports, the board supports dual 4K displays for enhanced visual output and productivity.
  • Features hardware-accelerated video decoding for H.265 (4Kp60), H.264, and MPEG-4 (1080p60) formats, enabling smooth media playback and streaming.
  • Offers improved power efficiency and optimized thermals, ensuring stable performance even under sustained workloads.
  • Upgraded with 8 GB of LPDDR4-3200 SDRAM, providing greater memory headroom for demanding tasks such as AI processing, media servers, and multitasking environments.
  • Includes two USB 3.0 ports for faster data transfer and two USB 2.0 ports for peripheral connectivity.
  • Delivers enhanced networking performance with dual-band 2.4 GHz/5 GHz Wi-Fi, Bluetooth 5.0 + BLE, and Gigabit Ethernet.
  • The 40-pin GPIO header ensures compatibility with existing Raspberry Pi accessories and expansion boards, allowing seamless hardware interfacing.
  • Supports a wide range of HATs (Hardware Attached on Top) for extending functionality — including motor drivers, sensor modules, and custom interface boards.
  • Features a microSD card slot for operating system installation and file storage, along with the ability to boot directly from external USB devices such as SSDs or flash drives for faster I/O performance.
  • Offers optional Power over Ethernet (PoE) support via a dedicated PoE HAT, making it ideal for remote or network-based installations.
  • Designed for efficient cooling, with support for passive and active thermal management using heat sinks or fan-assisted enclosures during high-performance operation.

PACKAGE INCLUDES:
  • 1 x Raspberry Pi 4 Model-B with 8 GB RAM.
Additional information
Weight50 g
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Raspberry PI4 8GB Model”

Your email address will not be published. Required fields are marked *

Applications

• Home automation
• Media center
• Educational projects
• IoT devices
• Robotics

TECHNICAL SPECIFICATIONS
Operating Power 5V 3A DC via GPIO Header,
GPIO Standard 40-pin GPIO Header
Clock Speed 1.5 GHz
Operating Temperature (°C) 0 to +55
Dimensions (LWH) mm 85 x 56 x 19
Weight (g) 52
Shipping Weight 0.055 kg
Shipping Dimensions 10 × 8 × 4 cm
