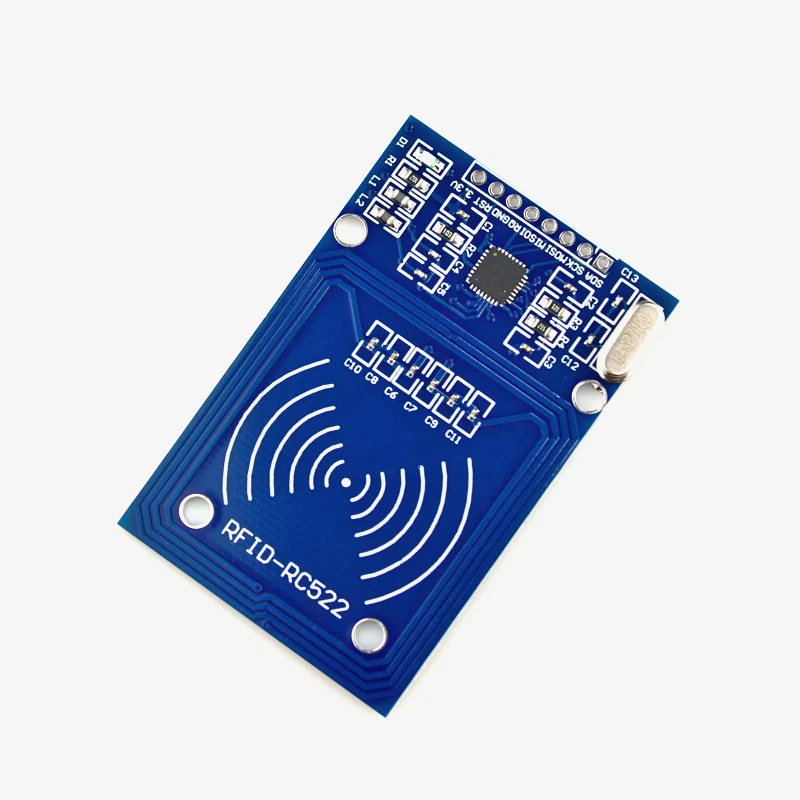

RC522 13.56Mhz RFID Reader
₹88.00 (Inclusive of GST)
- Integrated MF RC522 IC
- Operates on 13.56 MHz contactless communication
- Low-voltage, low-cost, compact RFID reader/writer solution
- Suitable for smart meters and handheld devices
- Advanced modulation/demodulation fully integrated for 13.56 MHz RFID protocols
- Supports ISO/IEC 14443A RFID transponders
- Built-in 14443A frame handling & error detection
- Supports CRYPTO1 encryption for MIFARE authentication
- High-speed RF communication up to 424 kbit/s
- Ideal for user-level product development and embedded applications
- Easy integration into various RFID reader housings
- Read and write support for MIFARE Classic cards/tags
Description
- The RFID-RC522 module uses high-frequency RFID technology to transmit data wirelessly between the reader and RFID cards/tags.
- It integrates an MFRC522 chip and a compact PCB coil that acts as both transmitter and receiver.
- Operates at 13.56 MHz, commonly used for access control, identification, and NFC-type applications.
- Supports both reading and writing to compatible RFID tags (MIFARE Classic 1K/4K).
- Communicates with microcontrollers (Arduino, ESP32, STM32, Raspberry Pi, PIC, AVR, ARM) using the SPI protocol.
- Offers secure communication using authentication protocols and encryption.
- The operating range of the module is typically 0–60 mm, depending on tag type and environment.
- Library support for Arduino, ESP8266/ESP32, and Raspberry Pi makes integration extremely simple.

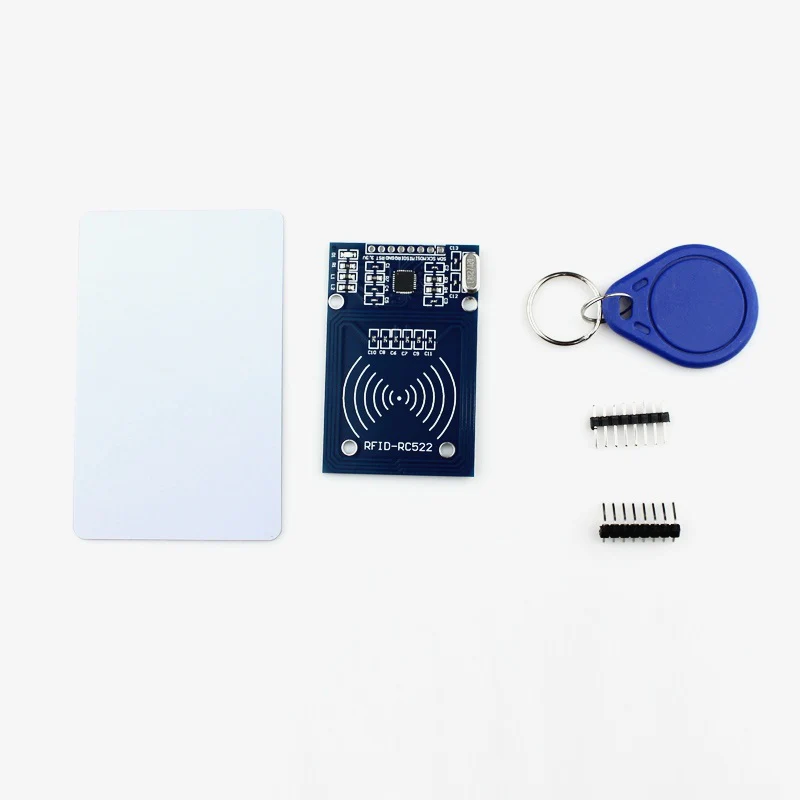

PACKAGE INCLUDES:
- 1 × RC522 RFID Card Reader Module (13.56 MHz)
Additional information
| Weight | 5 g |
|---|
Reviews (0)
Applications
- Access Control Systems
- Inventory Management
- Asset Tracking
- Identification & Authentication
- Payment/Recharge Systems
- Smart Manufacturing
- Healthcare Systems
- Animal Tracking Tags
- Automotive Applications
- Environmental Monitoring Sensors
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Model | MF522-ED |
| Working Current (3.3V) | 13–26 mA |
| Standby Current (3.3V) | 10–13 mA |
| Sleep Current | < 80 µA |
| Peak Current | < 30 mA |
| Frequency | 13.56 MHz |
| Card Reading Distance | 0–60 mm |
| Interface Protocol | SPI |
| Data Transfer Rate | Up to 10 Mbit/s |
| Operating Temperature | –20°C to 80°C |
| PCB Dimensions | 60 × 40 mm |
| Shipping Weight | 0.07 kg |
| Shipping Dimensions | 8 × 5 × 2 cm |
