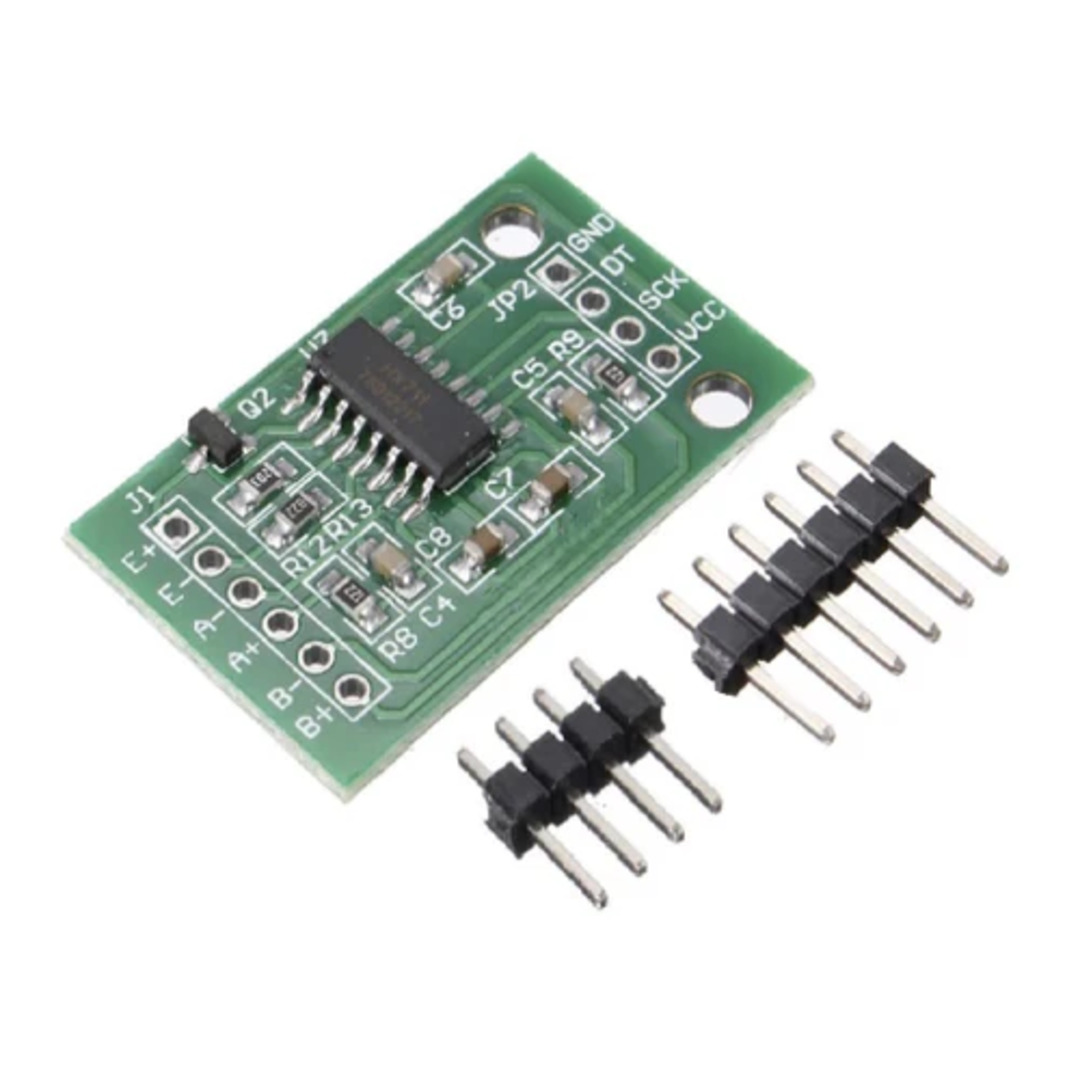

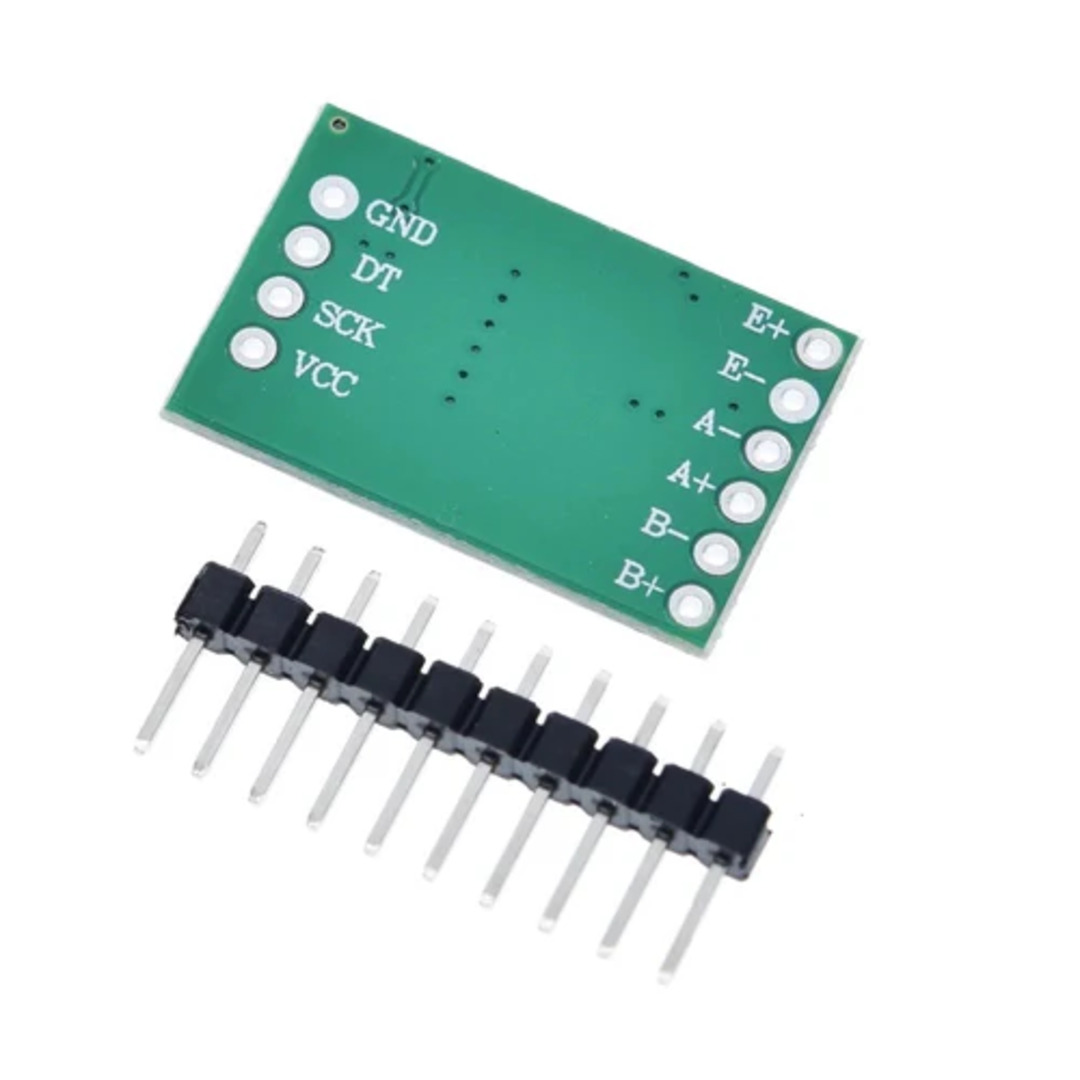

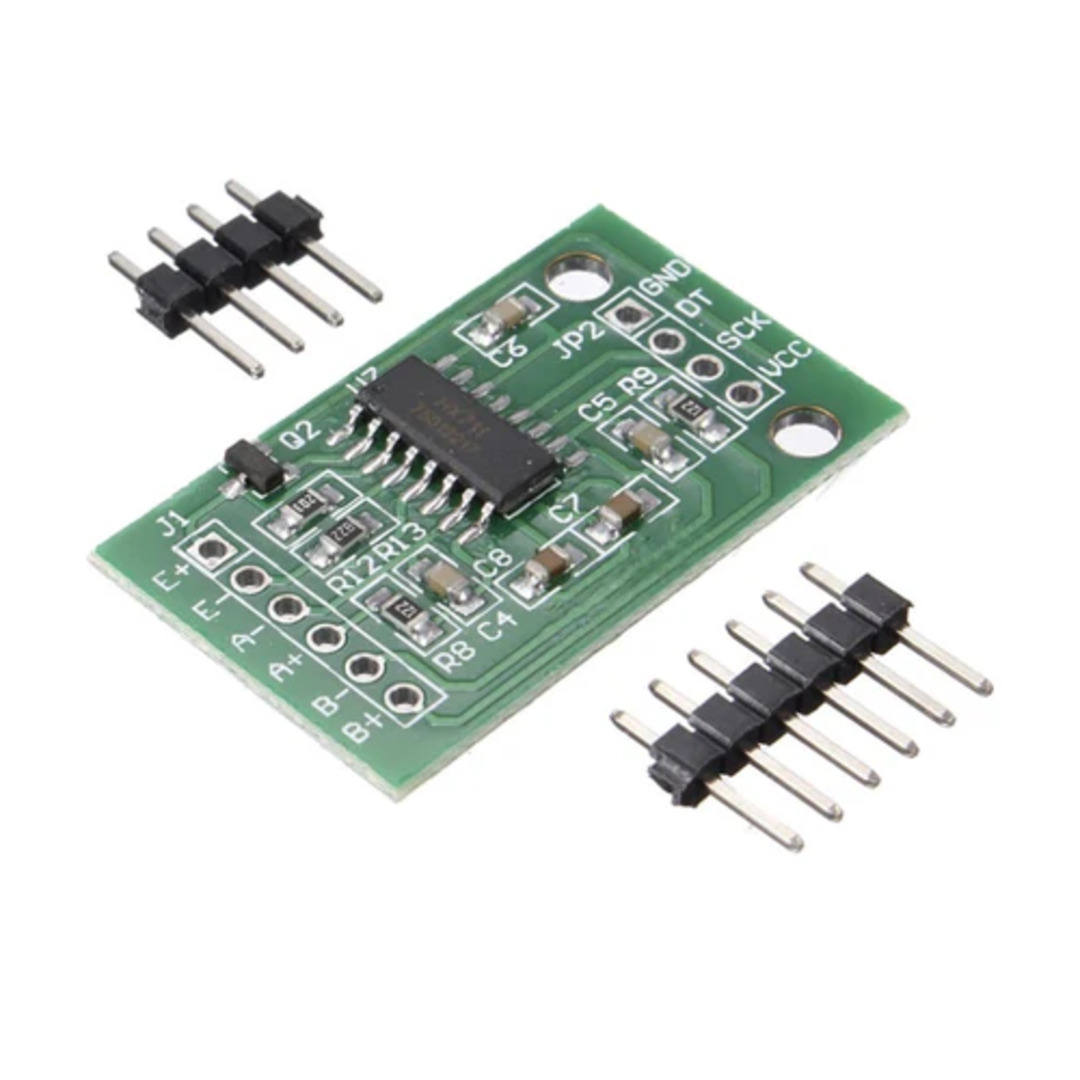

HX711 24-Bit Precision Load Cell Amplifier Module

• Offers 24-bit precision for high-resolution load and pressure measurements.
• Built-in low-noise programmable gain amplifier (PGA) ensures stable readings even from tiny signal changes.
• Two sampling rates:
  • 10 SPS (high-resolution mode)
  • 80 SPS (fast-response mode)
• Simplifies circuit design by eliminating the need for external amplifiers.
• Supports easy interfacing with microcontrollers through a simple 2-wire protocol.
• Analog supply voltage: 2.6–5.5 V
• Digital supply voltage: 2.7–5.5 V
• PGA Gain options: 128, 64, 32
• Auto power-down mode when SCK is inactive.
• Suitable for single-channel or dual-channel load cell systems.

PACKAGE INCLUDES:

• 1 × Dual-Channel 24-bit Precision A/D Weight Sensor Module with HX711
