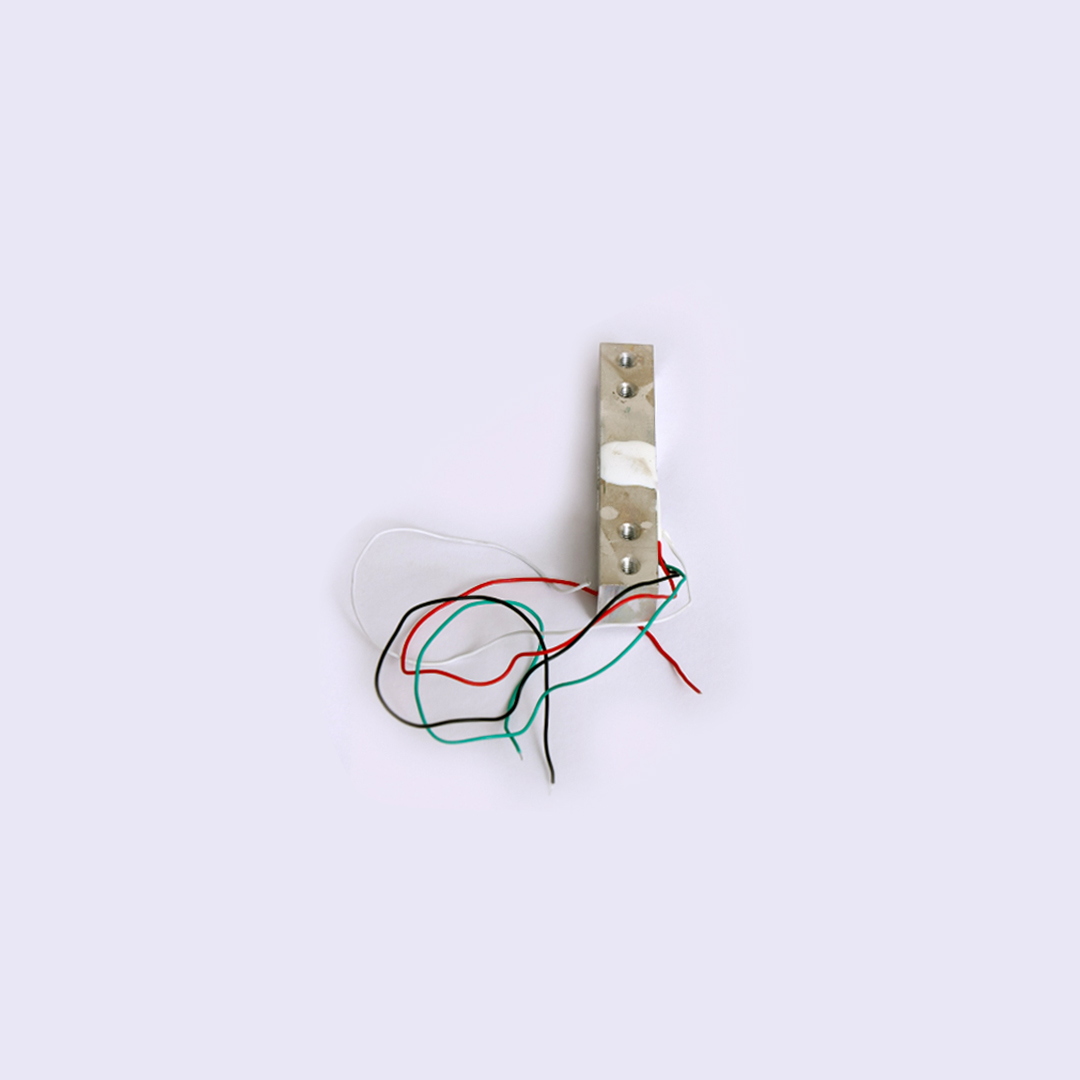

LOAD MINI 5KG
- Weighing Range: 0 ~ 5 kg
- Rated Output: 1.0 ± 0.1 mV/V
- Non-Linearity: ± 0.03 % F.S.
- Input Impedance: 1066 ± 10 % Ω
- Output Impedance: 1000 ± 10 % Ω
- Insulation Resistance: ≥ 2000 MΩ
Description

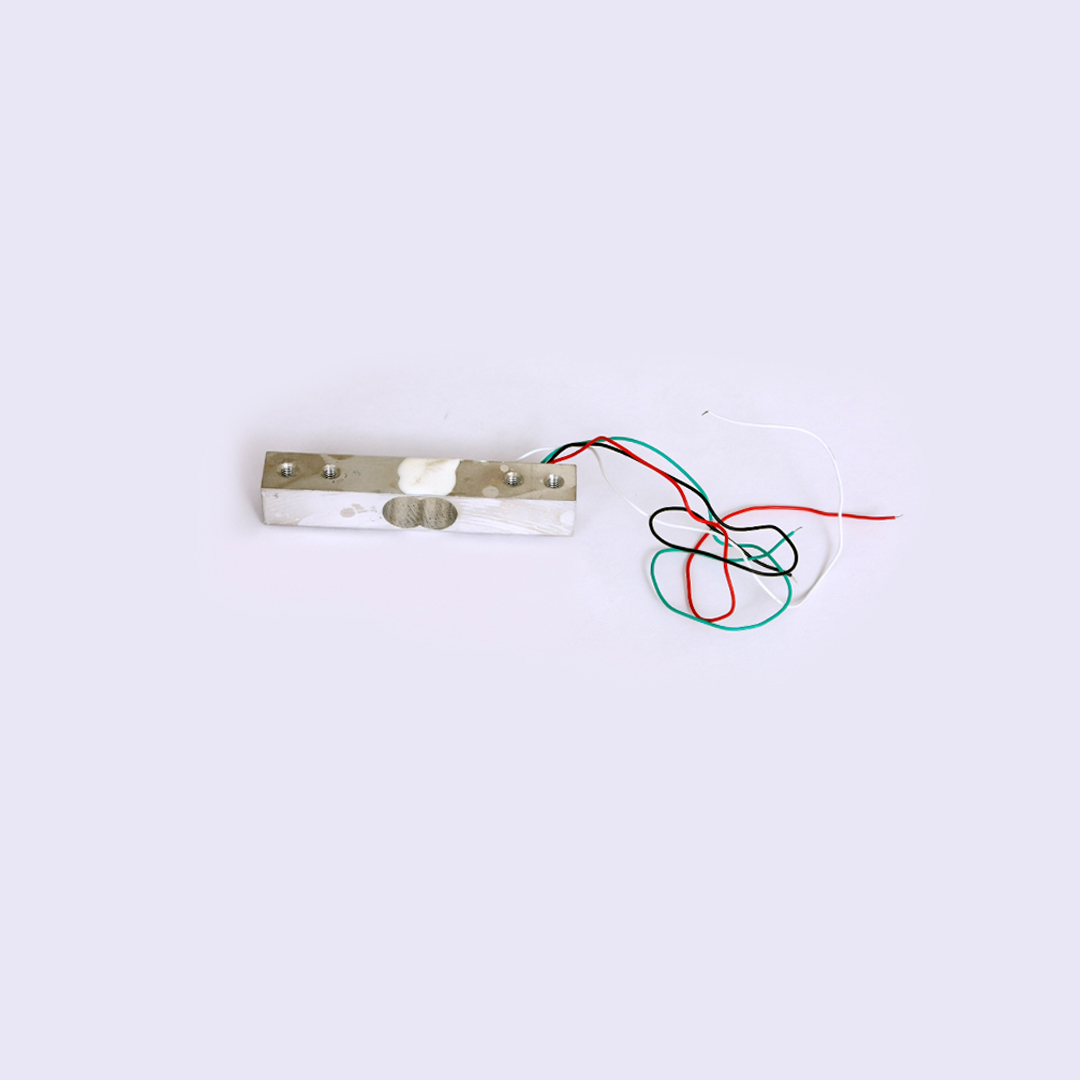

- The LOAD-MINI-5KG is a compact aluminum strain-gauge load cell designed for precise small-range weight measurement.
- Based on the YZC-131 architecture, it uses a single-point cantilever beam configuration to convert mechanical load into electrical output.
- Its 5 kg capacity suits applications such as kitchen or tabletop scales, force measurement setups, and IoT-based weighing systems.
- With excellent linearity, repeatability, and stability, it ensures reliable data even under fluctuating load conditions.
- Compact size and lightweight aluminum build make it ideal for embedded and portable weighing applications.
PACKAGE INCLUDES:
- 1 × Weighing Load Cell Sensor 5 kg for Electronic Scale
Reviews (0)
Application
- Digital and kitchen scales
- IoT and embedded weight measurement
- Robotics and automation
- Industrial batching and process control
- DIY electronics and maker projects
- Educational demonstrations
- Agricultural and laboratory weighing
TECHNICAL SPECIFICATIONS
| Parameter | Typical Value |
| Model | YZC-131 |
| Material | Aluminum Alloy |
| Weighing Range | 0 ~ 5 kg |
| Rated Output | 1.0 ± 0.1 mV/V |
| Non-Linearity | ± 0.03 % F.S |
| Hysteresis | ± 0.03 % F.S |
| Repeatability | ± 0.03 % F.S |
| Creep (5 min) | ± 0.05 % F.S |
| Zero Balance | ± 0.1 mV/V |
| Input Impedance | 1066 ± 10 % Ω |
| Output Impedance | 1000 ± 10 % Ω |
| Insulation Resistance | ≥ 2000 MΩ |
| Cable Length | ~18 cm |
| Operating Temperature | –20 °C ~ +65 °C |
| Dimensions (L × W × H) | 80 × 12.7 × 12.7 mm |
| Mounting Hole Distance | ~55 mm |
| Weight | ≈ 26 g |
| Shipping Weight | 0.08 kg |
| Shipping Dimensions | 12 × 5 × 4 cm |
