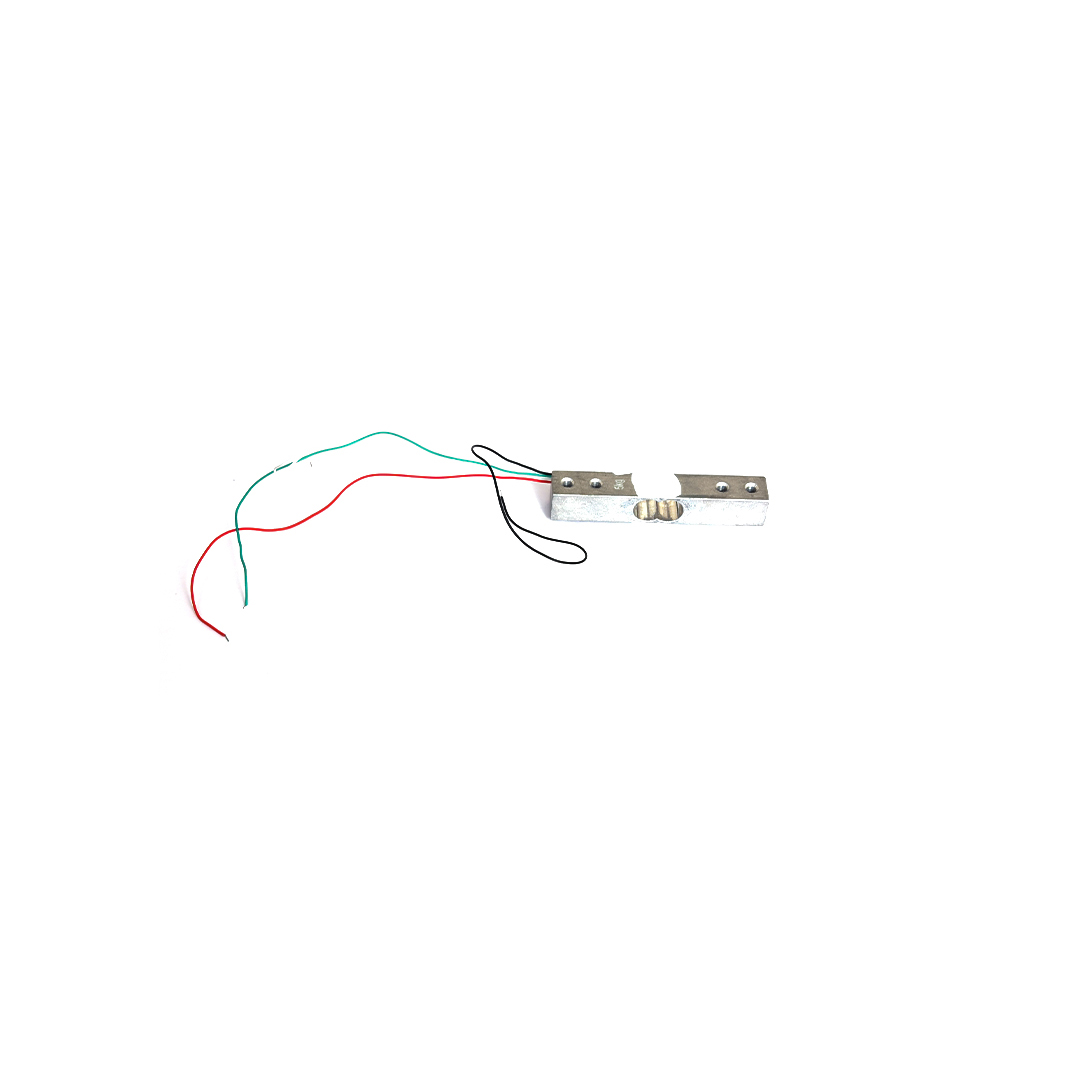

LOAD MINI 3KG
- Weighing Range: 0 ~ 3 kg
- Rated Output: 1.0 ± 0.1 mV/V
- Nonlinear Output: ± 0.03 % F.S.
- Input Impedance: 1066 ± 10 % Ω
- Output Impedance: 1000 ± 10 % Ω
- Insulation Resistance: ≥ 2000 MΩ
- Material: Aluminum alloy
- Operating Temperature: –20 °C to +65 °C
- High repeatability, low hysteresis, and stable performance
Description

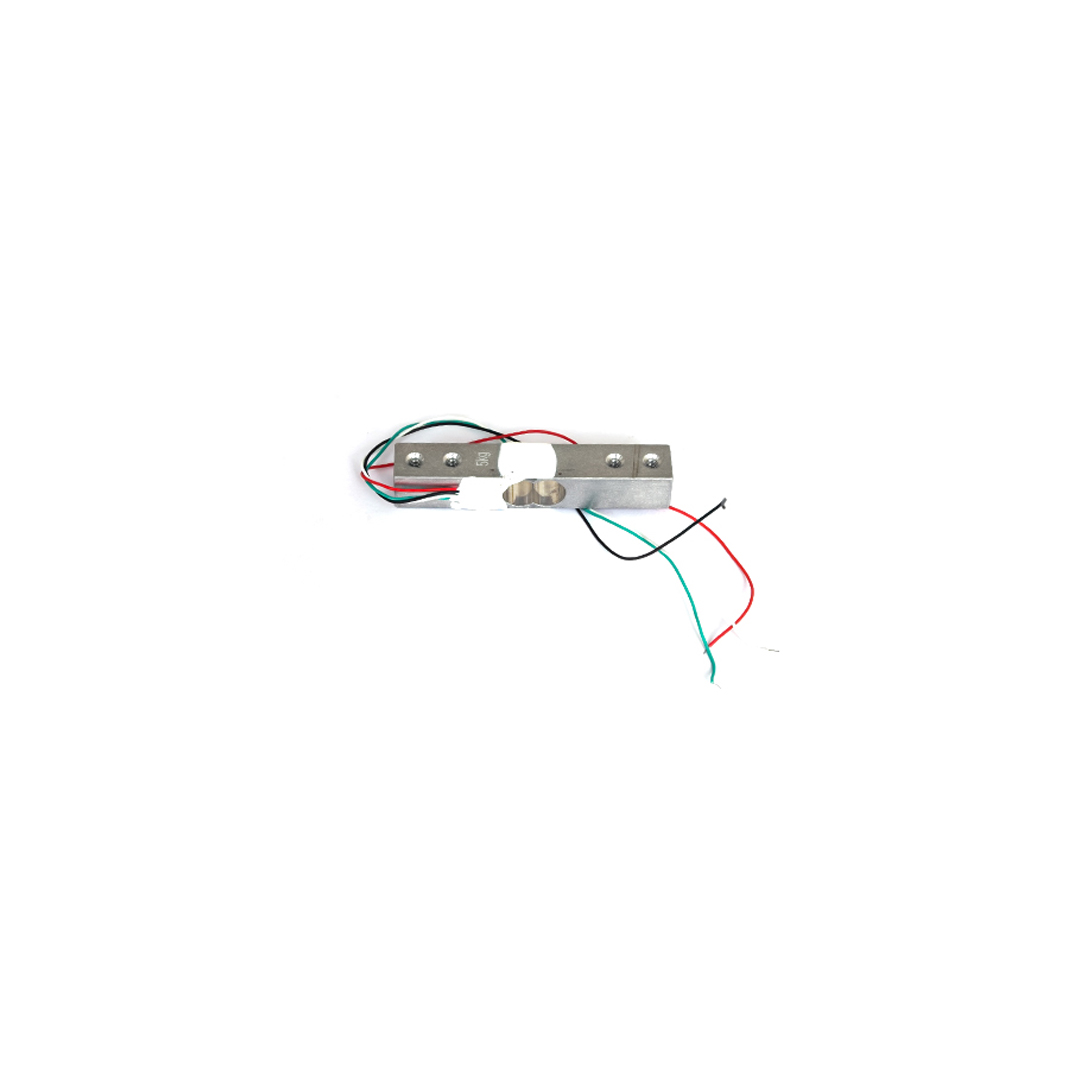

- The LOAD-MINI-3KG is a compact, high-precision aluminum strain-gauge load cell rated for up to 3 kg.
- Designed for digital weighing scales, IoT measurement systems, and educational applications, it converts applied force into a proportional millivolt signal.
- With its aluminum alloy body, it provides both light weight and mechanical strength, ensuring reliability in small-scale systems.
- When paired with an HX711 amplifier, the sensor interfaces easily with Arduino, ESP32, or Raspberry Pi for real-time digital readings.
- Excellent linearity, repeatability, and low creep make it suitable for prototype and production environments.
PACKAGE INCLUDES:
- 1 × Weighing Load Cell Sensor (3Kg) for Electronic Scale
Reviews (0)
Application
- Digital and Electronic Weighing Scales
- IoT Smart Weighing Systems
- Kitchen and Postal Scales
- Industrial Measurement and Automation
- Robotics and Embedded Weight Sensing
- Prototyping and Research Projects
- Educational Demonstrations
- Fitness and Force Measurement Systems
- Livestock and Agriculture Scales
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Weighing Range | 0 ~ 3 kg |
| Rated Output | 1.0 ± 0.1 mV/V |
| Nonlinear Output | ± 0.03 % F.S. |
| Input Impedance | 1066 ± 10 % Ω |
| Output Impedance | 1000 ± 10 % Ω |
| Insulation Resistance | ≥ 2000 MΩ |
| Material | Aluminum alloy |
| Operating Temperature | –20 °C to +65 °C |
| High repeatability, low hysteresis, and stable performance | |
