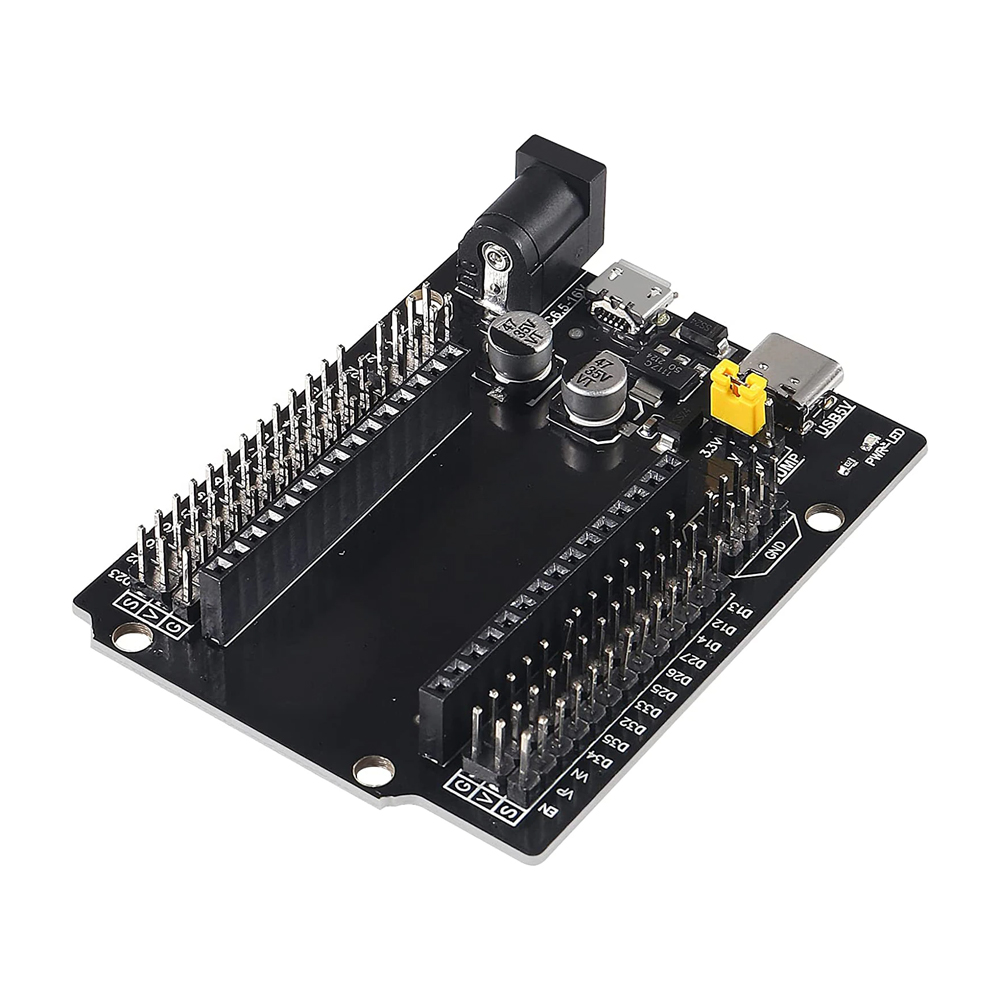

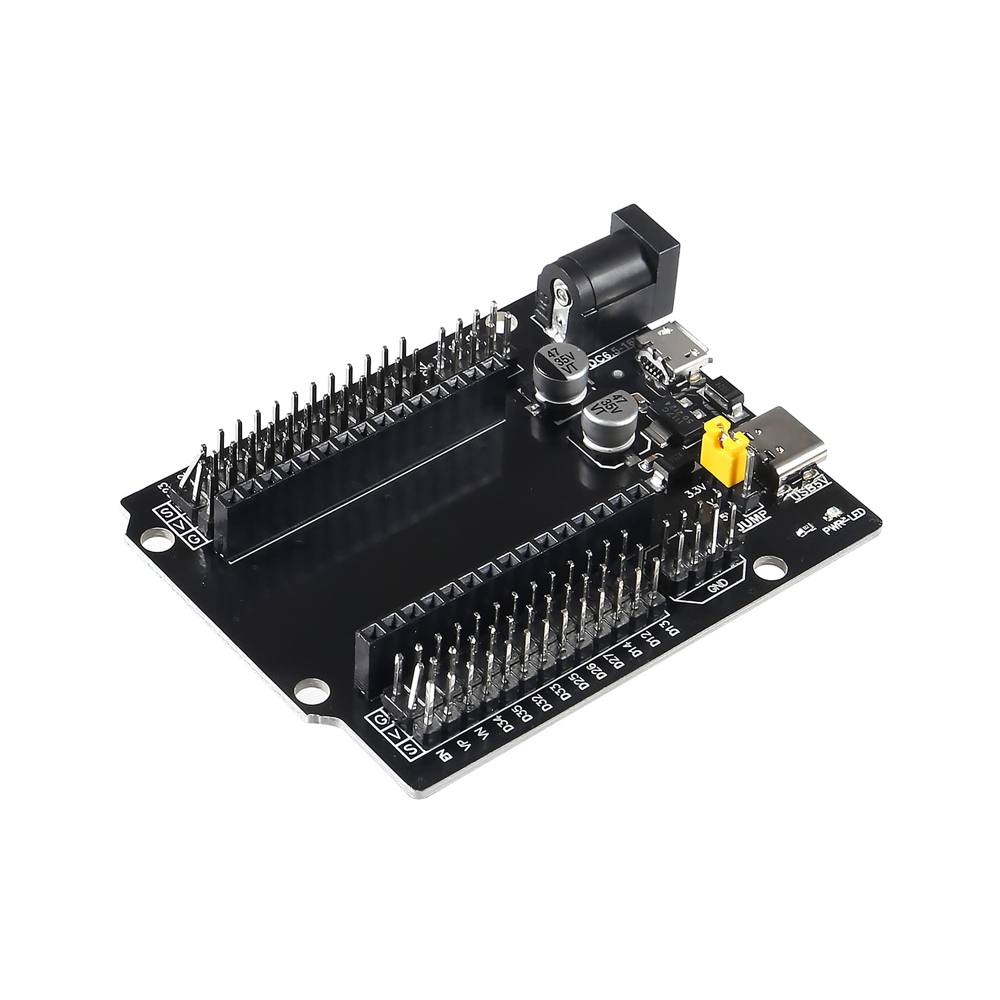

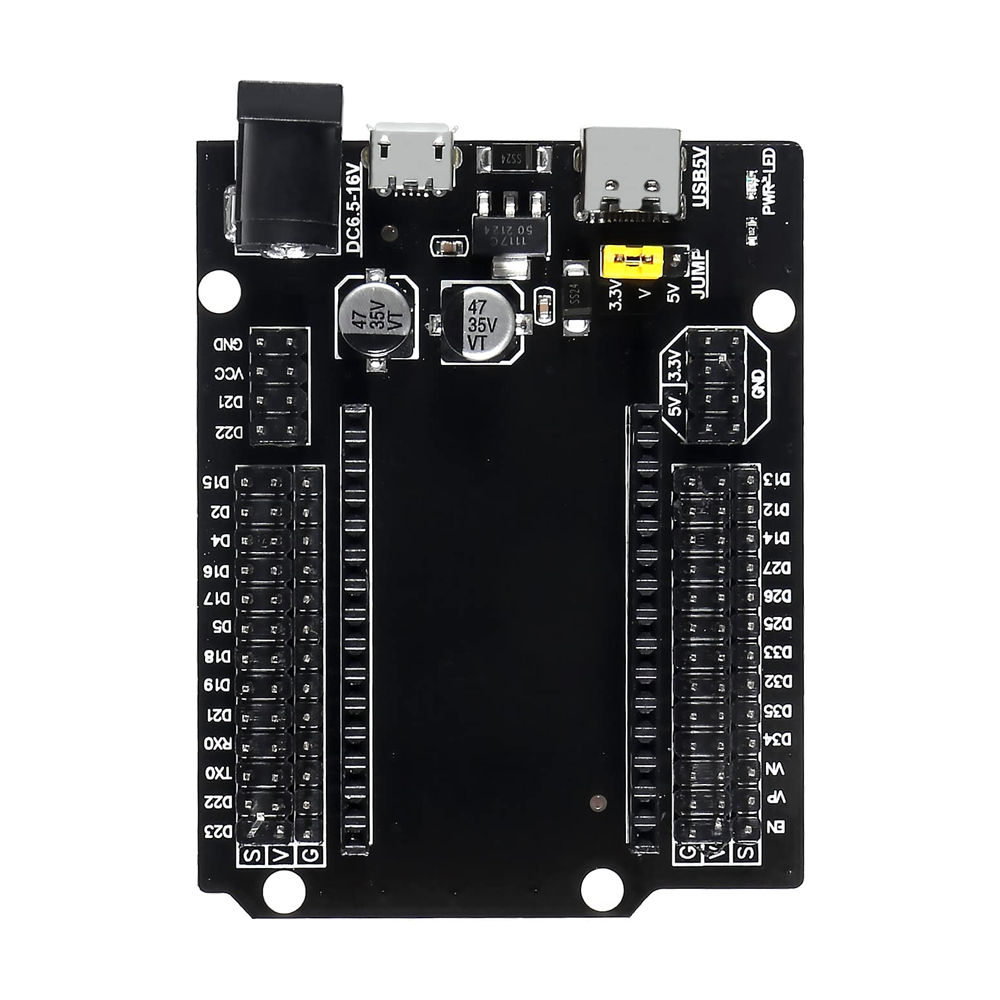

ESP32 30 Pin Base Board / Breakout Adapter Board for ESP32 DevKit
- Breakout base board for 30-pin ESP32 DevKit modules
- Extends GPIO pins to both sides for easy breadboard access
- Simple, low-cost prototyping accessory
- Compatible with ESP32-WROOM-32 based dev boards
Description
The ESP32 30 Pin Base Board is a simple prototyping adapter designed to hold your 30-pin ESP32 development board (such as ESP32-DevKitC / ESP32-WROOM-32 dev boards) securely while breaking out all GPIO pins to a breadboard-friendly pin header layout on either side. Since the ESP32 dev board itself is wide enough to straddle a standard breadboard and cover both rows of connection points, this base board solves that problem by spacing out the pins so you can still access every pin with jumper wires while prototyping. It’s an essential low-cost accessory for makers, students, and hobbyists building IoT projects, robotics, and embedded systems with the ESP32.
PACKAGE INCLUDES:
- 1 x ESP32 30 Pin Base Board (ESP32 module sold separately, unless bundled)
Additional information
| Shipping Weight | 15 g |
|---|
Reviews (0)
Applications
- Prototyping ESP32-based IoT and robotics projects on a breadboard
- Educational and DIY electronics projects using ESP32 DevKit boards
- Providing easy, accessible GPIO pin breakout while using a breadboard
- Quick mounting/dismounting of ESP32 dev boards during testing
- Sensor interfacing and rapid circuit prototyping with ESP32
TECHNICAL SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Compatibility | 30-pin ESP32 DevKit boards (ESP32-WROOM-32 based dev boards) |
| Pin Count | 30 pins (15 pins per side) |
| Board Material | FR4 PCB (or high-quality plastic/PCB base, depending on variant) |
| Pin Spacing | 2.54mm (0.1") standard pitch |
| Mounting Type | Socket/header mount for ESP32 dev board |
| Board Function | Passive breakout — no active components |
| Color | Black (typical; may vary) |
| Dimensions | Approx. 55mm x 28mm (varies slightly by manufacturer) |
| Use With | Breadboard, jumper wires |
