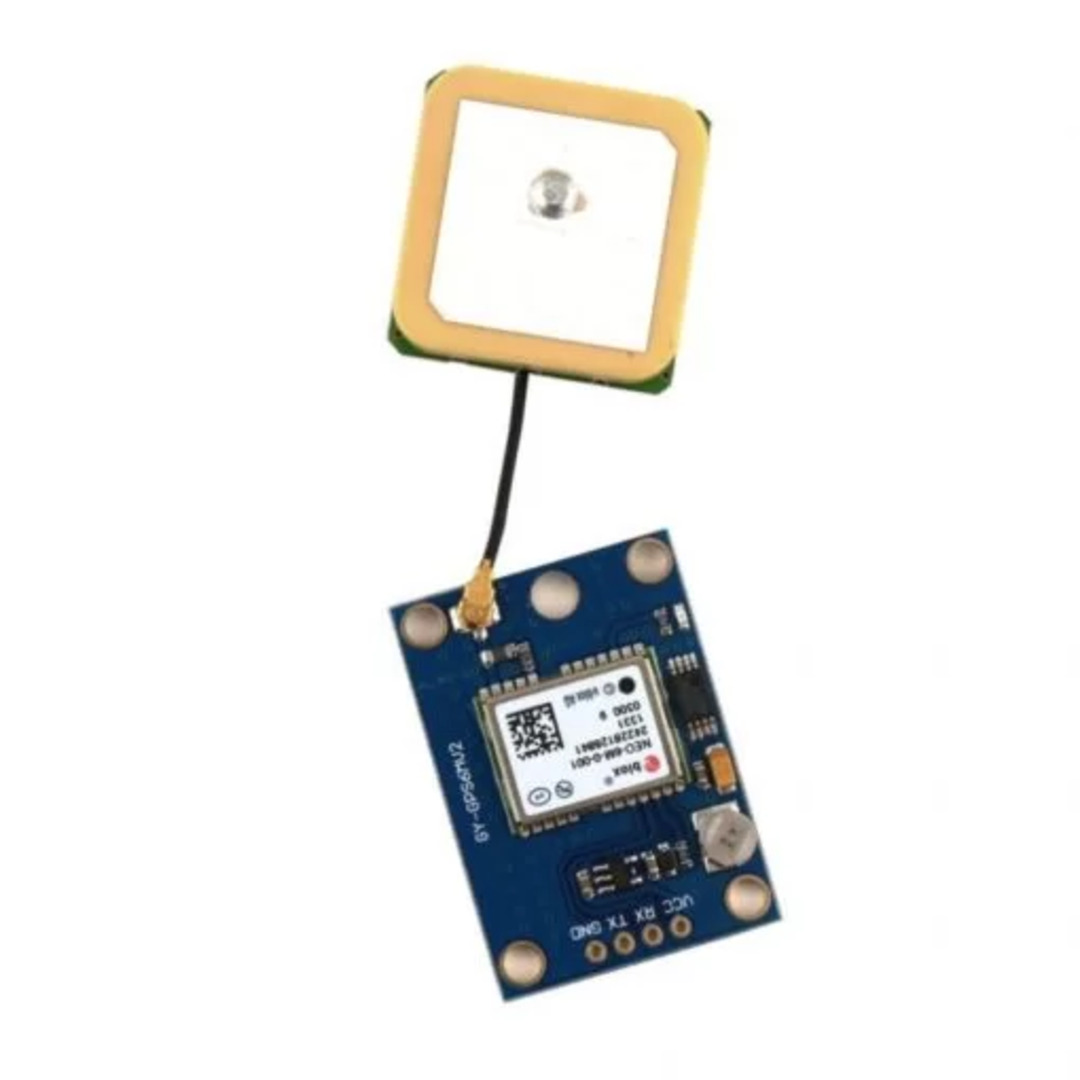

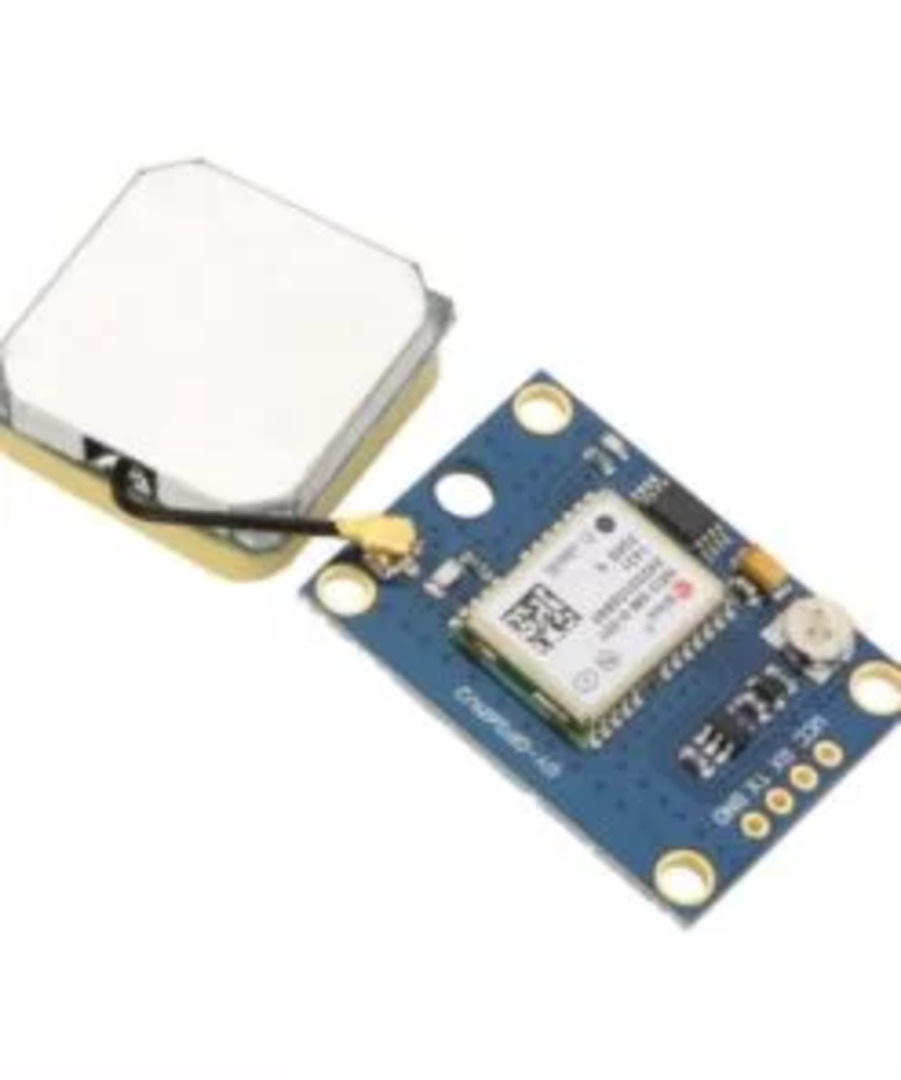

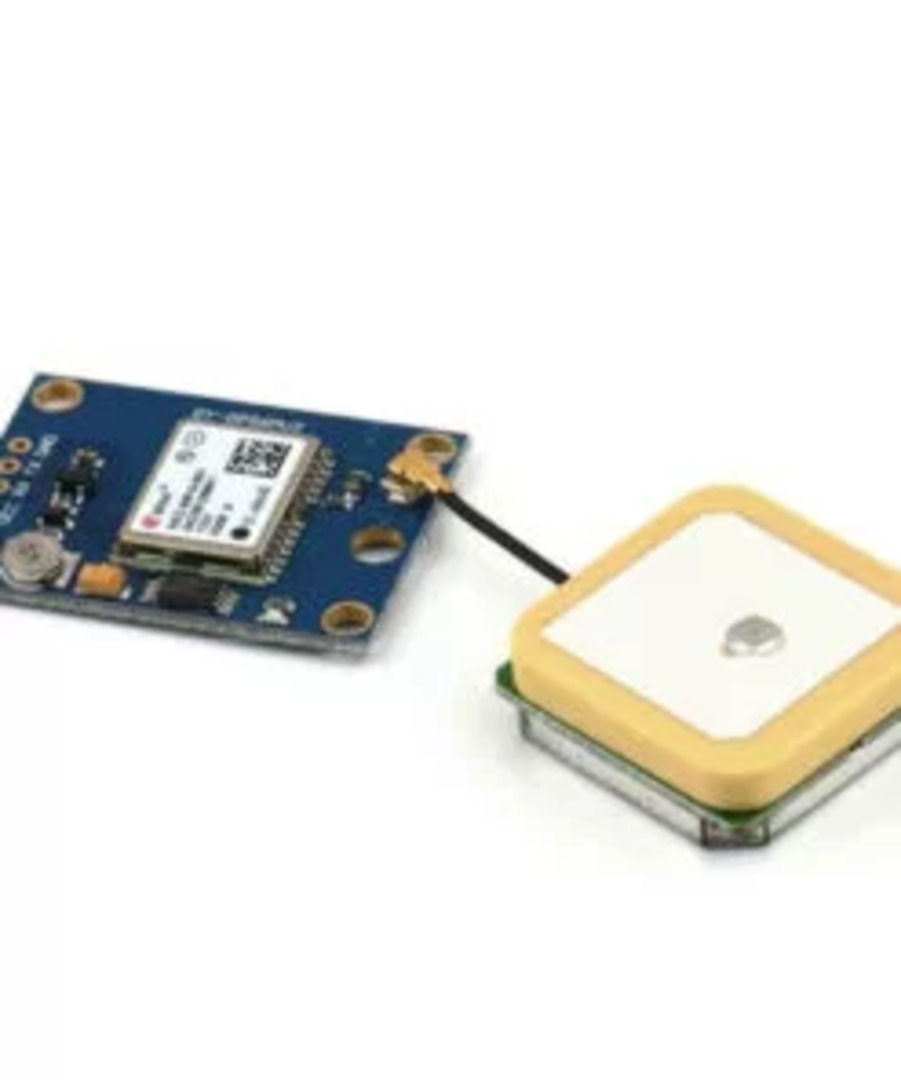

GPS NEO 6M Module
₹337.00 (Inclusive of GST)
- Receiver Type: GPS L1 frequency (1575.42 MHz)
- Channels: Up to 22 tracking channels
- Position Accuracy: Typically around 2.5 meters (CEP)
- Update Rate: Up to 5 Hz (position updates per second)
- Power Supply: 3.3V to 5V
- Communication Interface: UART (TTL serial communication)
- Antenna: External passive or active GPS antenna required
- Operating Temperature: -40°C to +85°C
Description
- Provides high-accuracy positioning with up to 2.5 meters CEP under optimal conditions.
- Supports multiple satellite constellations (GPS, GLONASS, and BeiDou) for improved coverage and reliability.
- Fast acquisition and tracking enable rapid cold, warm, and hot starts, even in low-signal environments.
- UART interface allows simple connection to microcontrollers, SBCs, and embedded systems.
- Energy-efficient design suited for portable or battery-powered projects.
- Outputs standard NMEA sentences (GGA, RMC, GSV, etc.) compatible with most navigation software.
- Some versions include an onboard backup battery, preserving almanac data for faster restarts.
- Compact and lightweight, suitable for drones, handheld devices, and small enclosures.
- Ensure proper antenna placement to maintain optimal GPS signal reception.
- Environmental factors (buildings, trees, weather) can affect performance and fix time.
PACKAGE INCLUDES:
- 1 × NEO-6M GPS Board
- 1 × Detachable Antenna
Additional information
| Weight | 20 g |
|---|
Reviews (0)
Application
- Vehicle Tracking & Navigation
- Outdoor and Sports GPS Devices
- Asset & Fleet Tracking
- Precision Agriculture
- GIS (Geographic Information Systems)
- Environmental & Remote Monitoring
- Emergency and Disaster Response
- Time Synchronization Systems
- IoT and Embedded Systems
- Drone & UAV Navigation
- Marine and Personal Navigation
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Receiver Type | GPS L1 frequency (1575.42 MHz) |
| Channels | Up to 22 tracking channels |
| Position Accuracy | Typically around 2.5 meters (CEP) |
| Update Rate | Up to 5 Hz (position updates per second) |
| Power Supply | 3.3V to 5V |
| Communication Interface | UART (TTL serial communication) |
| Antenna | External passive or active GPS antenna required |
| Operating Temperature | -40°C to +85°C |
Reviews
There are no reviews yet.
