TP4056 Micro USB 1A Li-ion Battery Charger
₹22.00 (Inclusive of GST)
- TP4056 lithium battery charging IC
- Micro-USB Type-B input
- 5V DC charging input
- 1A maximum/default charging current
- Designed for single-cell 3.7V Li-ion/LiPo batteries
- 4.2V full-charge voltage
- Constant-current/constant-voltage charging
- Built-in battery protection
- Overcharge protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
- Charging and full-charge LED indicators
- Suitable for 18650 and other single-cell Li-ion batteries

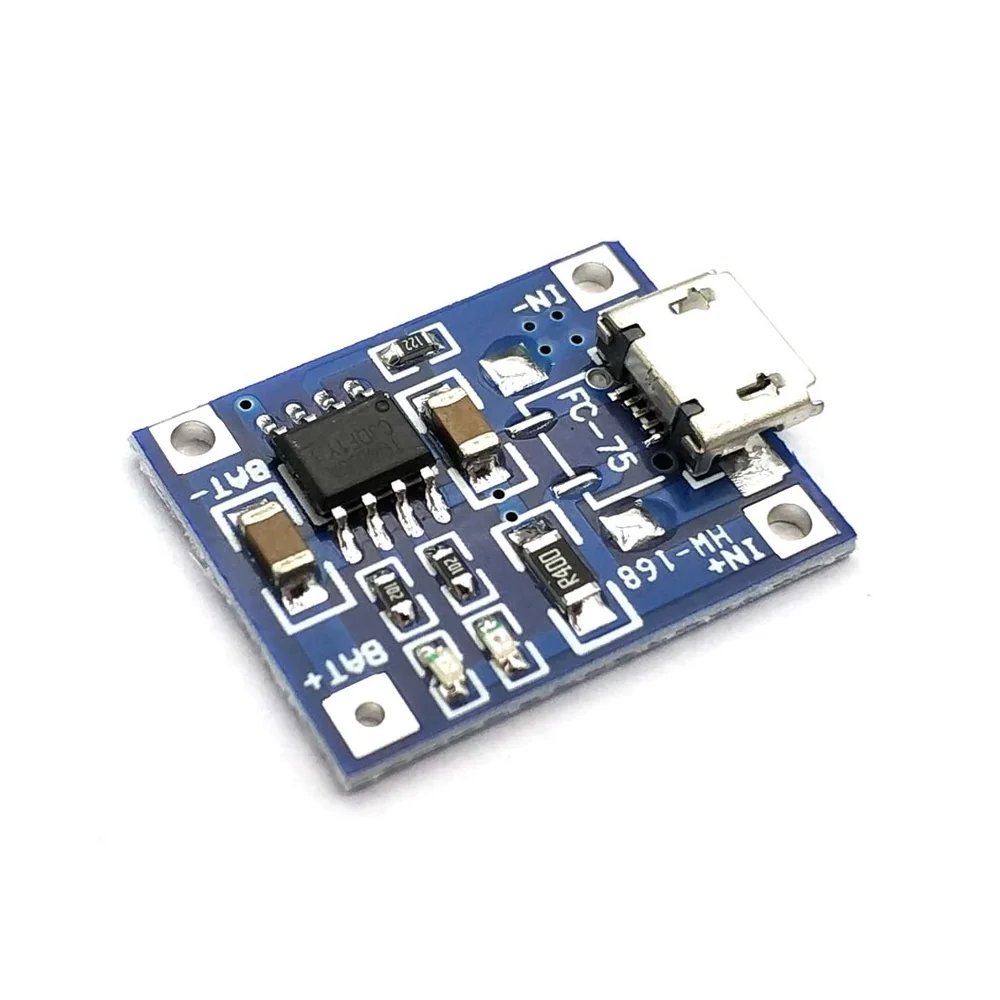

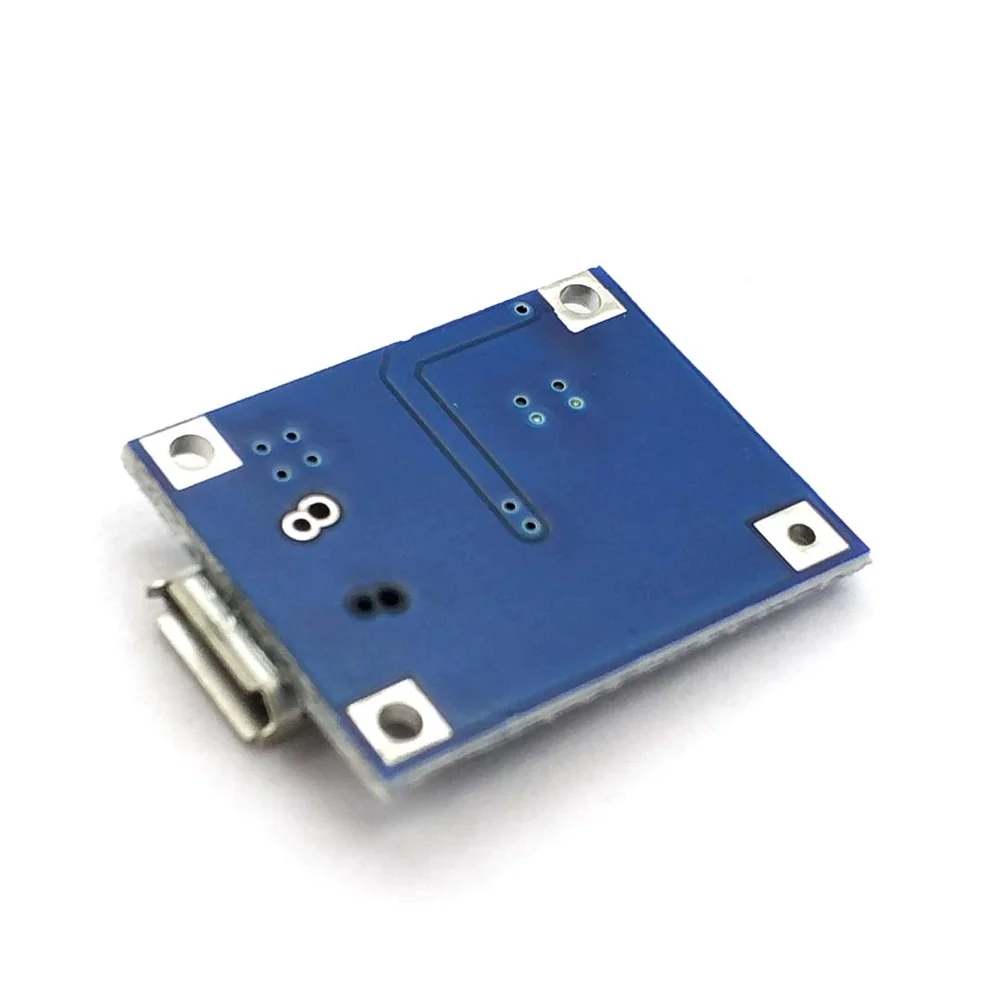

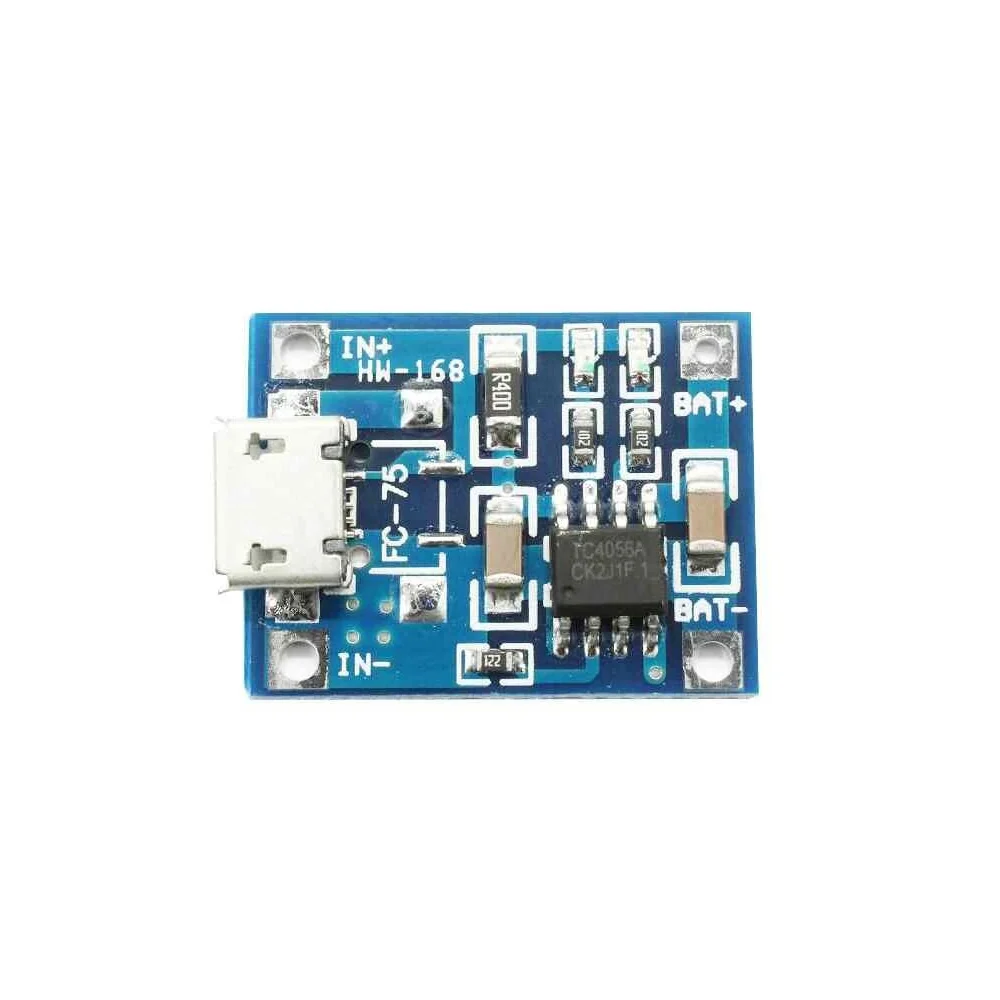

The TP4056 Type-B 1A 5V Li-ion Battery Charger Module with Protection is a compact charging and protection board designed for safely charging a single 3.7V nominal Li-ion or LiPo rechargeable battery.
The module uses the TP4056 linear battery charger IC and accepts a nominal 5V DC input through its Micro-USB Type-B connector. It charges the battery using a constant-current/constant-voltage (CC/CV) charging process and regulates the final charging voltage to approximately 4.2V.
The protection version also incorporates a battery protection circuit, commonly based on a DW01A protection IC and dual MOSFET, providing protection against over-discharge, over-current and short-circuit conditions.
It is suitable for 18650 cells, Li-ion batteries, LiPo cells, DIY power banks, Arduino projects, IoT devices, portable electronics and rechargeable battery-powered projects.
PACKAGE INCLUDES:
- 1 × TP4056 Type-B 1A Li-ion Battery Charger Module with Protection
Battery and USB cable are not included.
| Shipping Weight | 5 g |
|---|
- 18650 battery charging
- DIY power banks
- Arduino projects
- ESP32 projects
- ESP8266 projects
- IoT devices
- Portable electronics
- Rechargeable LED lights
- Wireless sensor nodes
- Robotics projects
- Portable speakers
- Battery-powered sensors
- Embedded electronics
- DIY rechargeable gadgets
| Parameter | Specification |
|---|---|
| Product Type | Li-ion Battery Charger & Protection Module |
| Charger IC | TP4056 |
| Input Connector | Micro-USB Type-B |
| Input Voltage | 4.5–5.5V DC |
| Nominal Input | 5V DC |
| Charging Method | Constant Current / Constant Voltage (CC/CV) |
| Battery Type | Single-cell Li-ion / LiPo |
| Battery Nominal Voltage | 3.7V |
| Full Charge Voltage | 4.2V |
| Charging Current | Up to 1A |
| Default Charging Current | Approximately 1A |
| Charging Current Adjustment | Possible by changing RPROG resistor |
| Protection IC | DW01A on common protected versions |
| Protection MOSFET | 8205A / FS8205A dual MOSFET on common versions |
| Overcharge Protection | Yes |
| Over-discharge Protection | Yes |
| Over-current Protection | Yes |
| Short-circuit Protection | Yes |
| Input Interface | Micro-USB Type-B |
| Battery Terminals | B+ / B− |
| Protected Output | OUT+ / OUT− |
| Charge Indicator | LED |
| Full Charge Indicator | LED |
| PCB Type | Compact PCB module |
| Operating Temperature | Approximately −10°C to +85°C |
