MAX30100 Pulse Oximeter & Heart Rate Sensor Module
₹123.00 (Inclusive of GST)
- Input Voltage: 1.8V to 5.5V
- Shutdown Current: 0.7 µA (ultra-low power)
- Communication Interface: I²C (Two-Wire Interface)
- Integrated LEDs: Red and Infrared
- Photodetector: Onboard with ambient light rejection

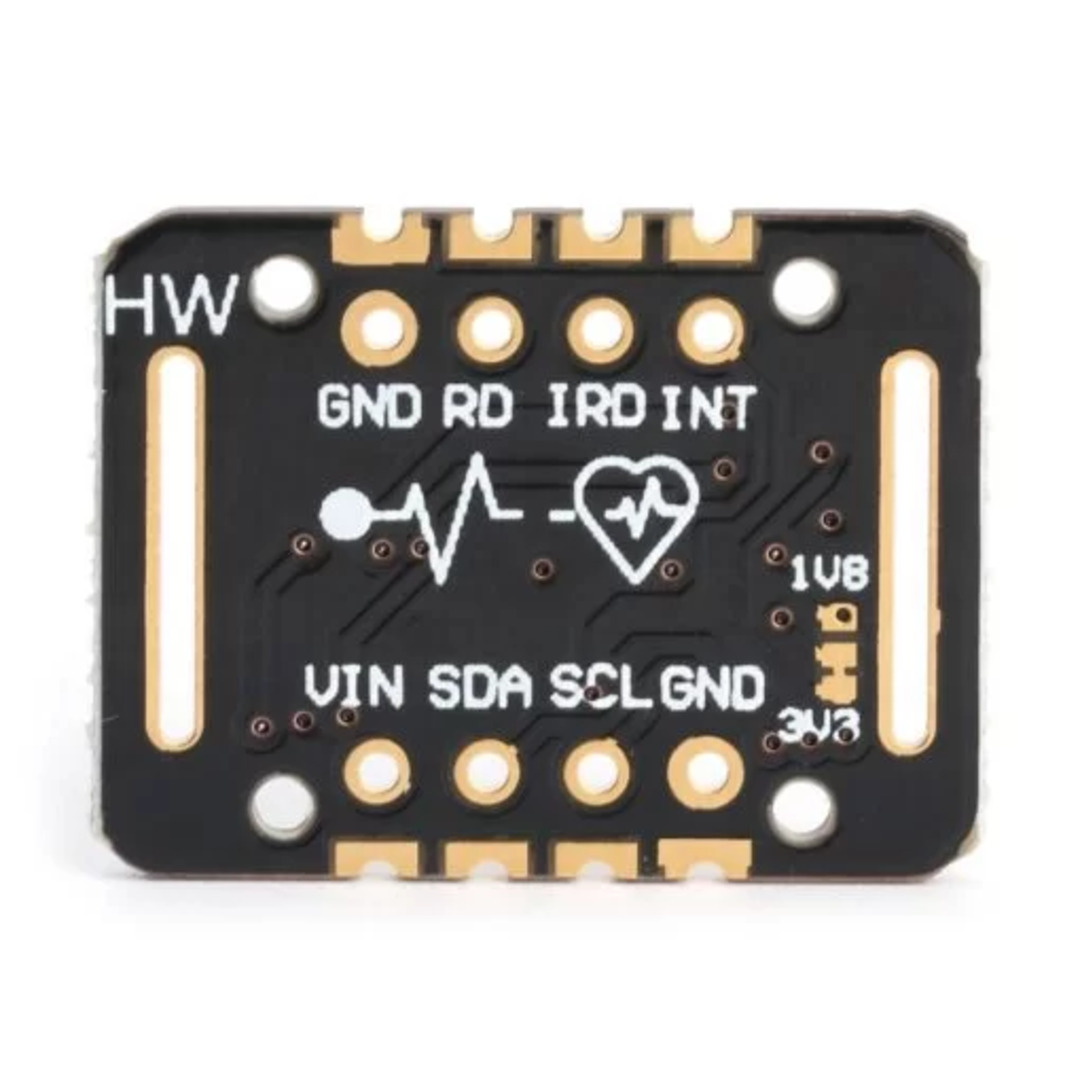

- INT Pin: For interrupt signaling

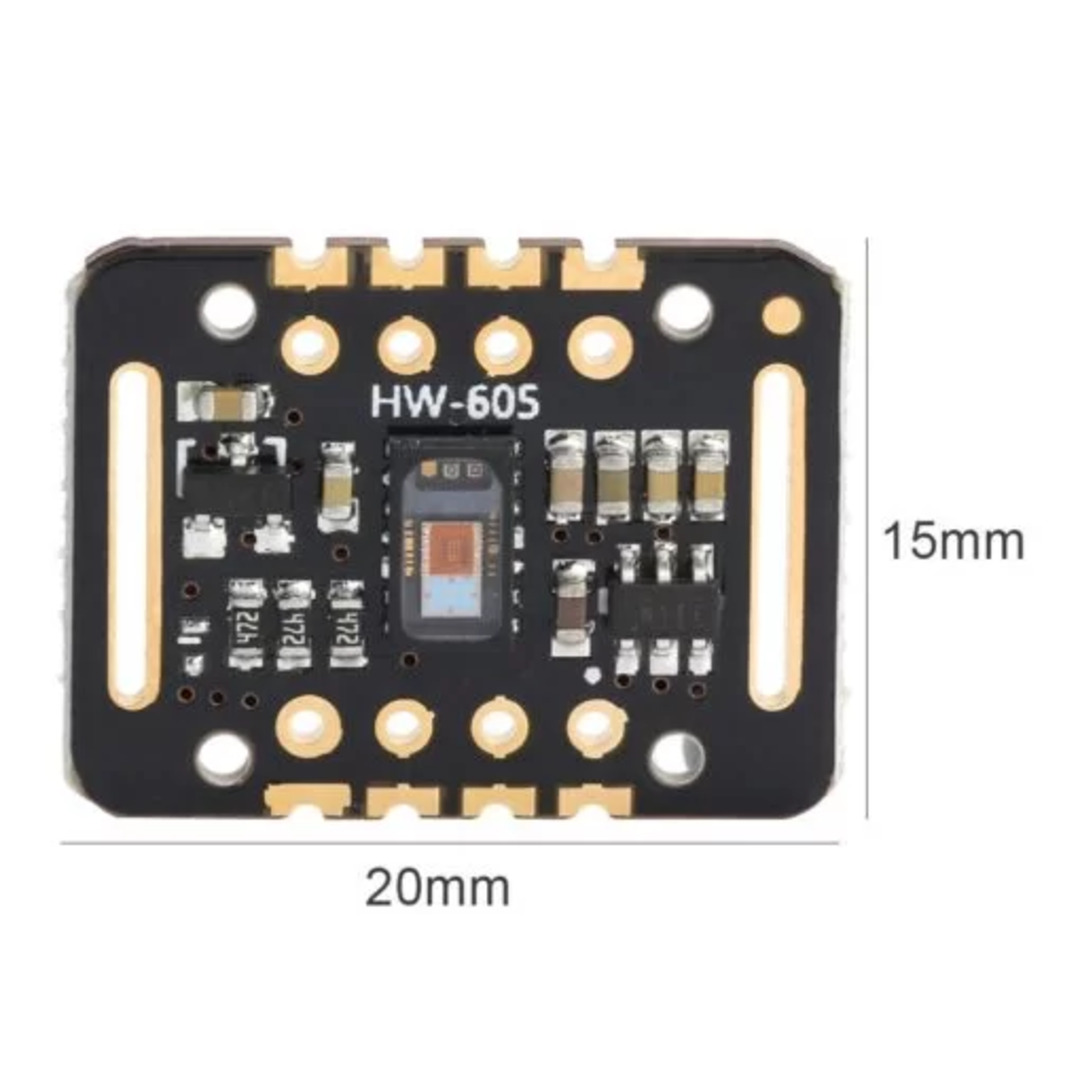

- Dimensions (L x W): 19 mm × 14.5 mm
- Weight: 2 g
- Color: Green
Description

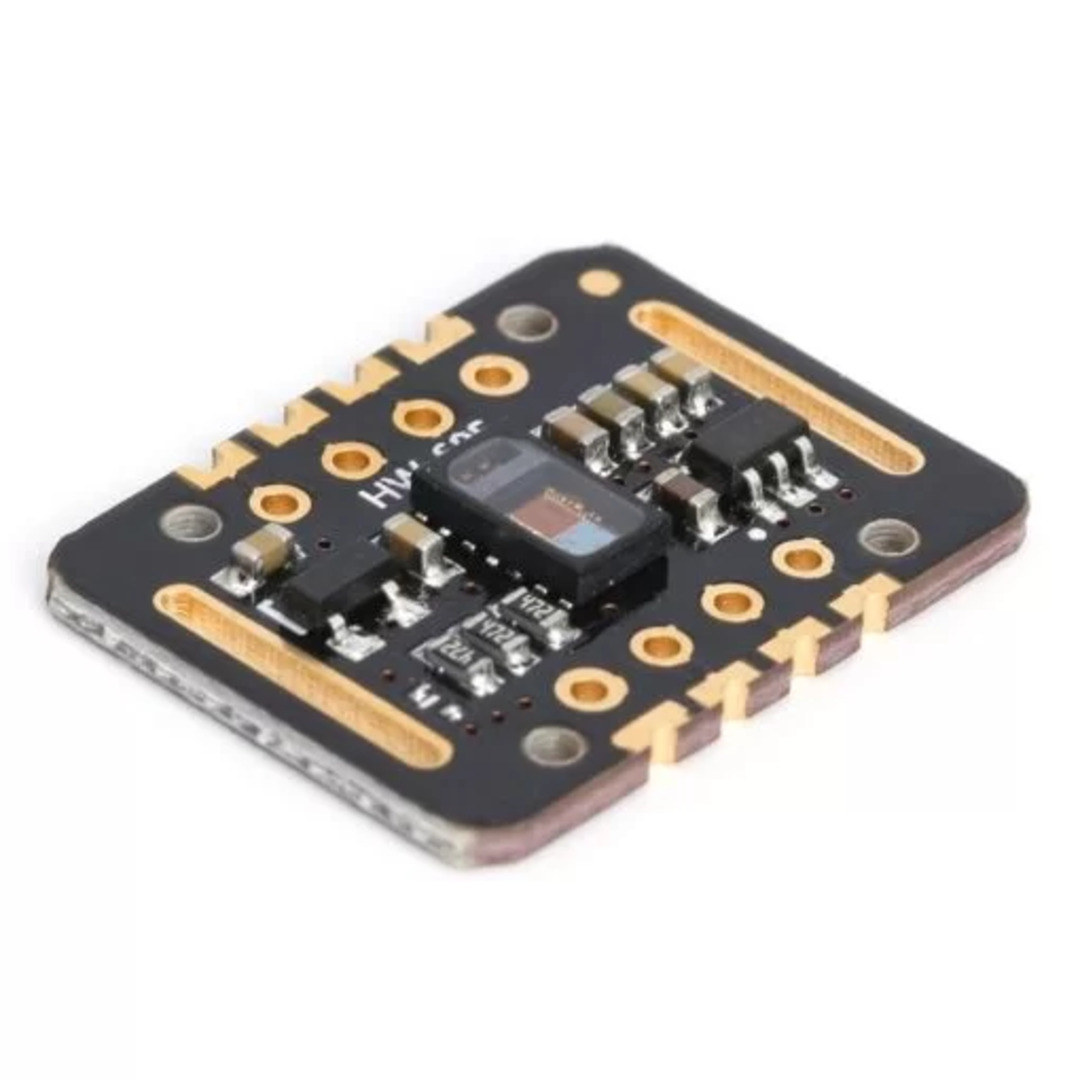

- The MAX30100-PULSE-I2C is an integrated pulse oximetry and heart-rate sensor module, designed for wearable and portable health monitoring systems. It combines two key sensing elements — red and infrared LEDs and a photodetector — along with low-noise analog signal processing, enabling precise measurement of SpO₂ (oxygen saturation) and heart rate (BPM).
- This sensor operates based on photoplethysmography (PPG) — a technique that measures variations in light absorption due to changes in blood volume with each heartbeat. The module’s I²C communication interface allows simple and direct connection with microcontrollers such as Arduino, ESP8266, ESP32, and Raspberry Pi.
- Compact and power-efficient, the MAX30100 is ideal for battery-powered applications. It features built-in ambient light cancellation for improved accuracy in diverse lighting conditions and includes an interrupt pin (INT) for event-driven operation.
PACKAGE INCLUDES:
- 1 × MAX30100 Pulse Oximeter & Heart Rate Sensor Module
Additional information
| Weight | 5 g |
|---|
Reviews (0)
Application
- Wearable Health and Fitness Devices
- Remote Patient Monitoring
- Fitness and Exercise Tracking
- Sleep Monitoring Systems
- Healthcare and Biomedical Devices
- Personal Health Monitoring
- Research and Development Projects
- Sports Science and Performance Studies
- Emergency Medical Equipment
- IoT-based Health Monitoring Platforms
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Input Voltage | 1.8V to 5.5V |
| Shutdown Current | 0.7 µA (ultra-low power) |
| Communication Interface | I²C (Two-Wire Interface) |
| Integrated LEDs | Red and Infrared |
| Photodetector | Onboard with ambient light rejection |
| INT Pin | For interrupt signaling |
| Dimensions (L x W) | 19 mm × 14.5 mm |
| Weight | 2 g |
| Color | Green |
