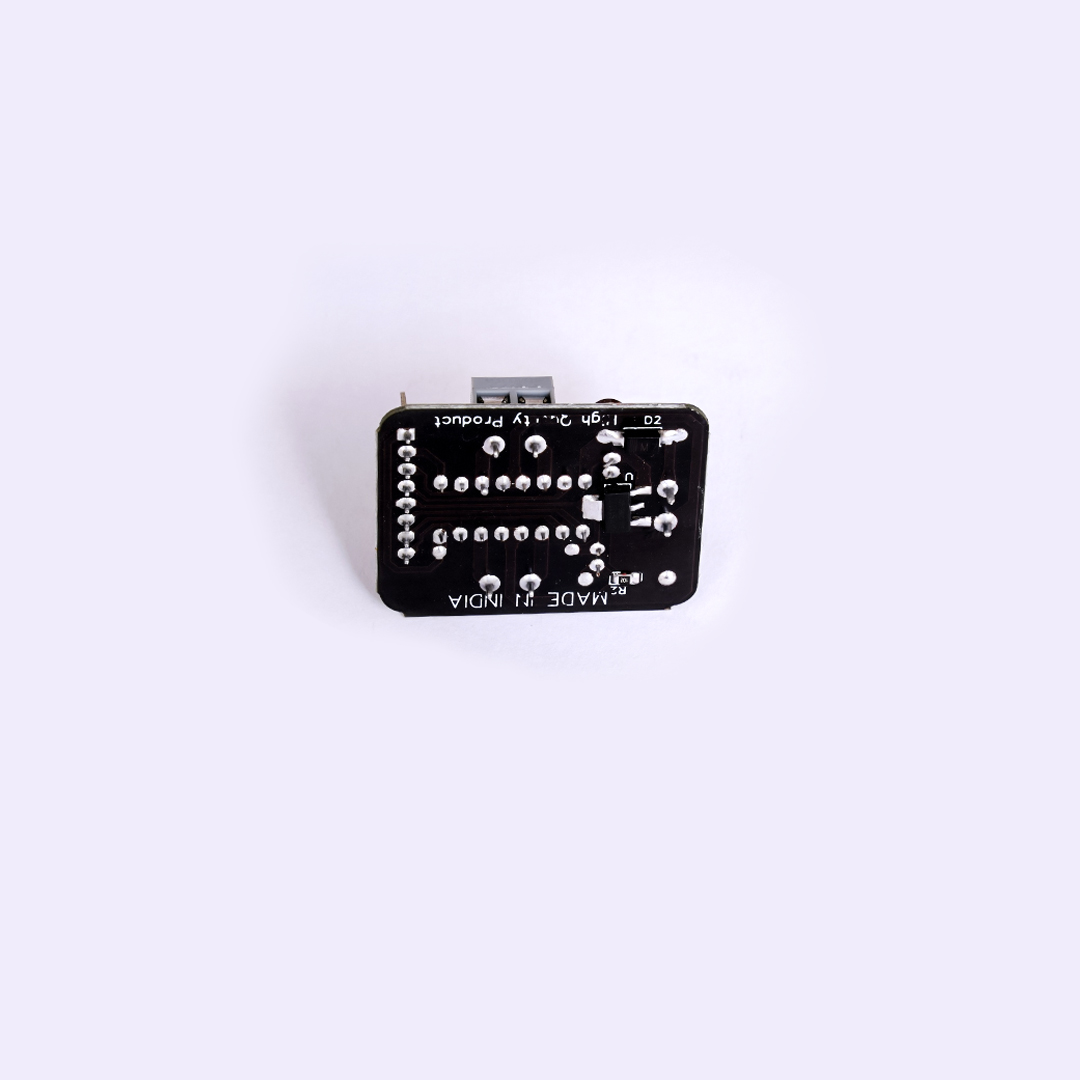

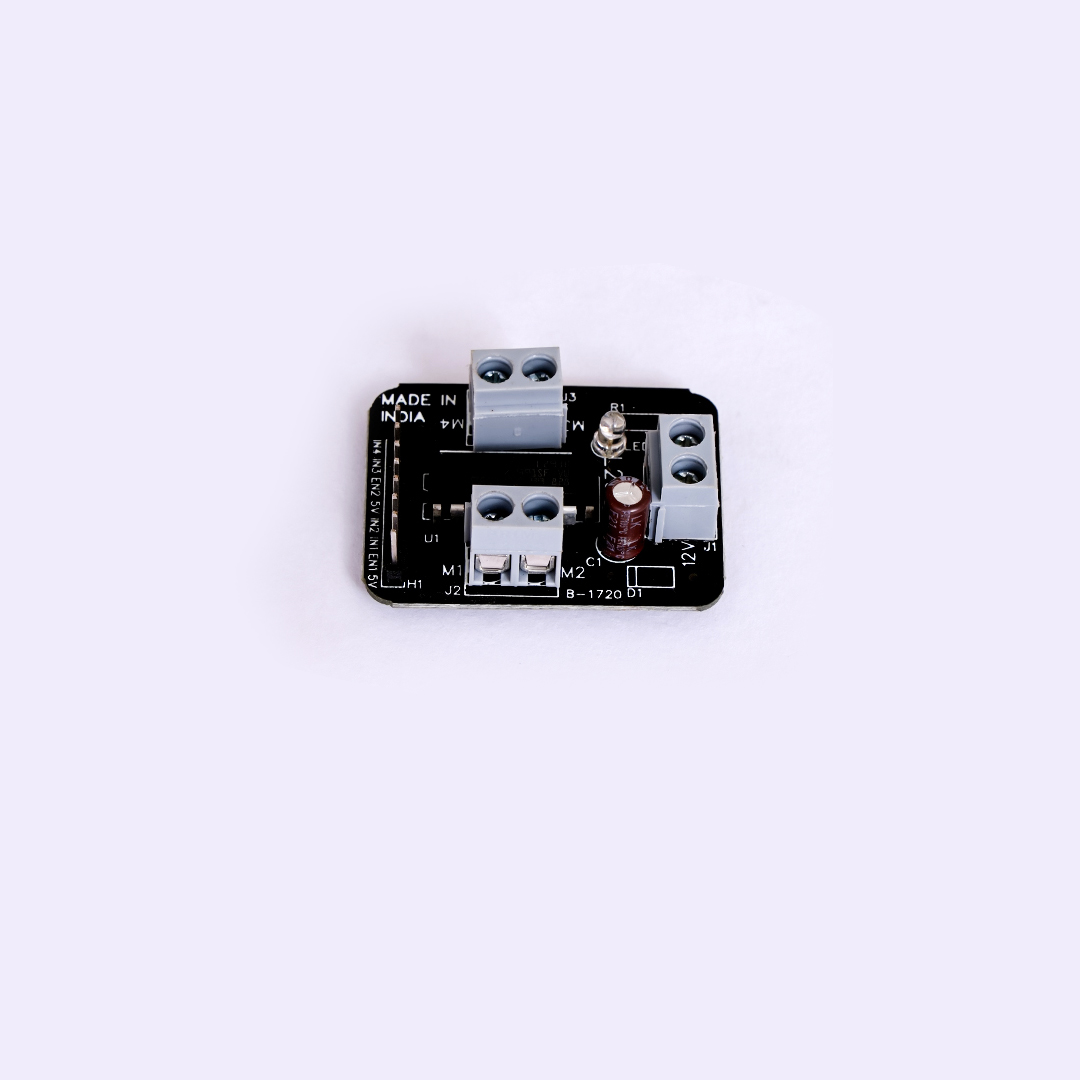

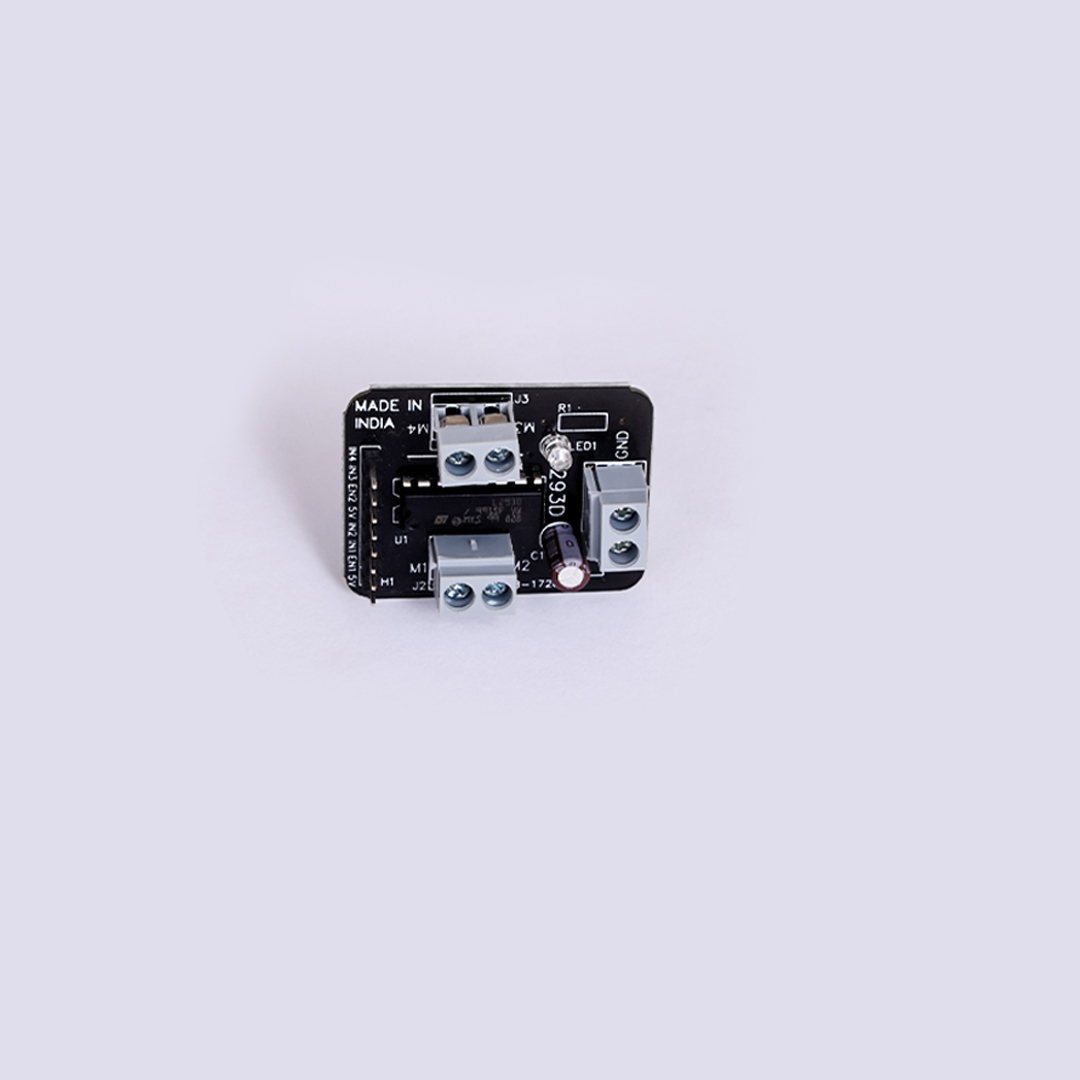

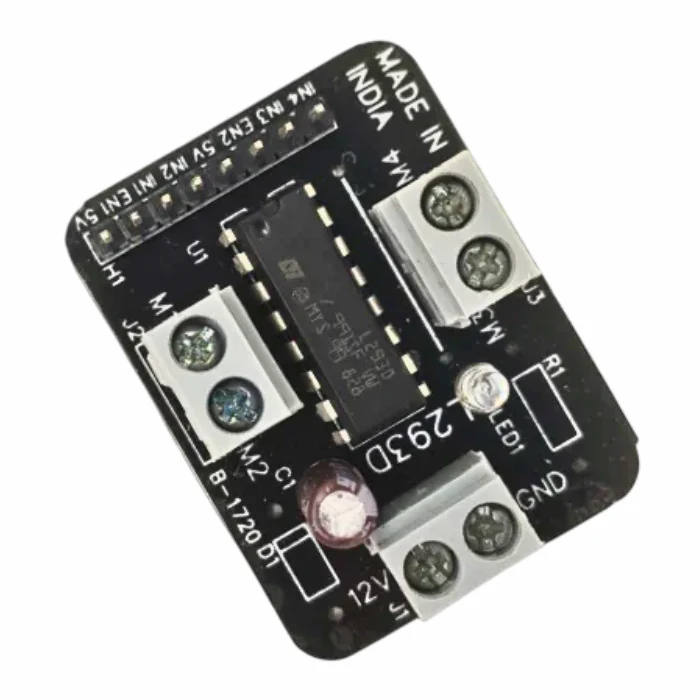

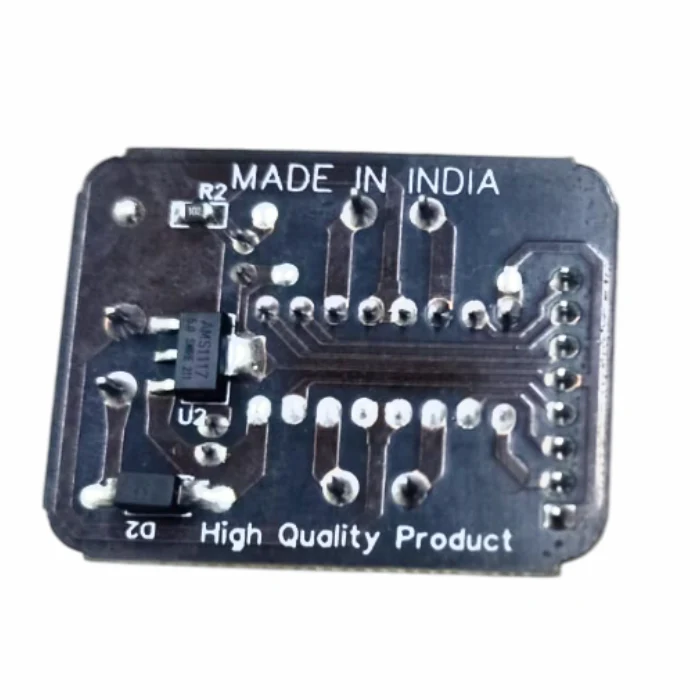

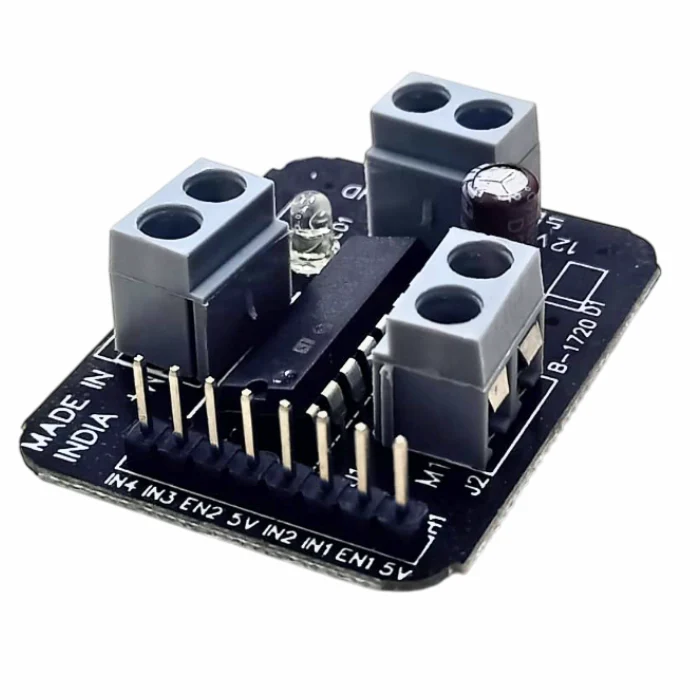

L293D 1A Motor Driver Module With 7805 Power IC
₹92.00 (Inclusive of GST)
- Dual H-Bridge DC Motor Driver IC (L293D)
- Output Current: Up to 600 mA per channel (peak 1A)
- Motor Voltage Support: 4.5V–36V
- Logic Voltage: 5V
- Onboard 7805 Voltage Regulator
- Drives 2 DC motors or 1 Stepper Motor
- Built-in internal clamp diodes for back-EMF protection
- Separate logic and motor power pins
- Enable pins for speed control via PWM
Description
- The L293D 1A Motor Driver with onboard 7805 power IC is a dual-channel H-bridge module designed to control small to medium DC motors and stepper motors using microcontrollers like Arduino, ESP32, and Raspberry Pi.
- Â The onboard 7805 regulator allows powering the logic circuitry from the motor voltage input, making it a compact, beginner-friendly motor driver solution.
PACKAGE INCLUDES:
- 1 × L293D Motor Driver Board with 7805 Regulator
Additional information
| Weight | 15 g |
|---|
Reviews (0)
Application
- Robotics and automation projects
- Small mobile robots (Smart Cars)
- Conveyor and belt systems
- CNC/Stepper control (low-power)
- Line follower robots
- Motorized door locks / actuators
- Arduino-based motor experiments
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Driver IC | L293D Quad Half-H Bridge |
| Voltage Regulator | 7805 (Fixed 5V) |
| Logic Input Voltage | 5V |
| Motor Supply Voltage (Vs) | 4.5V–36V |
| Output Current | 600 mA continuous per channel (max 1A peak) |
| Number of Channels | 2 |
| PWM Speed Control | Supported via enable pins (EN1, EN2) |
| Protection | Built-in freewheeling diodes & thermal shutdown |
| Input Logic Compatibility | TTL / CMOS |
| Control Pins | IN1, IN2, IN3, IN4 |
| Board Features | Power LED indicator, motor output terminals, screw connectors |
