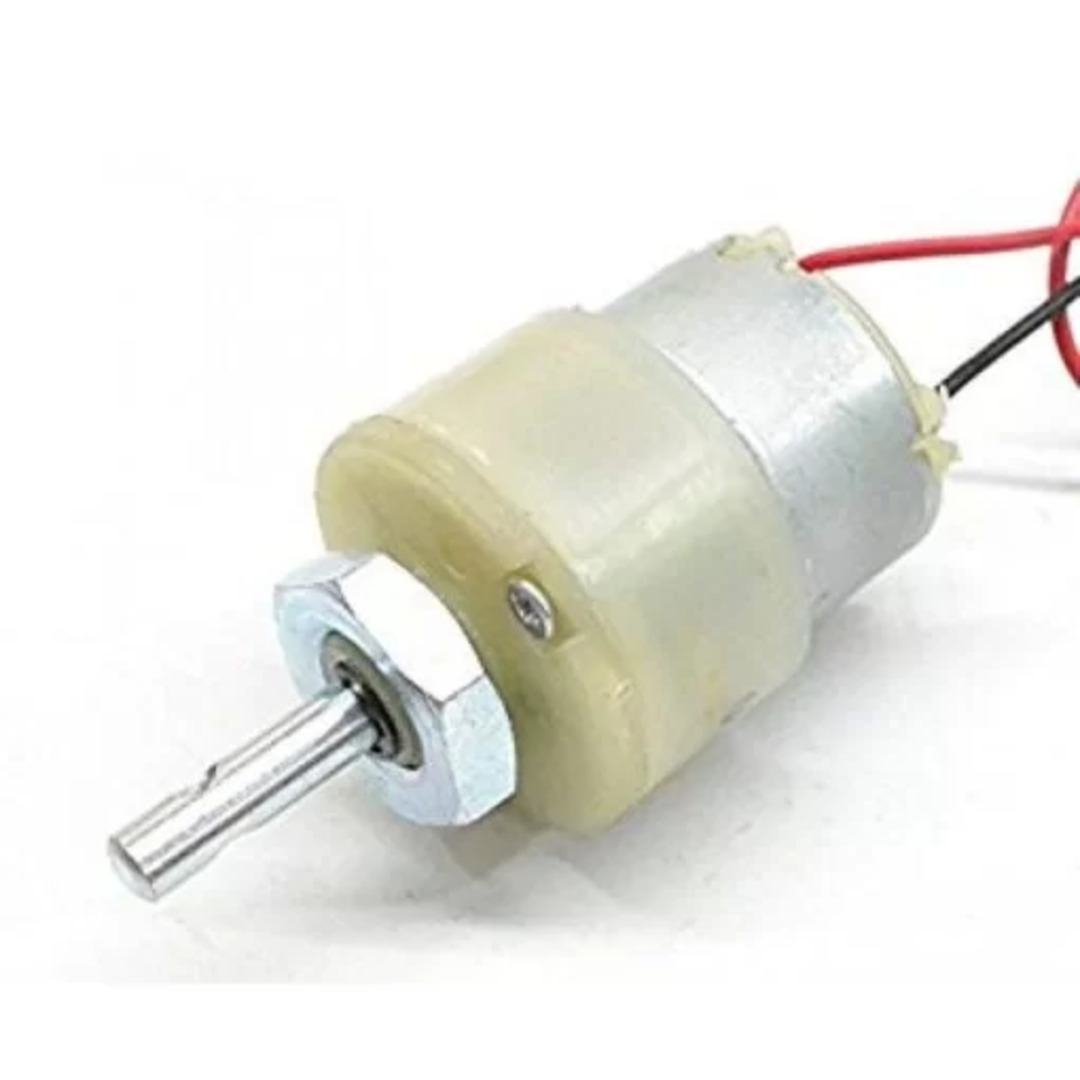

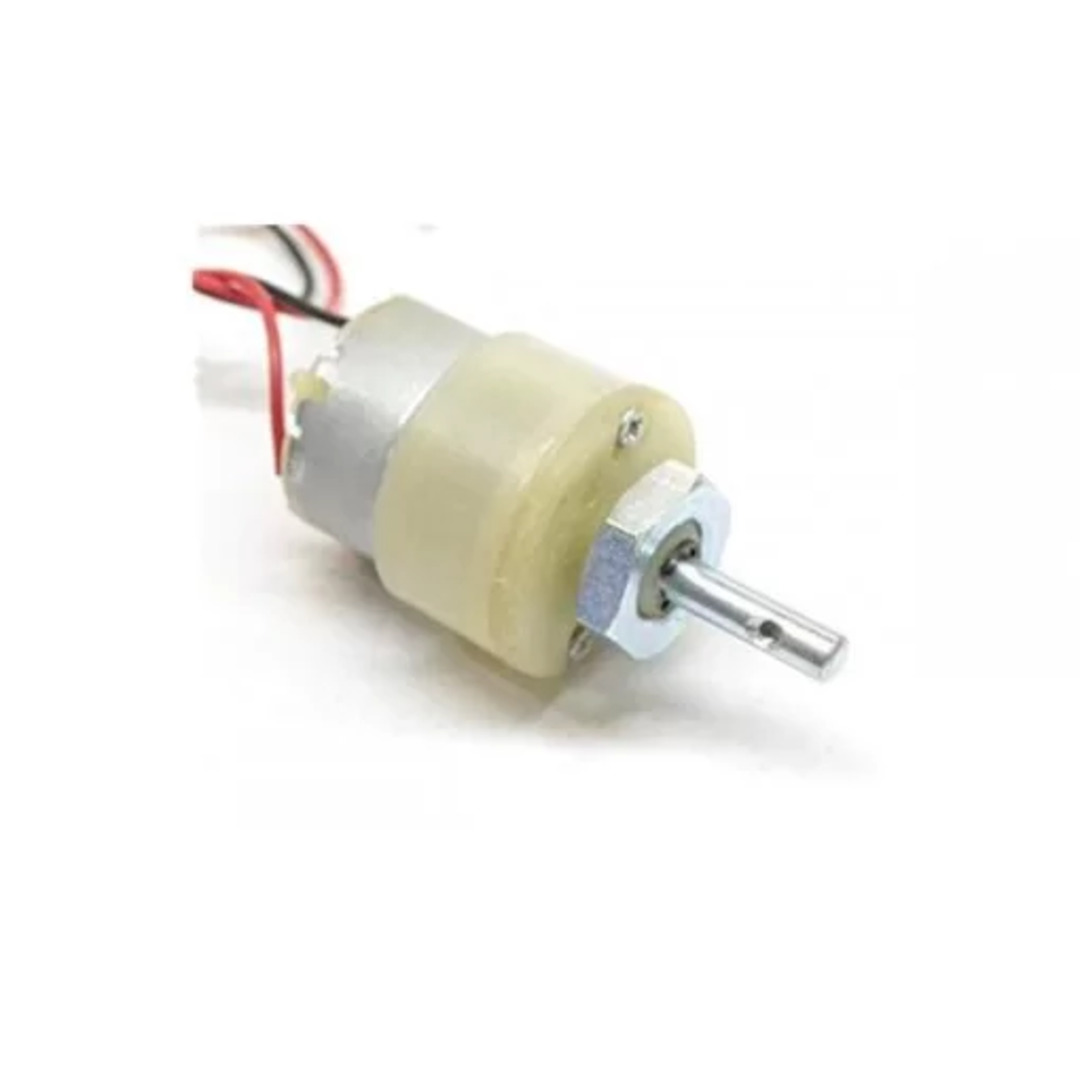

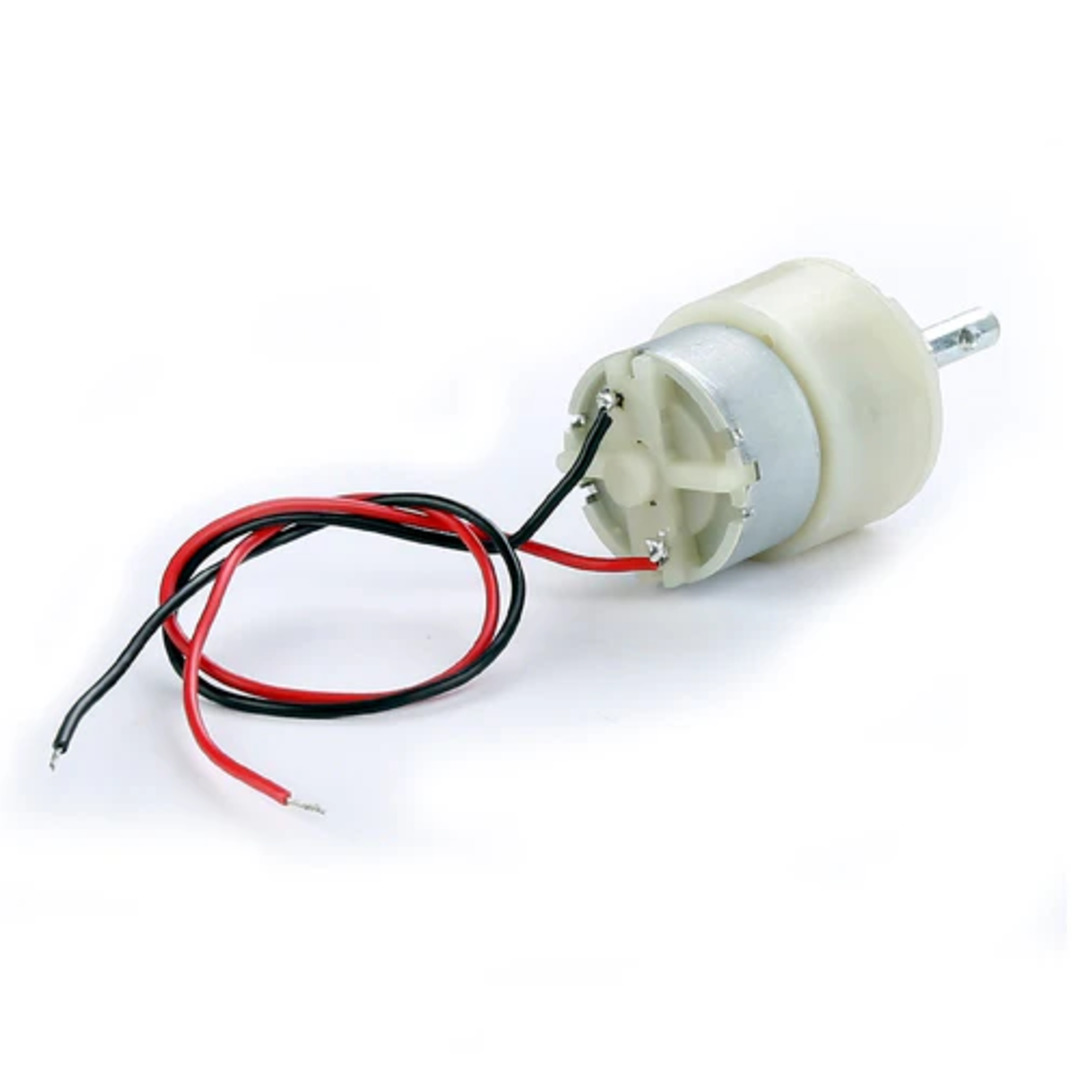

DC Gear Motor 10 RPM

  • Type: DC Gear Motor
  • Speed: 10 RPM
  • Operating Voltage: 6V–12V DC (Rated at 12V)
  • Gear Ratio: Typically, 1:30 to 1:100 (varies by model)
  • Current Draw: 200 mA to 1 A depending on load
  • Shaft Diameter: ~6 mm
  • Mounting: Flange or bracket type
  • Design: Compact, durable gearbox
  • Rated Torque: 7 kg-cm
  • Stall Torque: 28 kg-cm
Description
  • The DC Gear Motor – 10 RPM is a high-torque, low-speed motor designed for applications where precise and powerful rotational output is required. Using a DC motor combined with a reduction gearbox, it provides increased torque while maintaining a slow, controlled output speed.
  • The motor supports PWM speed control, allowing easy adjustment of speed and direction using common controllers such as Arduino, ESCs, or motor drivers. Built with a compact but robust design, the motor housing and gearbox allow continuous operation under varying loads.
  • This motor is widely used in automation, mechatronics, prototyping, and robotic actuation where reliable, slow-speed rotational motion is essential.

PACKAGE INCLUDES:
  • 1 × DC Geared Motor – 10 RPM – 12V
Additional information
Weight100 g
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “DC Gear Motor 10 RPM”

Your email address will not be published. Required fields are marked *

Application
  • Automated Devices
  • Industrial Automation
  • Medical Equipment
  • Security & Surveillance Systems
  • Solar Tracking Mechanisms
  • Automotive Actuators
  • Agricultural Machinery
  • Consumer Electronics
  • Robotics & Actuators
  • Model Making / Hobby Projects
TECHNICAL SPECIFICATIONS
Parameter Value
Gear Material Plastic
Rated Speed 10 RPM
Operating Voltage 12 V DC
Load Current (Max) 300 mA
No-Load Current 60 mA
Gearbox Diameter 37 mm
Motor Diameter 32 mm
Motor Length 82 mm
Shaft Diameter 6 mm
Shaft Length 22 mm
Rated Torque 7 kg-cm
Stall Torque 28 kg-cm
Weight 90 g
Shipping Weight 0.1 kg
Shipping Dimensions 9 × 5 × 5 cm
