L298N 2A Dual H-Bridge Motor Driver Module
₹145.50 (Inclusive of GST)
- Dual H-Bridge DC motor driver
- Continuous current up to 2A per channel
- Operating voltage: 5V–35V
- Logic voltage: 5V
- Onboard 5V regulator (can be enabled/disabled via jumper)
- Supports 2 DC motors or 1 stepper motor
- Direction & speed control (PWM supported)
- Overtemperature protection
Description

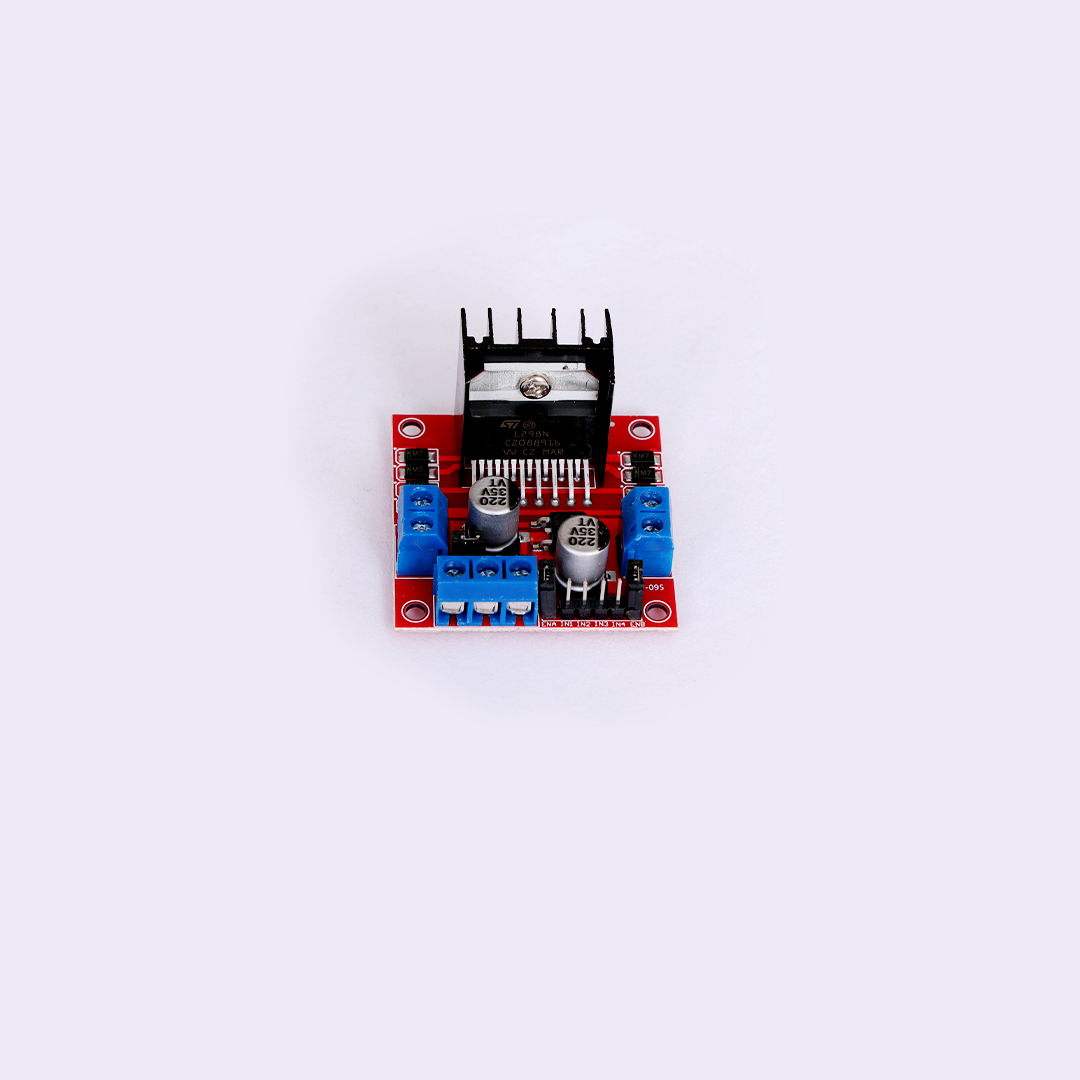

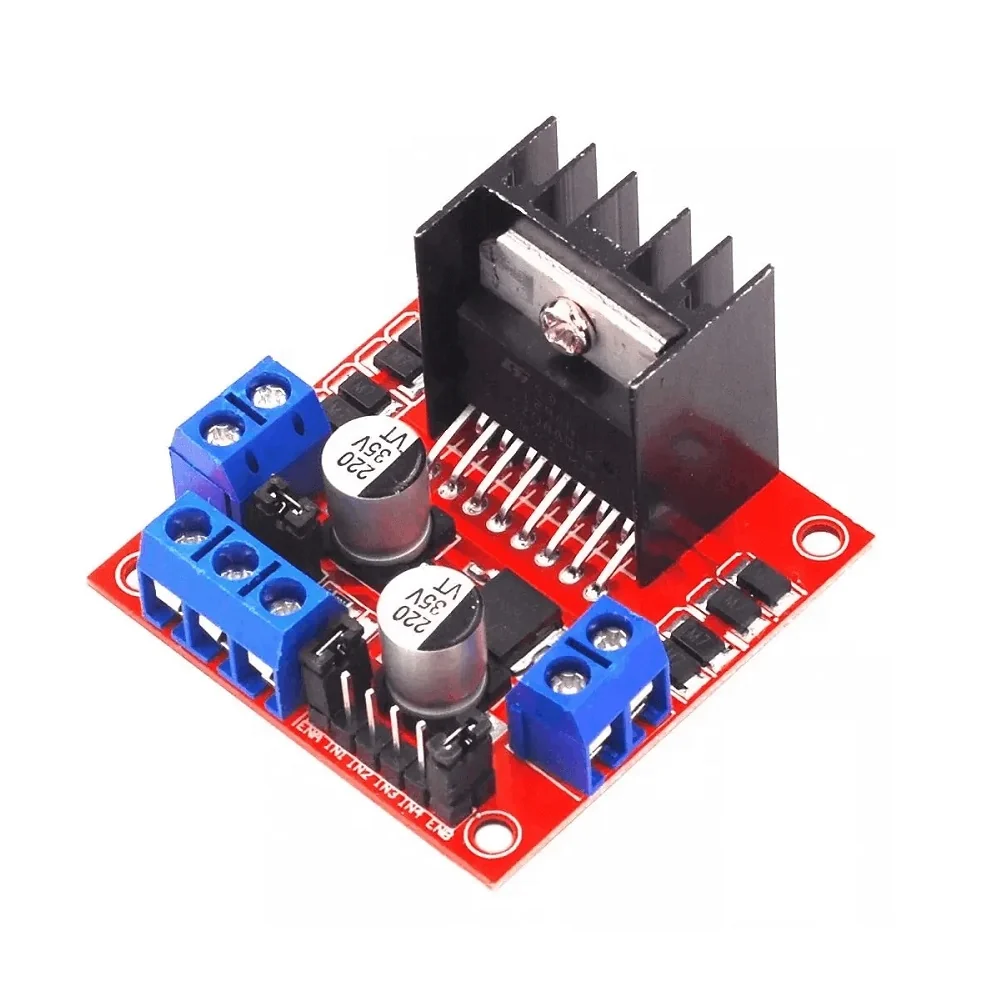

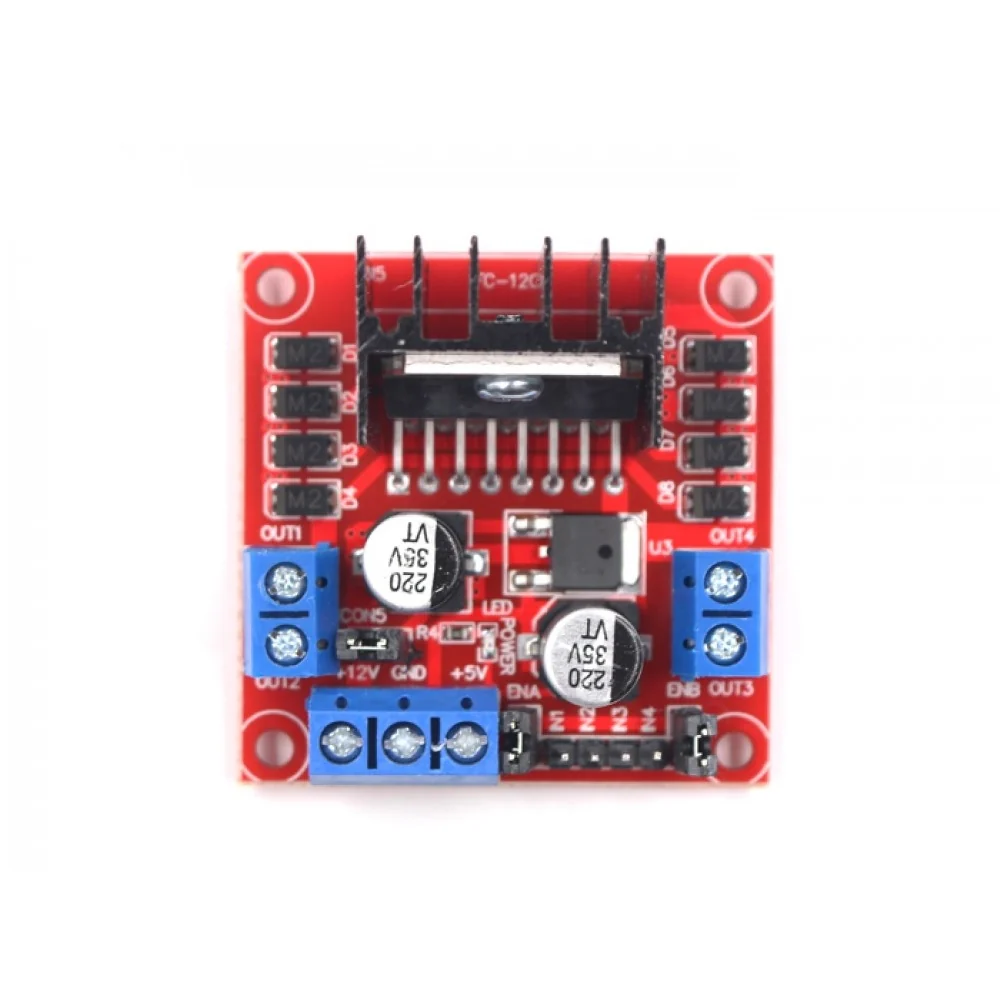

- The L298N Motor Driver Module is a dual H-Bridge driver commonly used to control DC motors and stepper motors in robotics and automation projects.
- It uses the L298N IC, providing reliable high-current control and allowing forward/reverse and PWM speed control.
- It includes an onboard 5V regulator, terminal blocks for motor connections, jumpers for mode selection, and indicator LEDs.
PACKAGE INCLUDES:
- 1 × L298N Motor Driver Module
Additional information
| Weight | 35 g |
|---|
Reviews (0)
Application
- Robotics
- RC vehicles
- Motorized platforms
- Conveyor mechanisms
- Smart cars / line-following robots
- Stepper-based mechanisms
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Driver IC | L298N Dual H-Bridge |
| Motor supply voltage (VM) | 5V–35V |
| Motor output current | Up to 2A per channel |
| Logic supply voltage | +5V |
| Maximum power | 25W |
| Control signal voltage | 3V / 5V compatible |
| Number of channels | 2 |
| Onboard 5V regulator | Yes (requires VIN ≥ 7V) |
| Dimensions | Approx. 43 × 43 × 28 mm |
| Inputs | IN1, IN2, IN3, IN4, ENA, ENB |
