IR Obstacle Sensor
Original price was: ₹31.00.₹27.00Current price is: ₹27.00. (Inclusive of GST)

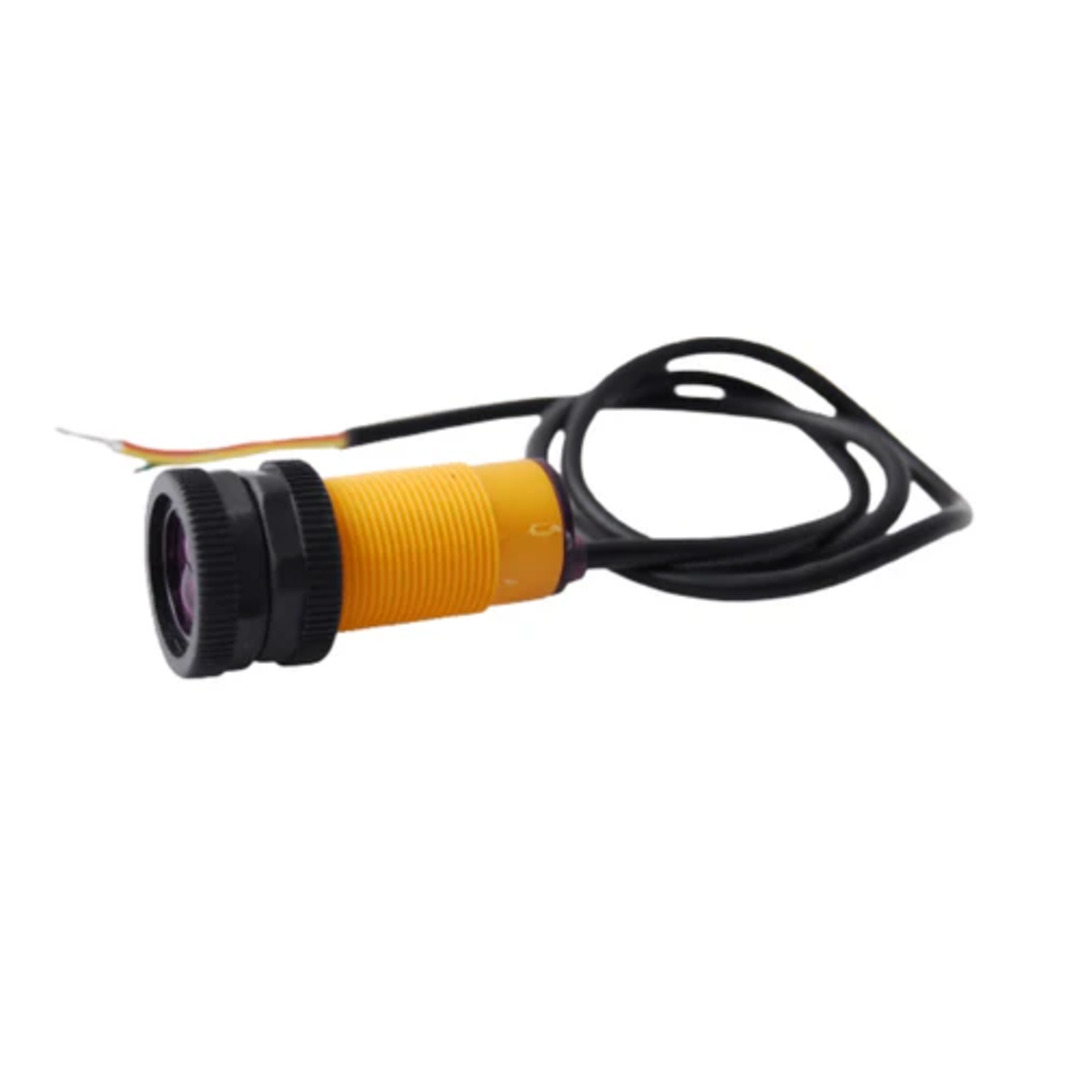

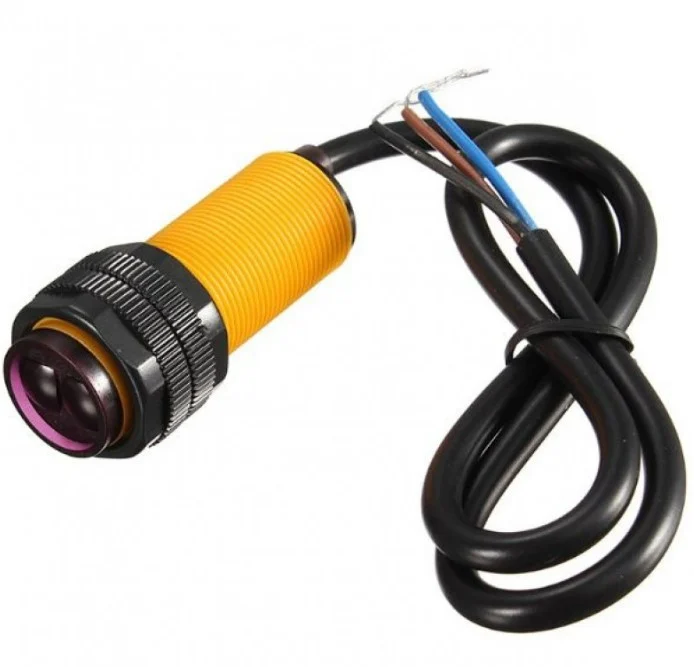

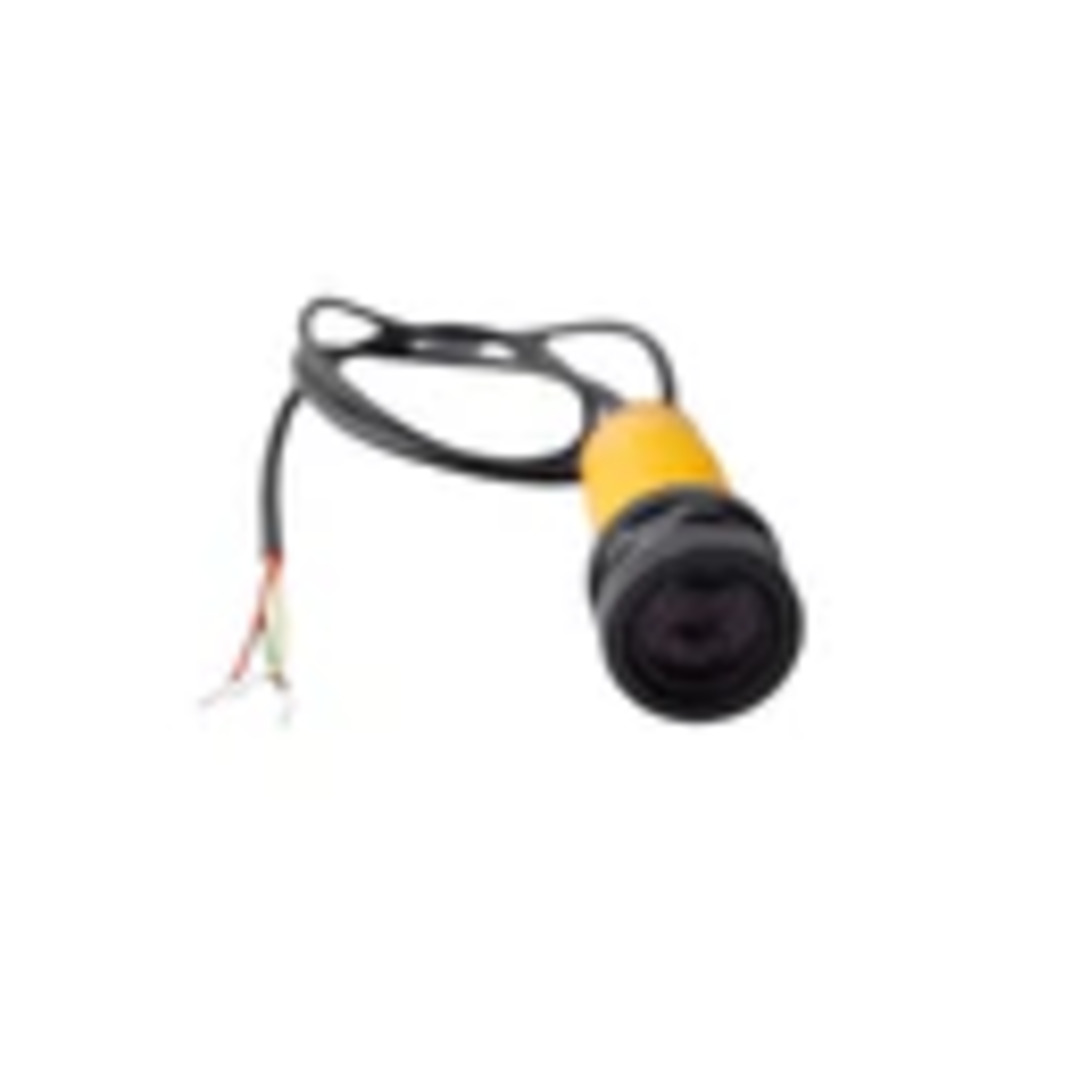

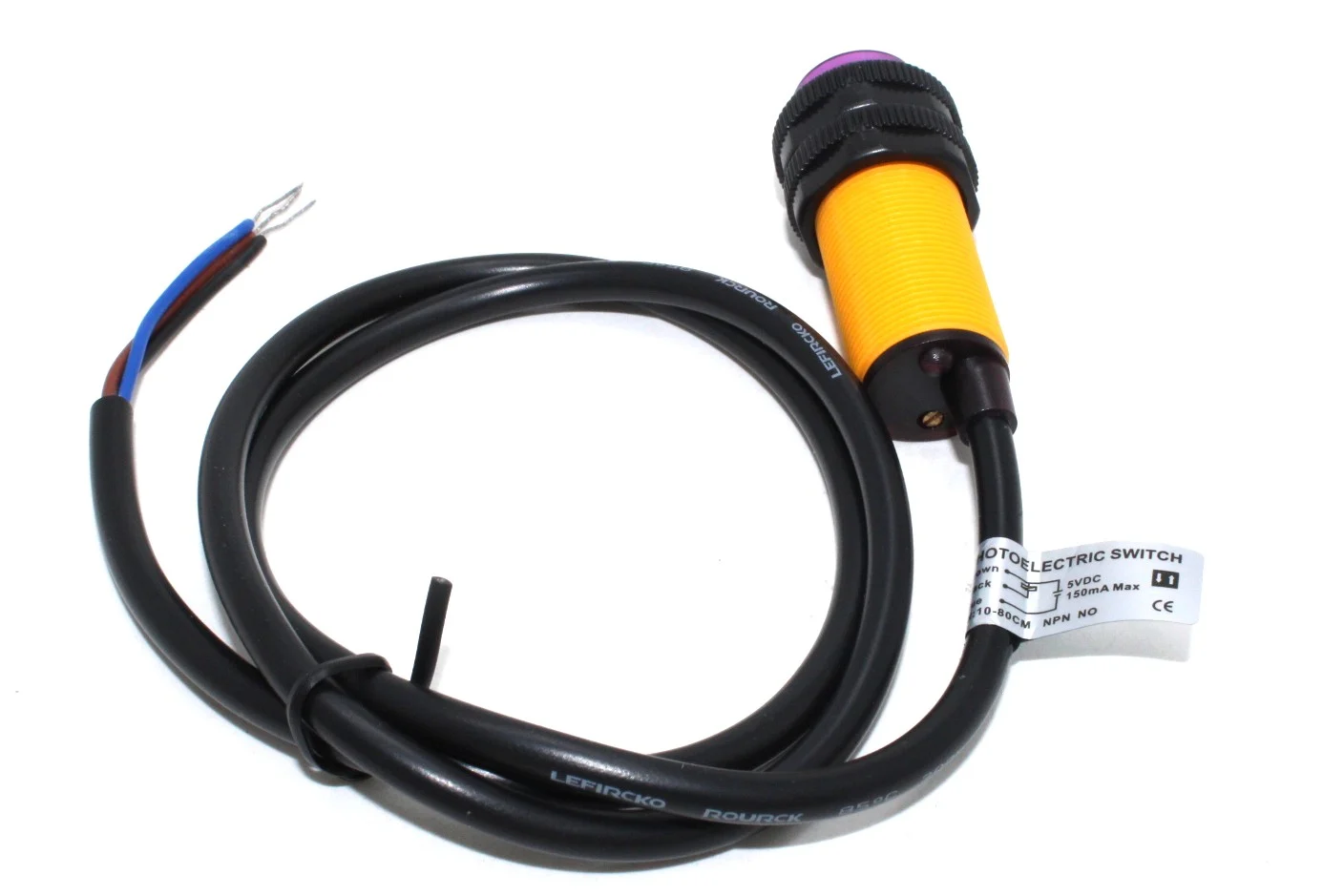

IR E18 D80NK 3-80Cm
- Sensing Range: 3 – 80 cm (Adjustable)
- Input Voltage: 5 VDC (some variants support 5–24VDC)
- Current Consumption: 300 mA (typ.)
- Output Type: Digital (NPN Normally Open)
- Cable Length: 1 m
- Sensor Type: Diffuse Reflective Infrared
- Detection Target: Opaque or reflective objects
Description
- The IR-E18-D80NK is a diffuse reflective infrared proximity sensor used for non-contact object detection.
- It operates by emitting infrared light, which reflects off nearby objects and is detected by the sensor’s receiver.
- The sensing distance (3–80 cm) is adjustable using an onboard potentiometer, allowing fine-tuning for various surfaces and lighting conditions.
- Provides a digital output (HIGH/LOW) signal, easily interfaced with Arduino, Raspberry Pi, ESP32, and other microcontrollers.
- Designed for automation, robotics, and industrial applications, where reliable object detection is required.
- Compact cylindrical M18 threaded housing allows for easy mounting with standard brackets.
- Built for durability and long service life, making it ideal for embedded and industrial systems.
PACKAGE INCLUDES:
- 1 × E18-D80NK Adjustable Infrared Sensor (3–80 cm)
Reviews (0)
Application
- Object Detection and Counting
- Line-following Robots
- Industrial Automation
- Conveyor Systems
- Safety Barriers and Door Sensors
- Obstacle Avoidance for Robots
- Proximity Detection in IoT Devices
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Sensing Range | 3 – 80 cm (Adjustable) |
| Input Voltage | 5 VDC (some variants support 5–24VDC) |
| Current Consumption | 300 mA (typ.) |
| Output Type | Digital (NPN Normally Open) |
| Cable Length | 1 m |
| Sensor Type | Diffuse Reflective Infrared |
| Detection Target | Opaque or reflective objects |
