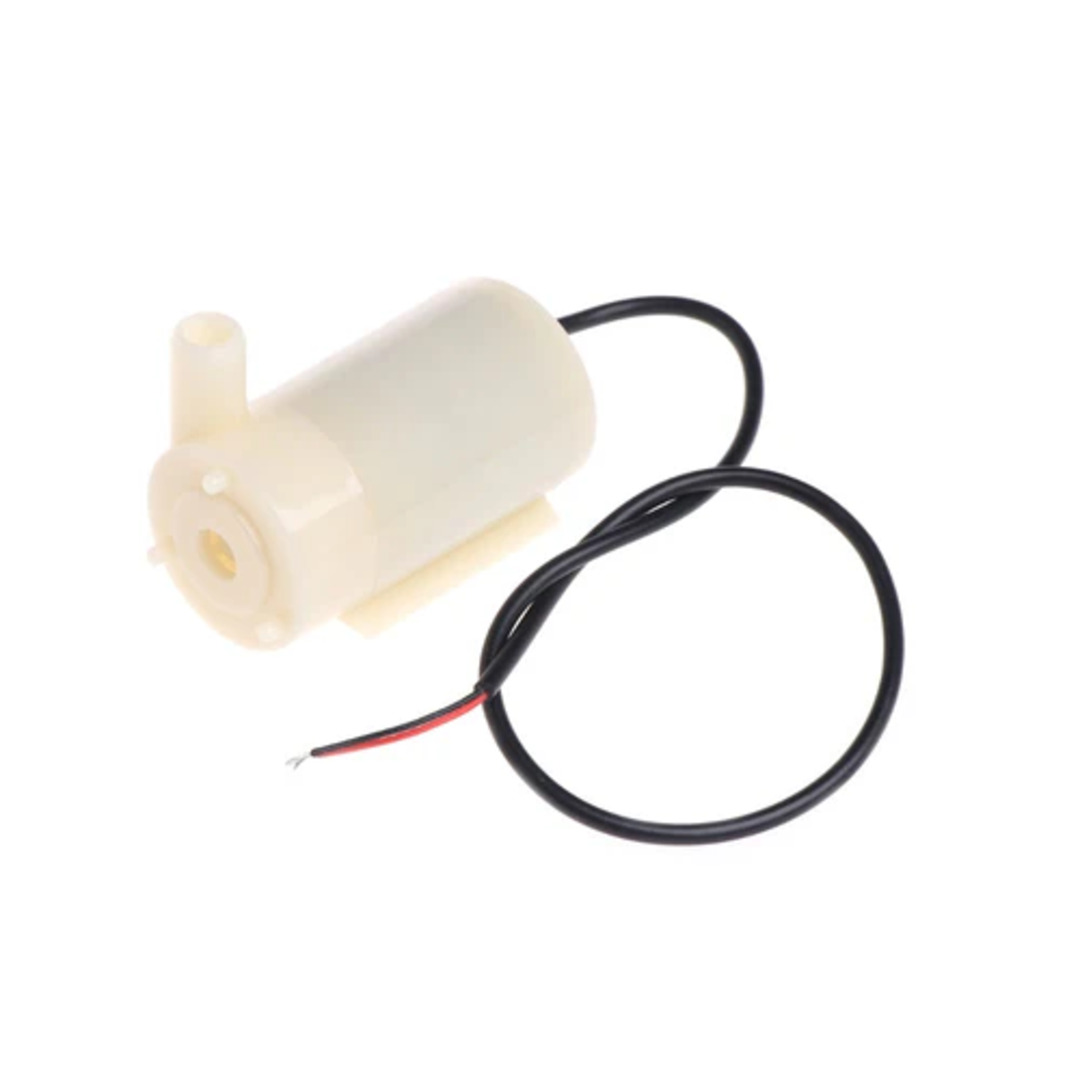

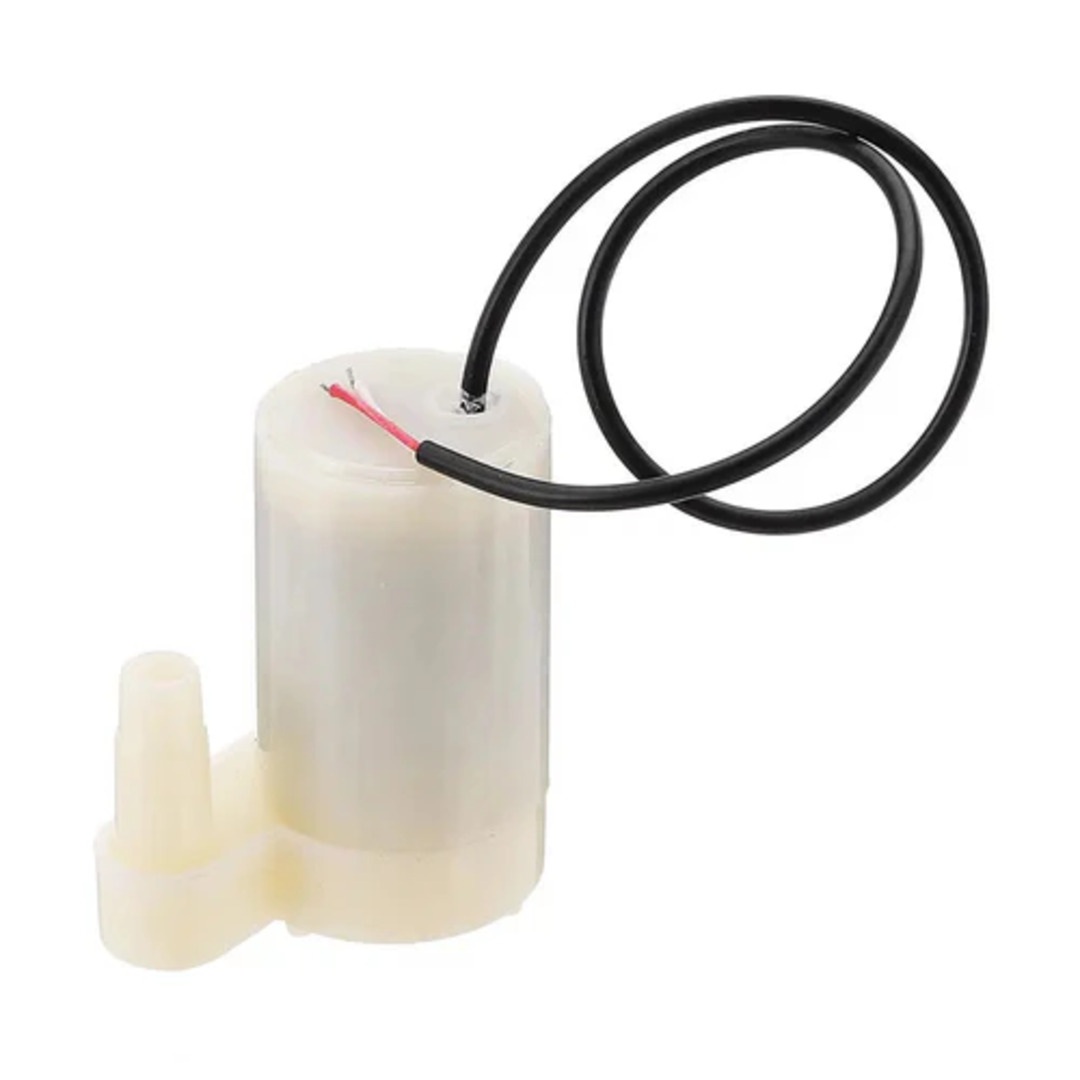

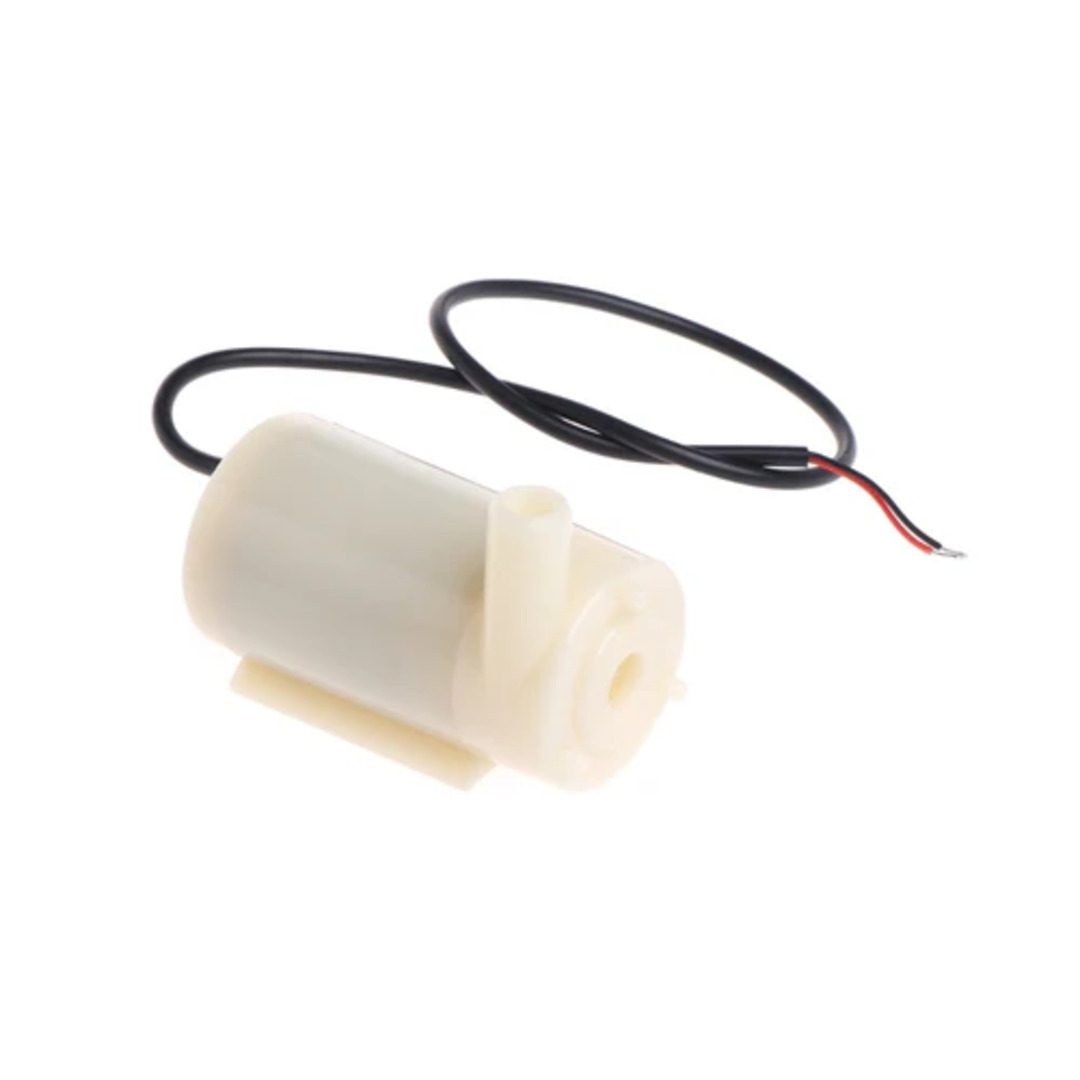

3-6V DC Mini Micro Submersible Pump
₹44.50 (Inclusive of GST)
- Operating Voltage: 2.5V ~ 6V DC
- Operating Current: 130mA ~ 220mA
- Flow Rate: 80 ~ 120 L/H
- Maximum Lift: 40 ~ 110 mm
- Outlet Diameter (OD): 7.5 mm
- Outlet Diameter (ID): 5 mm
Description
- This 3–6V DC Mini Micro Submersible Pump is a compact and lightweight pump designed for small-scale liquid transfer applications. Its low-voltage operation makes it ideal for battery-powered or USB-powered DIY projects.
- The pump uses a magnetic-driven DC motor, providing efficient, quiet, and reliable water circulation. Made from durable, corrosion-resistant plastics suitable for prolonged water contact, it performs well in continuous or intermittent duty.
- It is widely used in miniature fountains, model making, aquariums, hydroponics, and STEM educational projects. Flow rate can be controlled through PWM speed control or voltage adjustment.
PACKAGE INCLUDES:
- 1 × DC 3–6V Mini Micro Submersible Water Pump
Additional information
| Weight | 20 g |
|---|
Reviews (0)
Application
- Miniature Fountains
- Aquarium Filters
- DIY Hydroponics Systems
- Cooling Circulation (electronics, heat sinks)
- Portable Water Dispensers
- Automatic Plant Watering Systems
- STEM Educational Projects
- Craft and Hobby Models
- Prototype Fluid Handling
- Simulation / Research Models
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Item Type | Submersible Water Pump |
| Rated Voltage | 3–6V DC |
| Operating Current | 0.13–0.22A |
| Flow Rate | 80–120 L/h |
| Maximum Lift | 40–110 mm |
| Drive Mode | DC Magnetic Drive |
| Tube Inner Diameter | 5 mm |
| Tube Outer Diameter | 7.5 mm |
| Lifecycle | ~500 hours |
| Weight (Shipping) | 0.02 kg |
| Dimensions (Shipping) | 5 × 4 × 3 cm |
