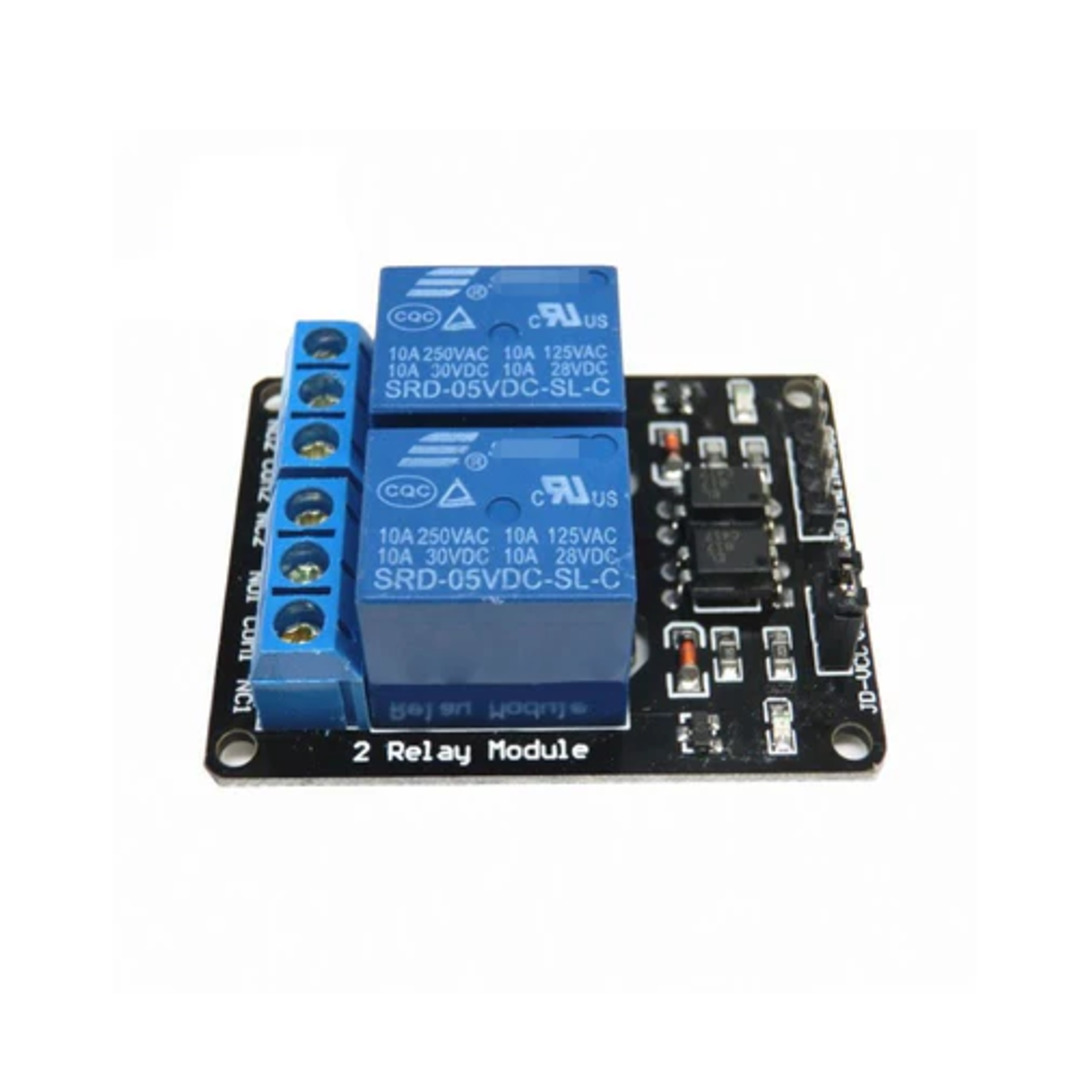

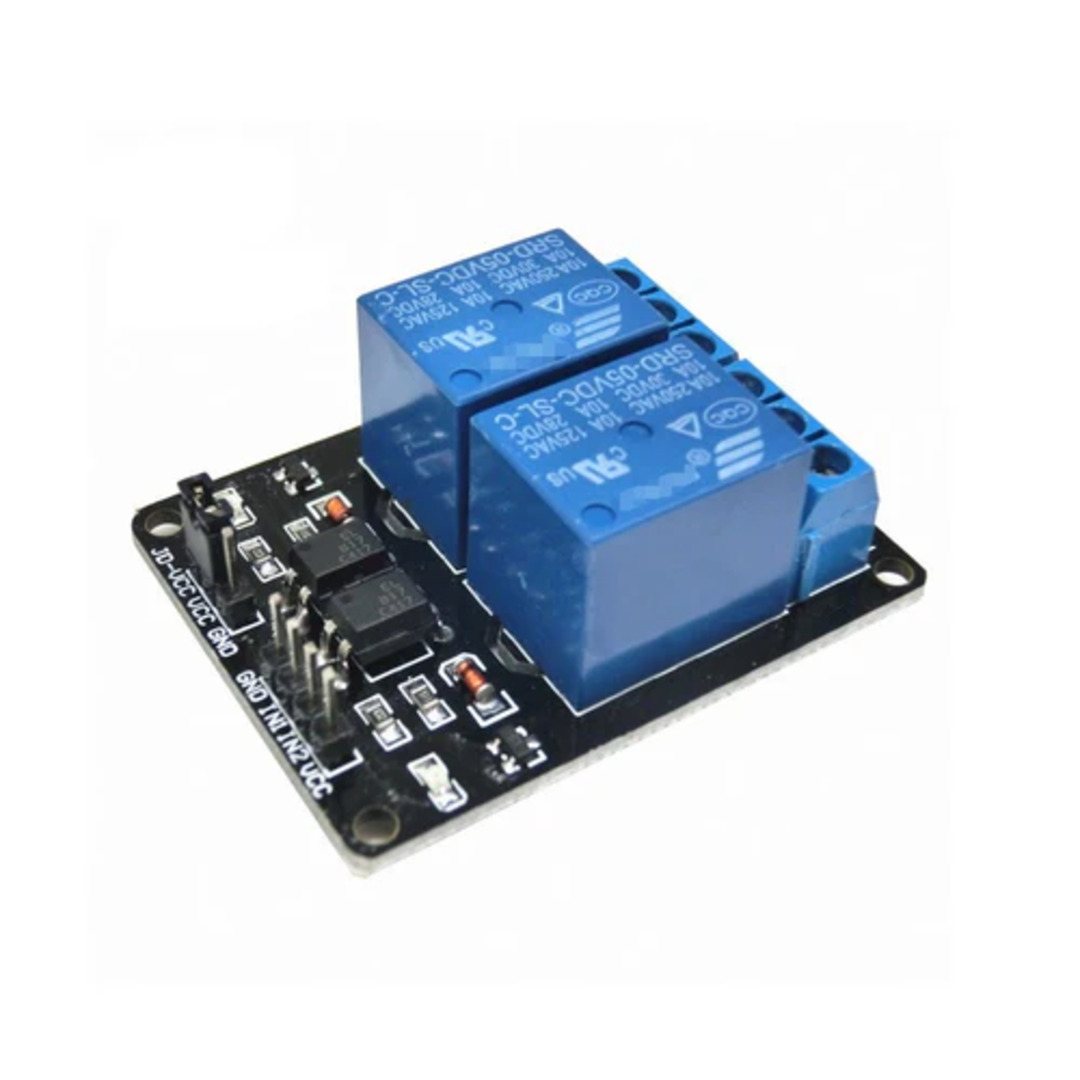

2 Channel 5v Relay with OptoCoupler
Original price was: ₹92.00.₹83.00Current price is: ₹83.00. (Inclusive of GST)
- 2 LEDs to indicate relay ON status
- Works with logic-level signals from 3.3V or 5V devices
- Opto-isolation circuitry for controller protection
- Onboard diode for current protection and fast response

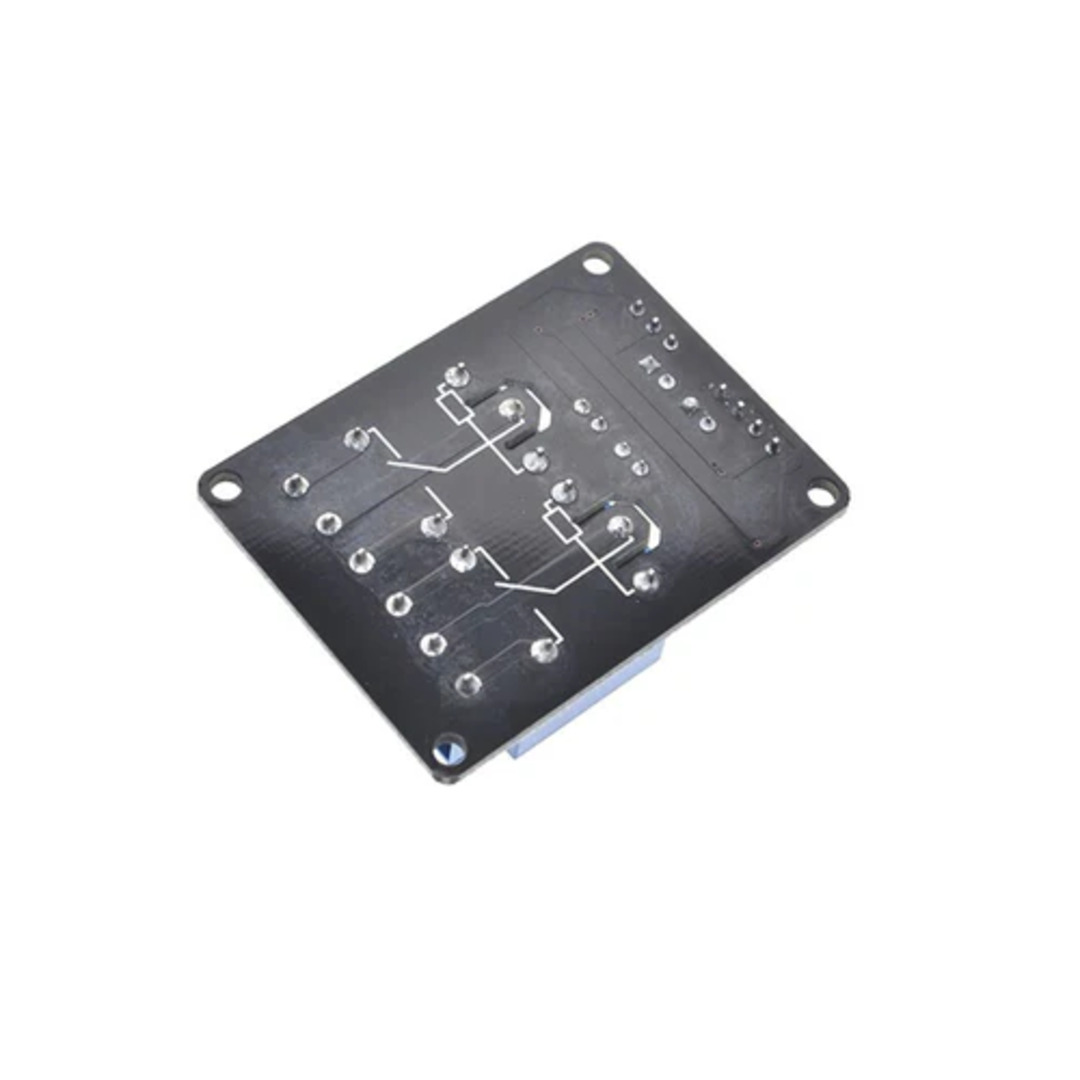

- PCB includes 4 mounting holes (3.1 mm diameter) for easy installation
Description
- The 2CH-RELAY-OPTO-5V module is a high-quality dual-channel relay board engineered for use in home automation, industrial control, IoT systems, and general embedded projects.
- This module integrates two independent SPDT relays, each capable of switching up to 10A at 250VAC or 10A at 30VDC, making it suitable for operating lights, appliances, solenoids, motors, and industrial equipment.
PACKAGE INCLUDES:
- 1 × 2-Channel Isolated 5V 10A Relay Module with Optocoupler
Additional information
| Weight | 30 g |
|---|
Reviews (0)
Application
- Home Automation
- Industrial Automation
- IoT Projects
- Prototyping & Experimentation
- Agricultural Automation
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Relay Type | Low Level Trigger |
| Logic Input Voltage | 3.3V to 5V |
| Trigger Voltage | 5V DC |
| Switching Voltage (AC) | 250VAC @ 10A |
| Switching Voltage (DC) | 30VDC @ 10A |
| Length | 50.6 mm |
| Width | 39 mm |
| Height | 19.5 mm |
| Weight | 28 g |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 6 × 5 × 3 cm |
