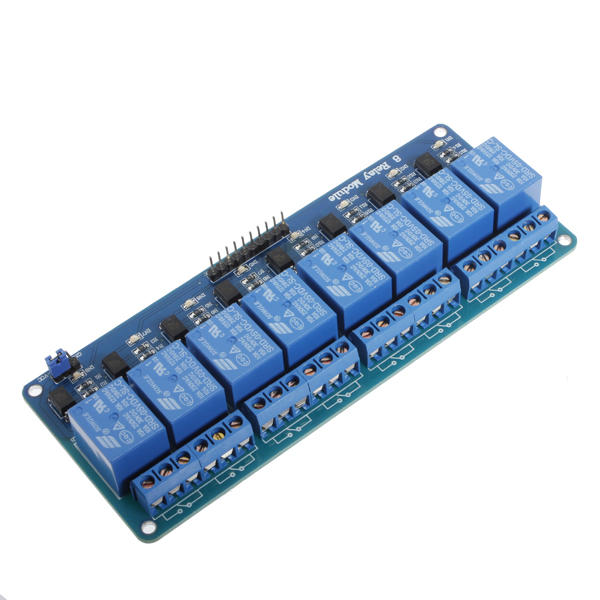

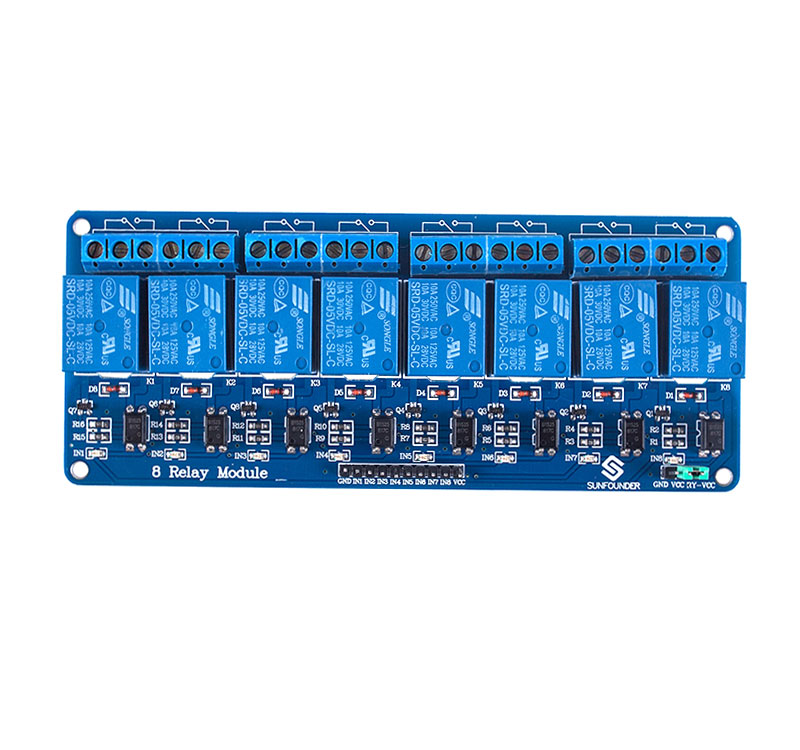

8 Channel 5v Relay Module
₹322.00 (Inclusive of GST)
- Power supply and relay status indication LEDs
- Input signal, common terminal, and activation pins for easy interfacing
- Suitable for controlling appliances and electrical loads
- Supports both AC and DC load control, including 220V AC
- Each relay provides 1 × NO (Normally Open) and 1 × NC (Normally Closed) contact
- Triode-driven relay coils for improved switching performance
- High-impedance controller input pins
The 8 Channel 5v Relay is a durable, high-performance 8-channel relay module ideal for use in automation, IoT, and embedded control applications. Featuring opto-isolated inputs, this relay module provides excellent electrical isolation between your microcontroller and the high-voltage output side.
Designed to operate with a 5V logic input, it is fully compatible with Arduino, Raspberry Pi, ESP32, ESP8266, PIC, AVR, ARM, and other development systems.
With the ability to control eight separate loads, this module is perfect for large-scale automation tasks such as switching appliances, motors, lamps, pumps, HVAC devices, and more.
LED indicators on each channel provide real-time relay status, and high-quality screw terminals ensure secure load connectivity. The relay is capable of switching up to 250VAC or 30VDC at 10A, making it suitable for both household and industrial applications.
PACKAGE INCLUDES:
- 1 × 8 Channel Isolated 5V 10A Relay Module with Optocoupler
| Weight | 120 g |
|---|
- Home Automation
- Lighting Control
- Appliance Control
- Security Systems
- Industrial Automation
- Motor Control
- Process Automation
- Monitoring Systems
- Remote Control Systems
- IoT Devices
- Wireless Control
- Robotics
- Actuator Control
- Power Distribution
- Prototyping and Development
- Testing Circuits
- Project Builds
- Automotive Electronics
| Parameter | Value |
| Operating Voltage | 5 VDC |
| Trigger Voltage | 5 VDC |
| Switching Voltage (AC) | 250VAC @ 10A |
| Switching Voltage (DC) | 30VDC @ 10A |
| Length | 140 mm |
| Width | 58 mm |
| Height | 18 mm |
| Weight | 108 g |
| Shipping Weight | 0.12 kg |
| Shipping Dimensions | 14 × 7 × 3 cm |
