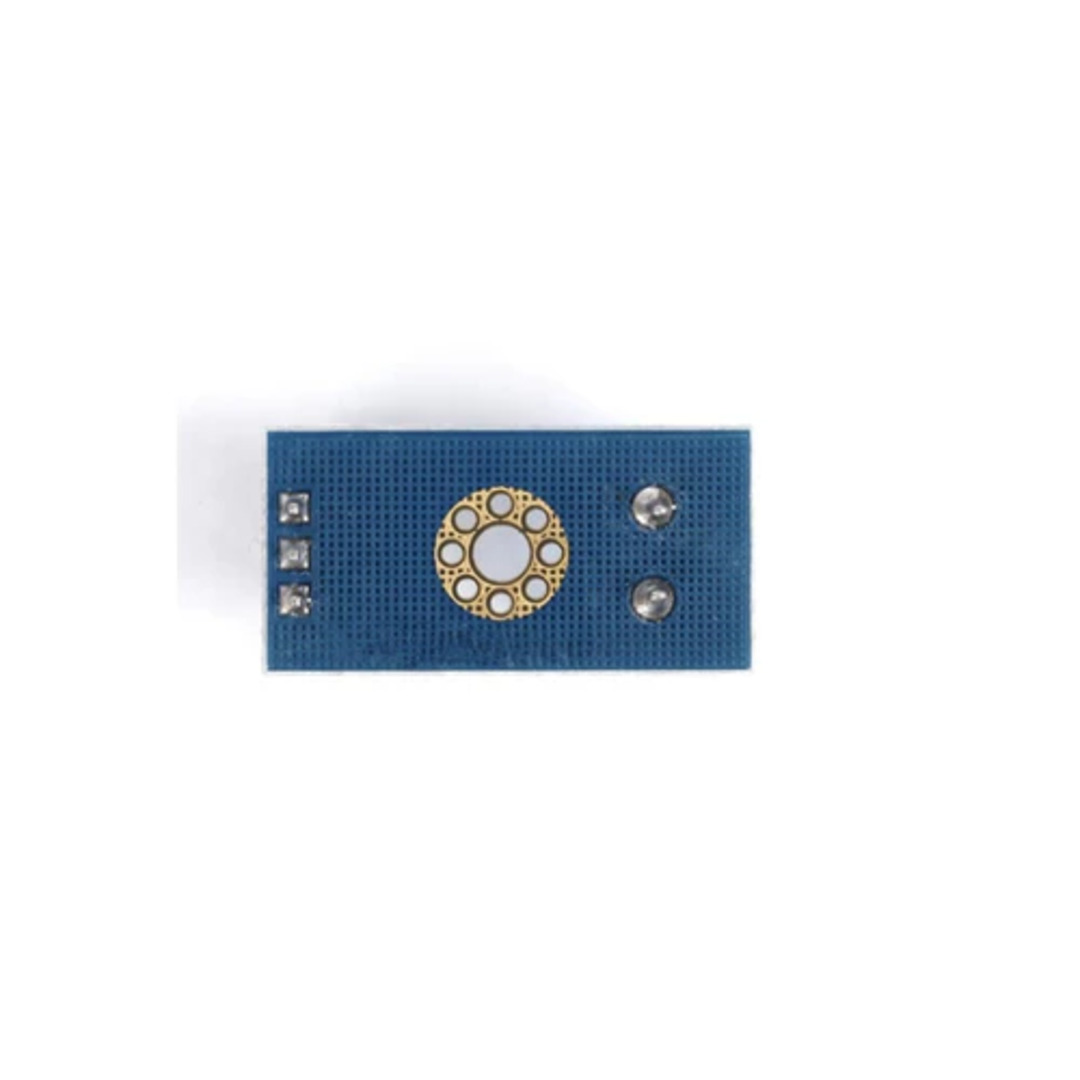

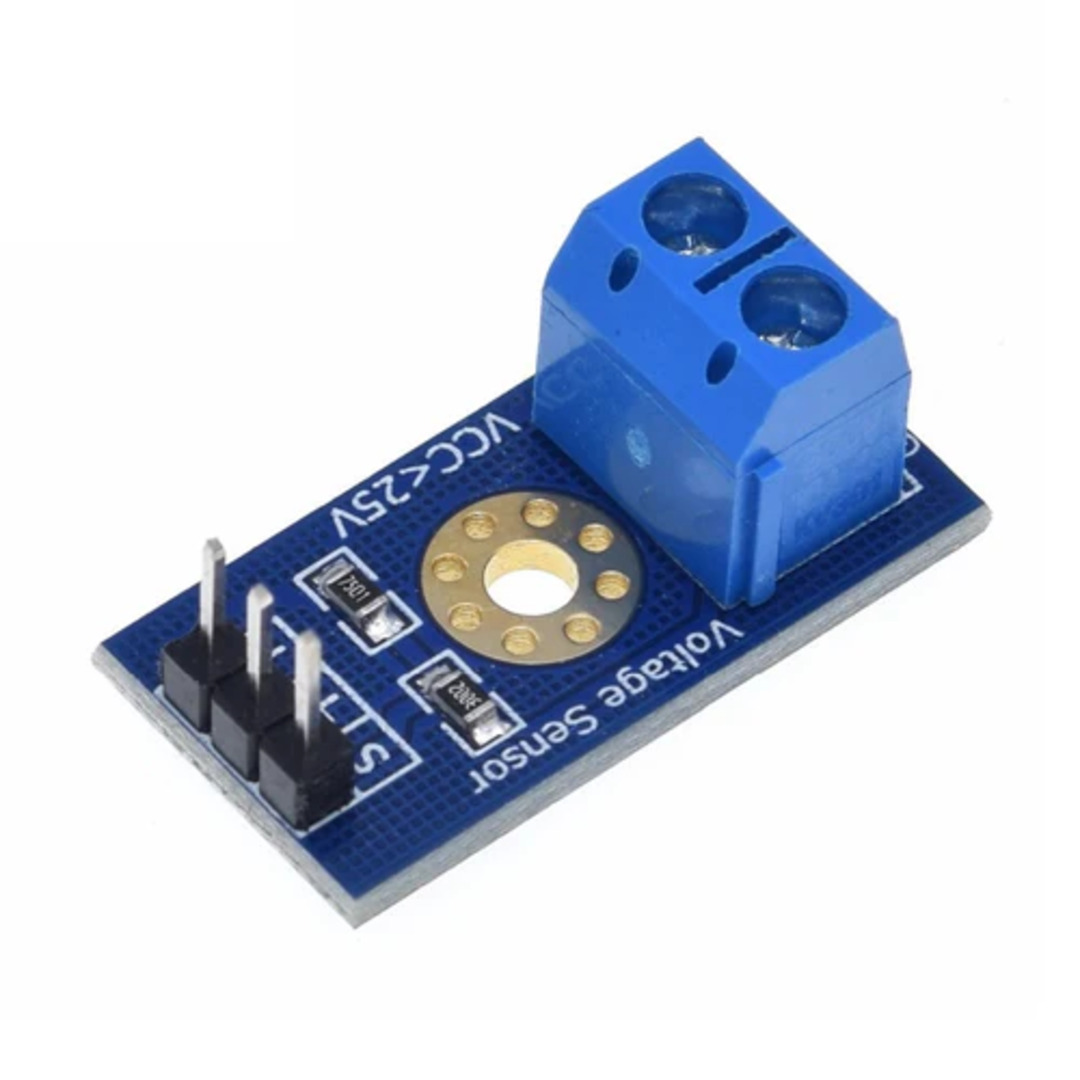

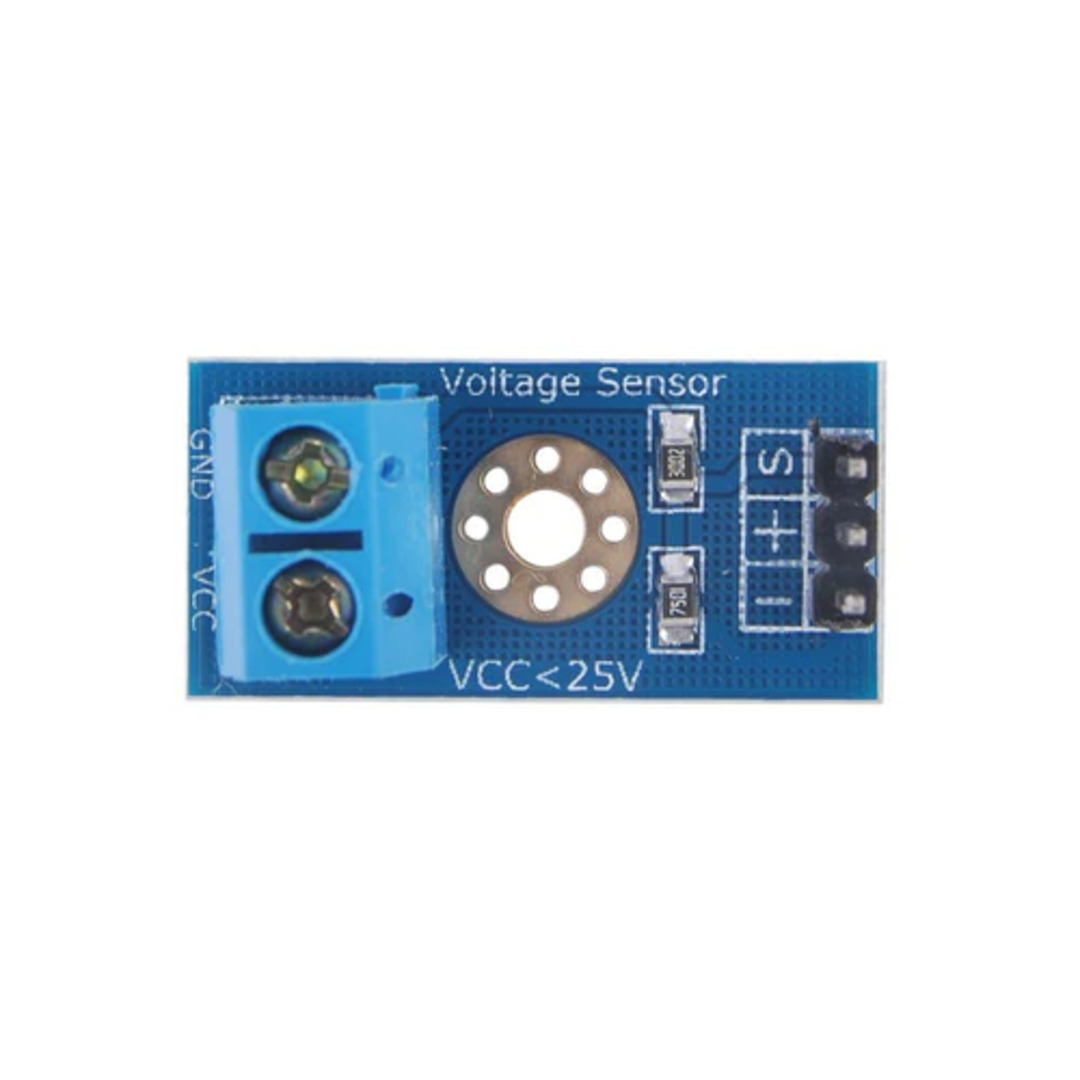

Voltage Detection Sensor Module (0–25V)
- Output Type: Analog
- Input Voltage Range: 0–25V DC
- Usable Detection Range: 0.02445V to 25V
- Analog Resolution: 0.00489V (with 10-bit ADC at 5V reference)
- Dimensions: 4 × 3 × 2 cm
Description
The 0–25V Voltage Sensor Module is a simple, reliable, and compact module designed for voltage measurement applications. It uses a precision voltage divider circuit to safely scale down higher voltages so they can be read by a microcontroller’s analog input.
Key features:
- Suitable for measuring low to moderately high DC voltages (battery, power supply, solar panel output).
- Directly interfaces with microcontrollers like Arduino, ESP32, and Raspberry Pi (via an external ADC).
- Output is a proportional analog voltage (0–5V) that can be easily processed by a 10-bit ADC.
- Compact design makes it easy to integrate into embedded systems.
- Ideal for battery health monitoring, automation projects, and DIY IoT devices.
PACKAGE INCLUDES:
- 1 × Voltage Detection Sensor Module (0–25V)
Reviews (0)
Applications
- Battery Voltage Monitoring
- Power Supply & DC Bus Monitoring
- Solar, Wind, and Renewable Energy Systems
- Home Automation Controllers Robotics
- Automotive/DC system measurements
- DIY Electronics Projects
- Data Logging Systems
- Industrial Voltage Monitoring
- IoT-Based Energy Management
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Input Voltage | 0–25V DC |
| Measurement Range | 0.02445–25V |
| Output Type | Analog (0–5V max) |
| Resolution | 4.89 mV (with 10-bit ADC, 5V ref) |
| Length | 28 mm |
| Width | 14 mm |
| Height | 13 mm |
| Weight | 4 g |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 4 × 3 × 2 cm |
| Internal Divider Ratio | 5:1 (typical; based on 30kΩ + 7.5kΩ resistors) |
