5MP Camera Module for Raspberry Pi
Original price was: ₹300.00.₹270.00Current price is: ₹270.00. (Inclusive of GST)
- Type: Digital camera module for Raspberry Pi
- Image Sensor: 5 Megapixel (OV5647 CMOS sensor)
- Resolution: 2592 × 1944 pixels (still image)
- Video Output: 1080p @30fps, 720p @60fps, 480p @90fps
- Lens Type: Fixed focus
- Field of View (FOV): ~54° horizontal, ~41° vertical (standard lens)
- Interface: CSI (Camera Serial Interface) via 15-pin ribbon cable
- Compatibility: Raspberry Pi 1, 2, 3, 4, and 5 (with adapter if needed)
- Operating Voltage: 3.3V (supplied by Pi board)
- Power Consumption: <250 mW
- Dimensions: ~25mm × 24mm × 9mm
Description

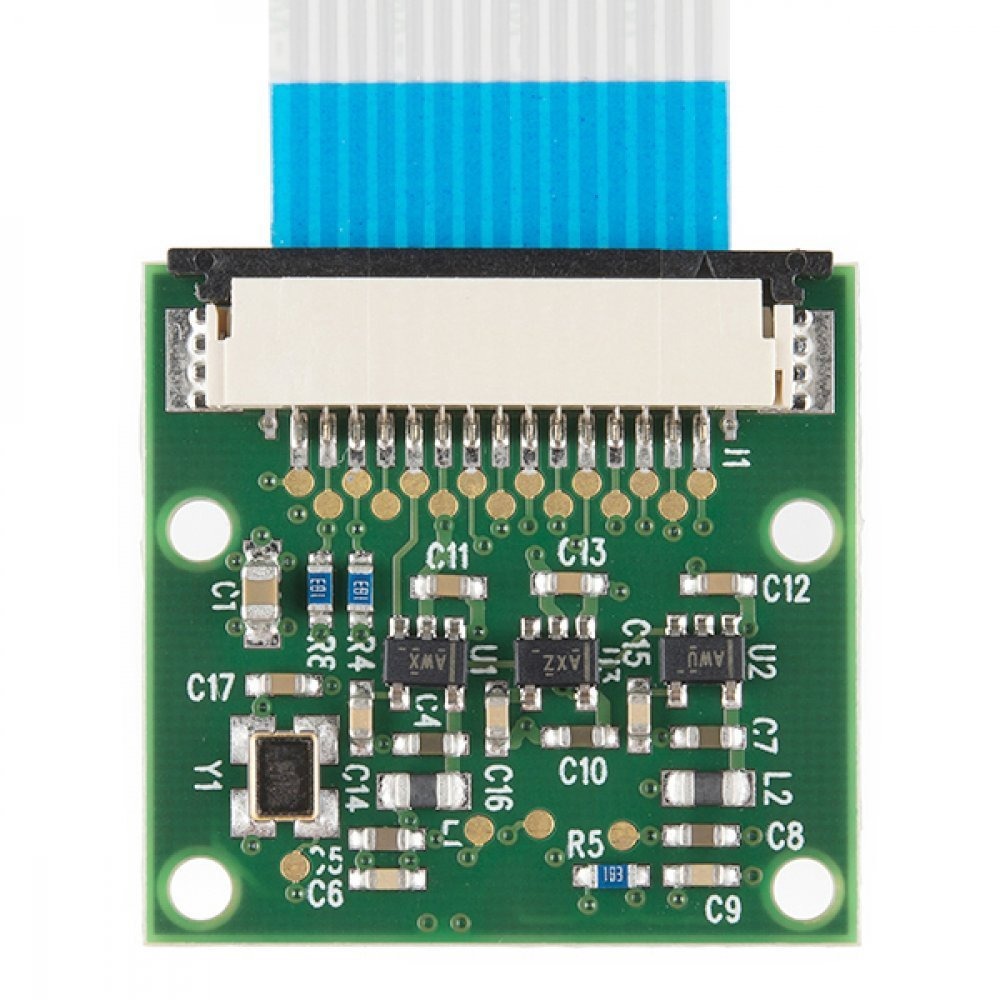

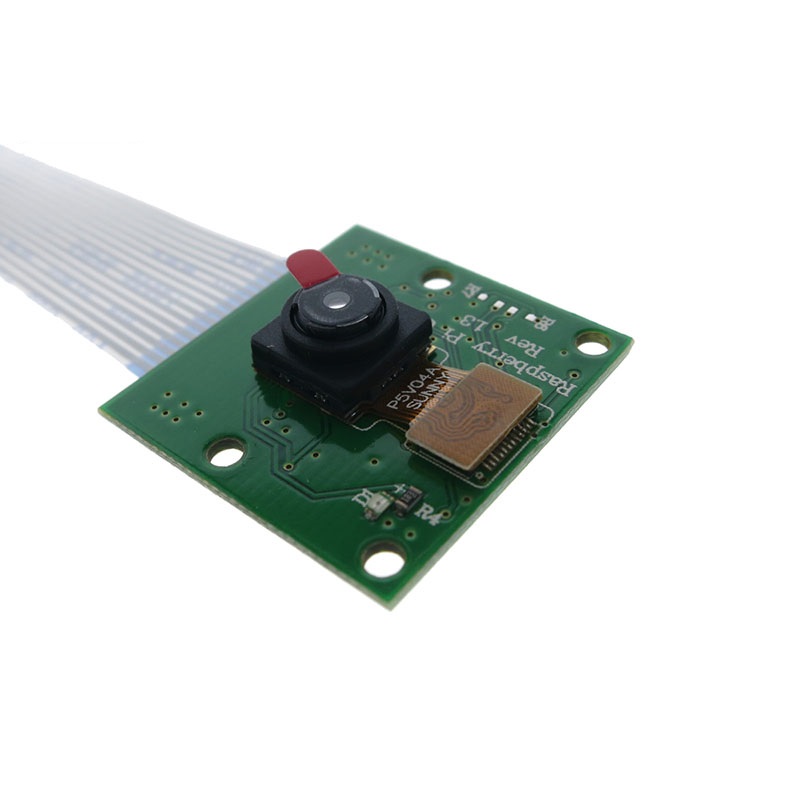

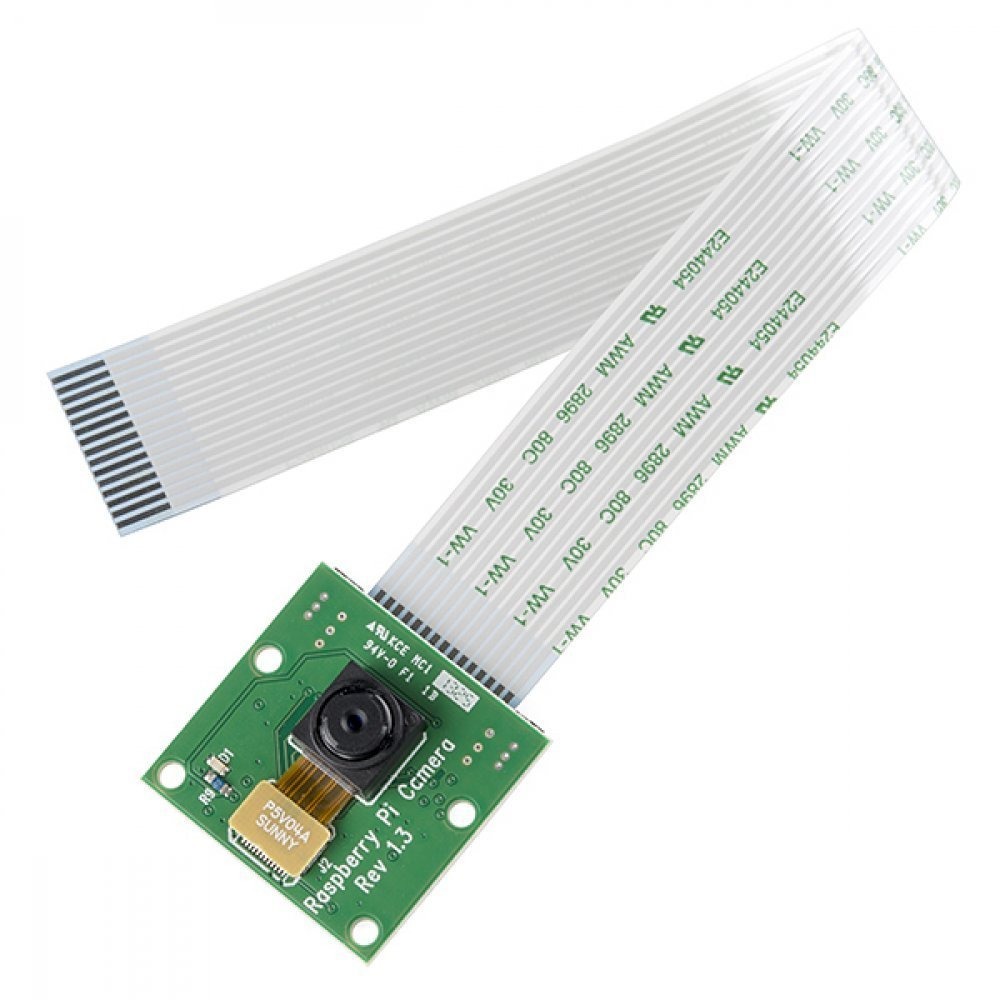

- The Raspberry Pi 5MP Camera Module is a compact, high-quality digital camera designed to connect directly to the Raspberry Pi CSI port via a ribbon cable.
- It uses the Omnivision OV5647 image sensor, delivering sharp images and HD video output.
- Suitable for image capture, video streaming, computer vision, and IoT-based applications.
- Fully compatible with the Raspberry Pi Camera Library (libcamera) and older raspistill tools.
- The module connects easily to the Pi using the CSI (Camera Serial Interface) connector located near the HDMI port.
- Supports both still photography and video recording, with multiple resolution and frame rate options.
- Often used in robotics, surveillance, and AI projects such as object detection, facial recognition, and motion tracking.
PACKAGE INCLUDES:
- 1 × 5MP Raspberry Pi Camera Module
- 1 × 15cm CSI Ribbon Cable
Additional information
| Weight | 20 g |
|---|
Reviews (0)
Applications
- Robotics and Object Tracking
- AI & Machine Vision
- Home Security & Surveillance Systems
- Time-Lapse Photography
- Wildlife Observation Cameras
- Educational and Research Projects
- IoT Image Capture Systems
Technical Specifications
| Parameter | Value |
| Image Sensor | OV5647 (CMOS) |
| Resolution | 5 Megapixels (2592 × 1944) |
| Video Modes | 1080p @30fps / 720p @60fps / 480p @90fps |
| Lens Type | Fixed Focus |
| Focus Range | 10 cm – ∞ |
| Field of View | ~54° × 41° |
| Interface Type | CSI (15-pin ribbon connector) |
| Operating Voltage | 3.3V (powered by Raspberry Pi) |
| Power Consumption | <250 mW typical |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 25mm × 24mm × 9mm |
| Mounting Holes | 4 (M2 size, for standard enclosures) |
Datasheet
- Sensor Datasheet: Omnivision OV5647 Sensor Datasheet (PDF)
- Raspberry Pi Camera Documentation: Official Raspberry Pi Camera Guide
