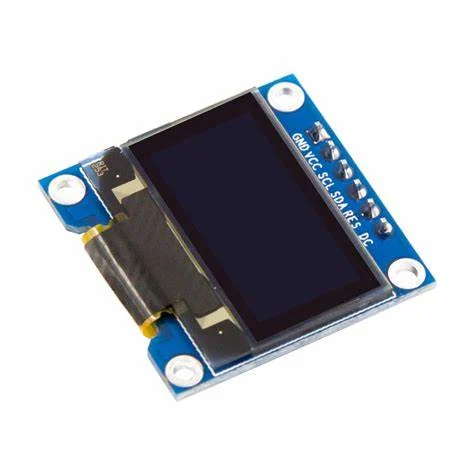

0.96 Inch OLED Display Module
Original price was: ₹191.00.₹173.00Current price is: ₹173.00. (Inclusive of GST)
- Type: Graphical OLED Display Module
- Display Size: 0.96 inch (diagonal)
- Resolution: 128 × 64 pixels
- Display Color: White / Blue (varies by model)
- Display Type: OLED (Organic Light Emitting Diode)
- Interface: I²C (default) / SPI (depending on version)
- Operating Voltage: 3.3V – 5V DC
- Driver IC: SSD1306
- Viewing Angle: >160°
- Power Consumption: <0.08W (typical)
- Dimensions: Approx. 27mm × 27mm × 4mm
Description
- The 96 Inch OLED Display Module is a compact, high-contrast screen ideal for embedded electronics and IoT projects.
- Based on the SSD1306 controller, it supports both I²C and SPI communication interfaces (depending on module version).
- The display offers 128×64-pixel resolution, providing clear and crisp text or graphics output even in low-light environments.
- It consumes very low power, making it suitable for battery-operated
- Compatible with Arduino, ESP8266, ESP32, Raspberry Pi, STM32, and other microcontroller platforms.
- Libraries such as Adafruit_SSD1306 and U8G2 simplify integration, providing ready-to-use functions for drawing text, shapes, and images.
- The display is self-emissive, meaning each pixel generates its own light—no backlight required—resulting in deep blacks and wide viewing angles.
PACKAGE INCLUDES:

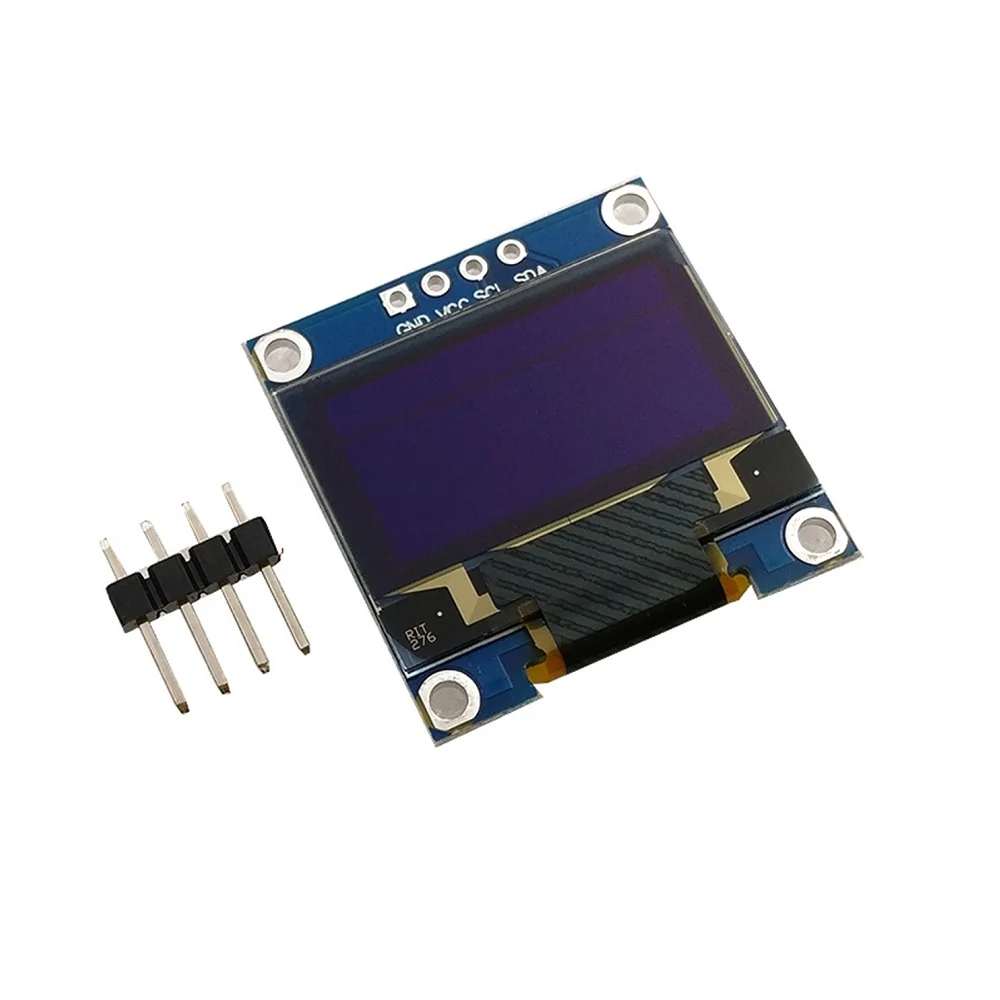

- 1 × 0.96 Inch OLED Display Module (SSD1306)
Additional information
| Weight | 5 g |
|---|
Reviews (0)
Application
- Embedded System Display Interfaces
- IoT Devices and Wearables
- Sensor Monitoring Screens
- Robotics and Automation Displays
- Battery-powered Gadgets
- DIY Electronics and Education Projects
- Mini Instrumentation Panels
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| OLED Technology | OLED (Organic Light Emitting Diode) displays are made from organic materials that emit light when current passes through them—no backlight needed. |
| Display Control via SSD1306 | The SSD1306 driver handles data transfer, refresh, and pixel addressing, supporting 8-bit parallel, SPI, and I²C communication. |
| I²C Interface Working | Communicates using only two wires (SCL and SDA), making it efficient for compact embedded systems. |
| Advantages over LCD | Higher contrast, faster refresh rate, and lower power consumption with thinner and lighter design. |
