3.5 inch TFT Touch LCD Module for Arduino
- 3.5-inch TFT LCD Display with 480×320 resolution
- Based on ILI9486 display controller
- Supports 16-bit parallel communication (8080 interface)
- Compatible with Arduino UNO, Mega, Due, ESP32 (with adapter)
- Resistive touch panel with XPT2046/ADS7843 touch controller
- Built-in microSD card slot for image/data storage
- Full-color TFT display with 262K colors
- 5V supply compatible with onboard voltage regulator

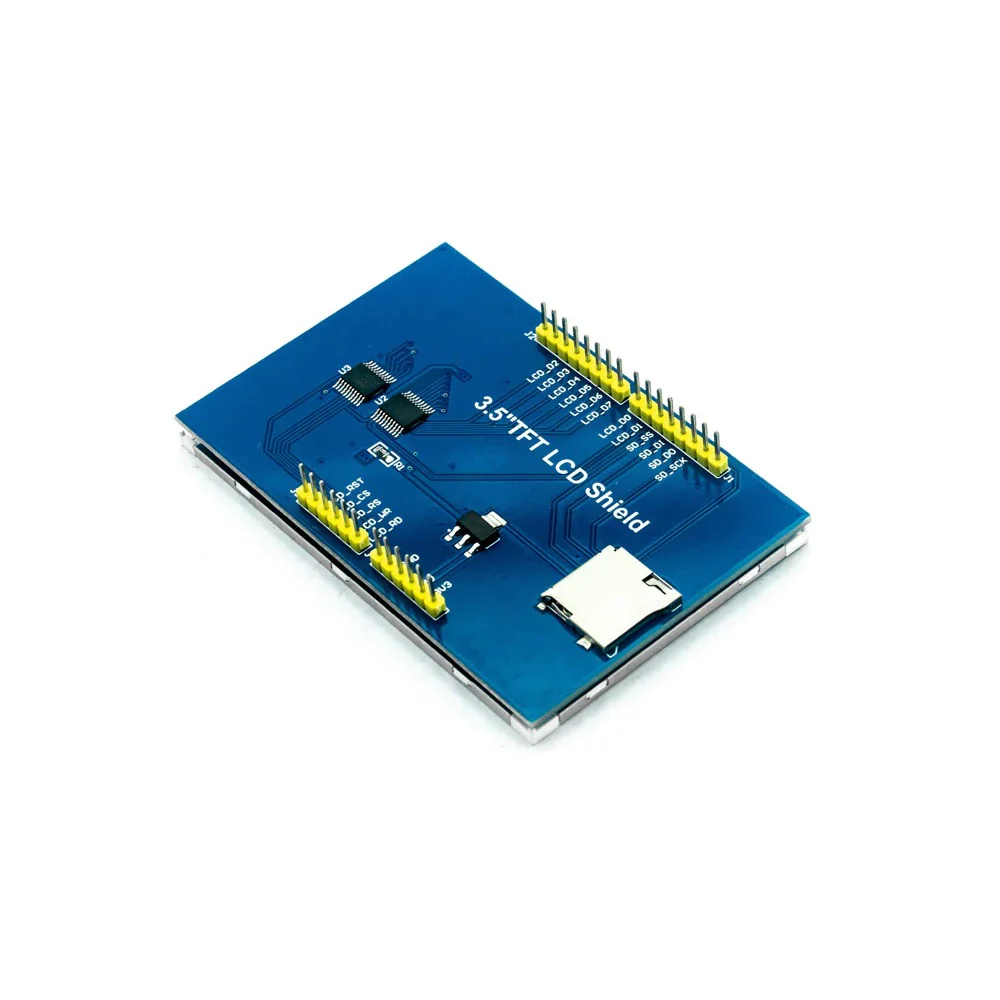

- Integrated PCB shield form factor for direct Arduino stacking
Description

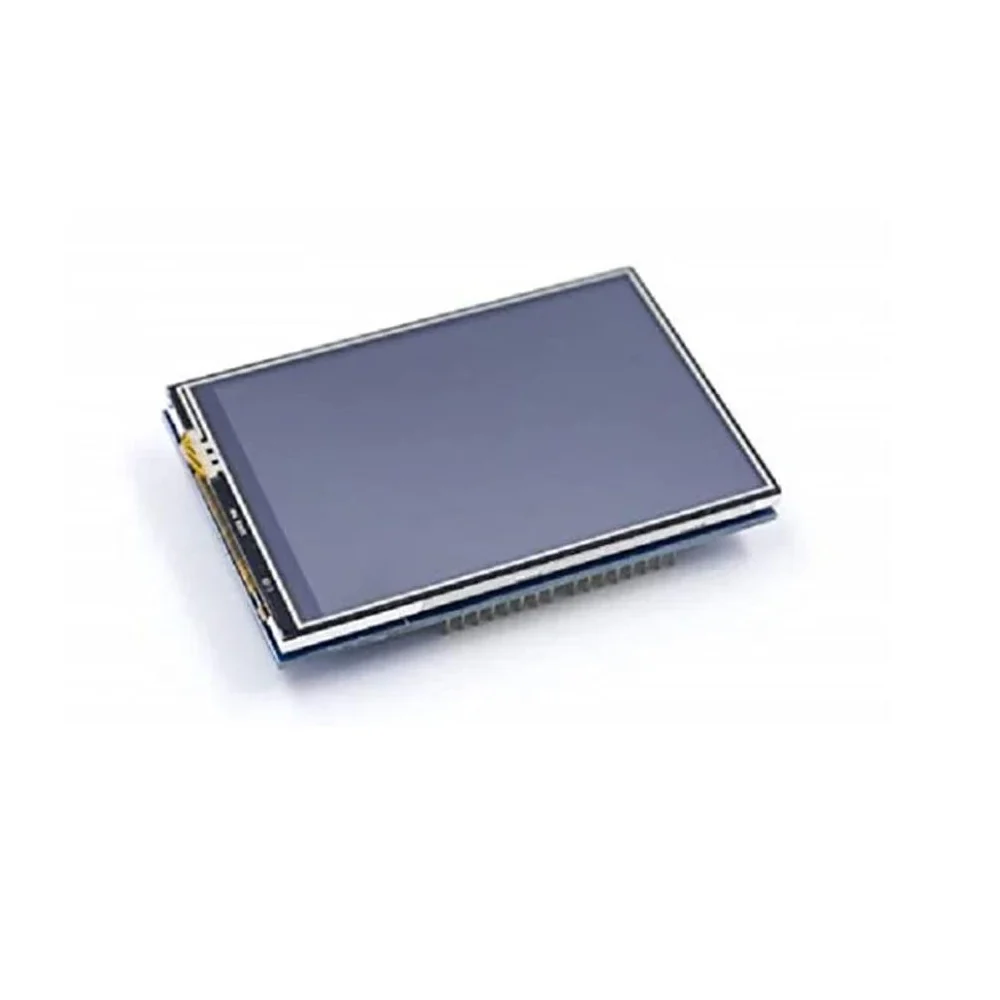

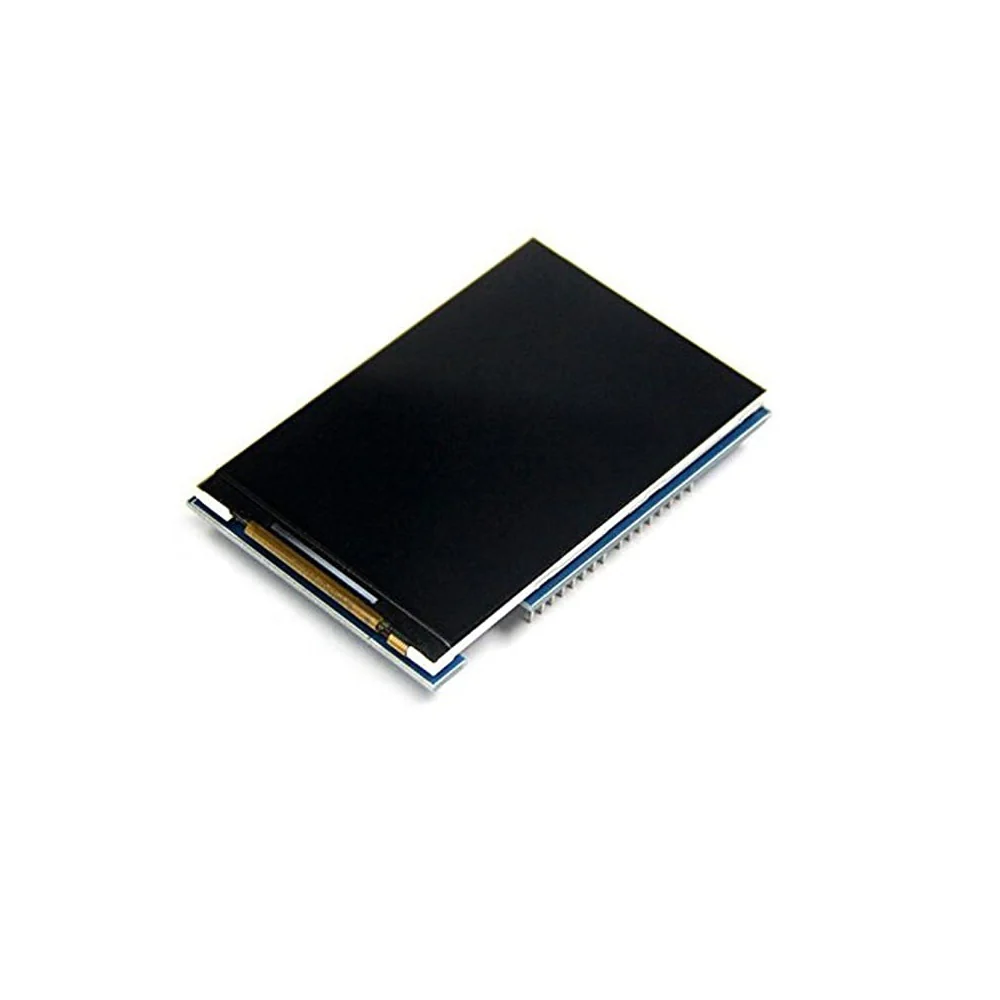

The 3.5″ TFT Touch Shield ILI9486 is a high-resolution full-color LCD module designed for Arduino and other microcontroller platforms.
It features a 480×320 pixel display driven by the ILI9486 controller, offering vibrant colors and high-quality graphics output.
The module includes a resistive touch panel and touch controller, allowing user interaction via simple touch-based input.
Its shield form factor enables plug-and-play compatibility with Arduino boards without additional wiring.
The onboard microSD slot allows loading images, icons, fonts, and graphic assets for GUI-based projects.
This display is widely used in projects like control panels, dashboards, IoT terminals, instrumentation, and user interfaces.
PACKAGE INCLUDES:
- 1 × 3.5″ TFT Touch Shield ILI9486 LCD Module (480×320)
Additional information
| Weight | 100 g |
|---|
Reviews (0)
Applications
- Human–Machine Interface (HMI)
- IoT Dashboards
- Smart Home Control Panels
- Industrial Displays
- Device Monitoring Screens
- Interactive Projects
- Embedded Touch Interfaces
- Data Visualization
- Sensor Monitoring Systems
- Educational Kits and Prototypes
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Display Size | 3.5 inches |
| Display Type | TFT LCD |
| Driver IC | ILI9486 |
| Touch Panel | Resistive |
| Touch Controller | XPT2046 / ADS7843 |
| Resolution | 480 × 320 pixels |
| Colors | 262K (18-bit) |
| Supply Voltage | 5V |
| Communication | 16-bit parallel (8080 mode) |
| Interface Type | TFT Shield for Arduino |
| Backlight | White LED |
| Operating Temperature | -20°C to +70°C |
| PCB Dimensions | ~85 × 55 mm (typical) |
| Weight | ~85g |
| Shipping Weight | ~0.100 kg |
| Shipping Dimensions | 11 × 7 × 3 cm |
