Rain Drop Sensor Module
₹48.00 (Inclusive of GST)
- Sensor Type: Analog rain sensor with digital output via comparator
- Operating Voltage: 3.3V to 5V DC
- Output Type:
- Analog Output: Varies according to amount of water on the collection board
- Digital Output: Controlled by LM393 comparator
- Sensitivity: Adjustable (via onboard potentiometer)
- Response Time: Fast response to water droplets
- Operating Temperature: -10°C to 50°C
- Board Type: PCB-based rain detection plate
- Installation: Compact and easy to mount
- Calibration: Supported through comparator threshold adjustment
- Weather Resistance: Surface-tinned PCB for corrosion protection
Description
- The Raindrop Sensor detects rainwater using changes in resistance or conductivity when water droplets form conductive paths on the sensor plate.
- The system consists of:

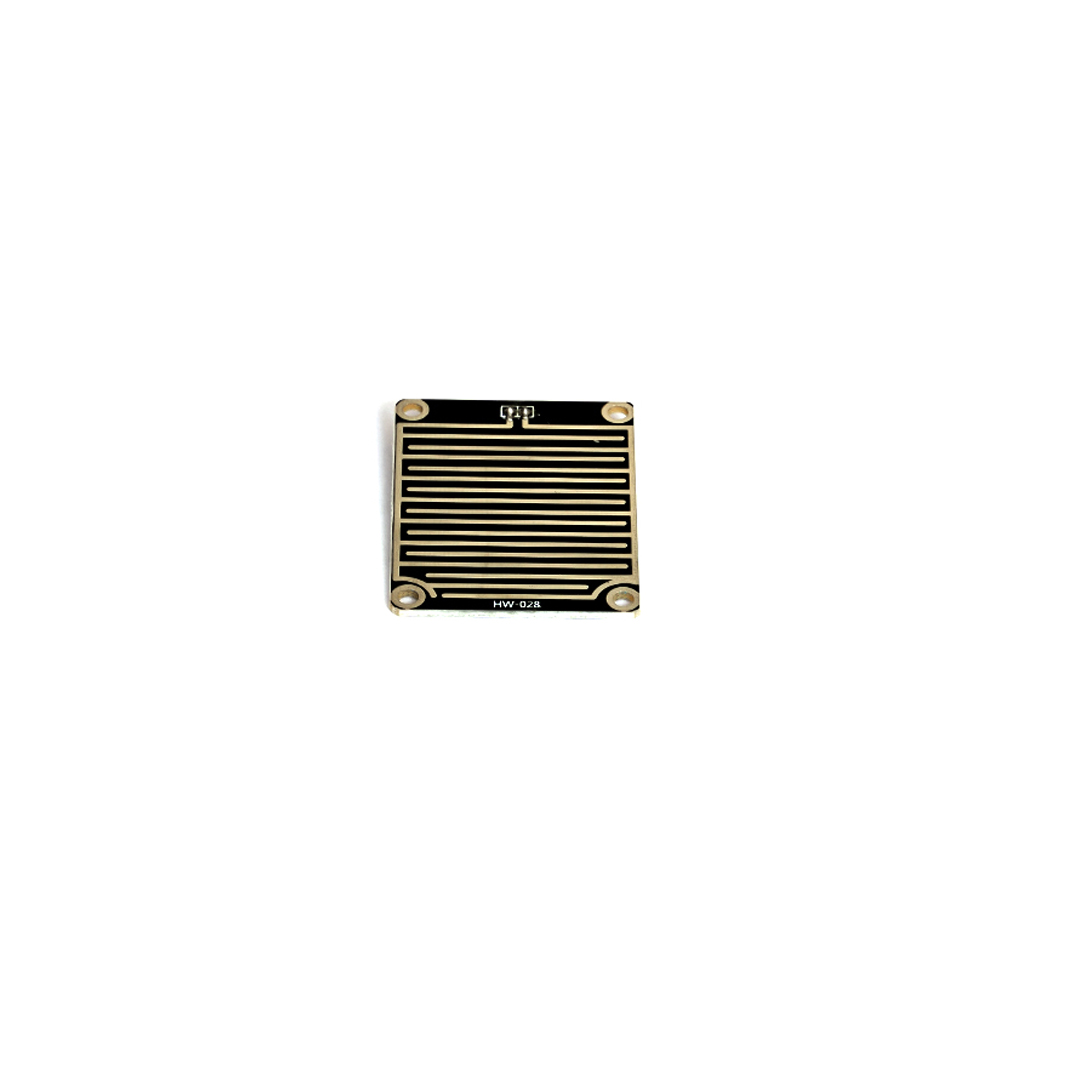

- Collector Plate: Detects raindrops and outputs variable resistance

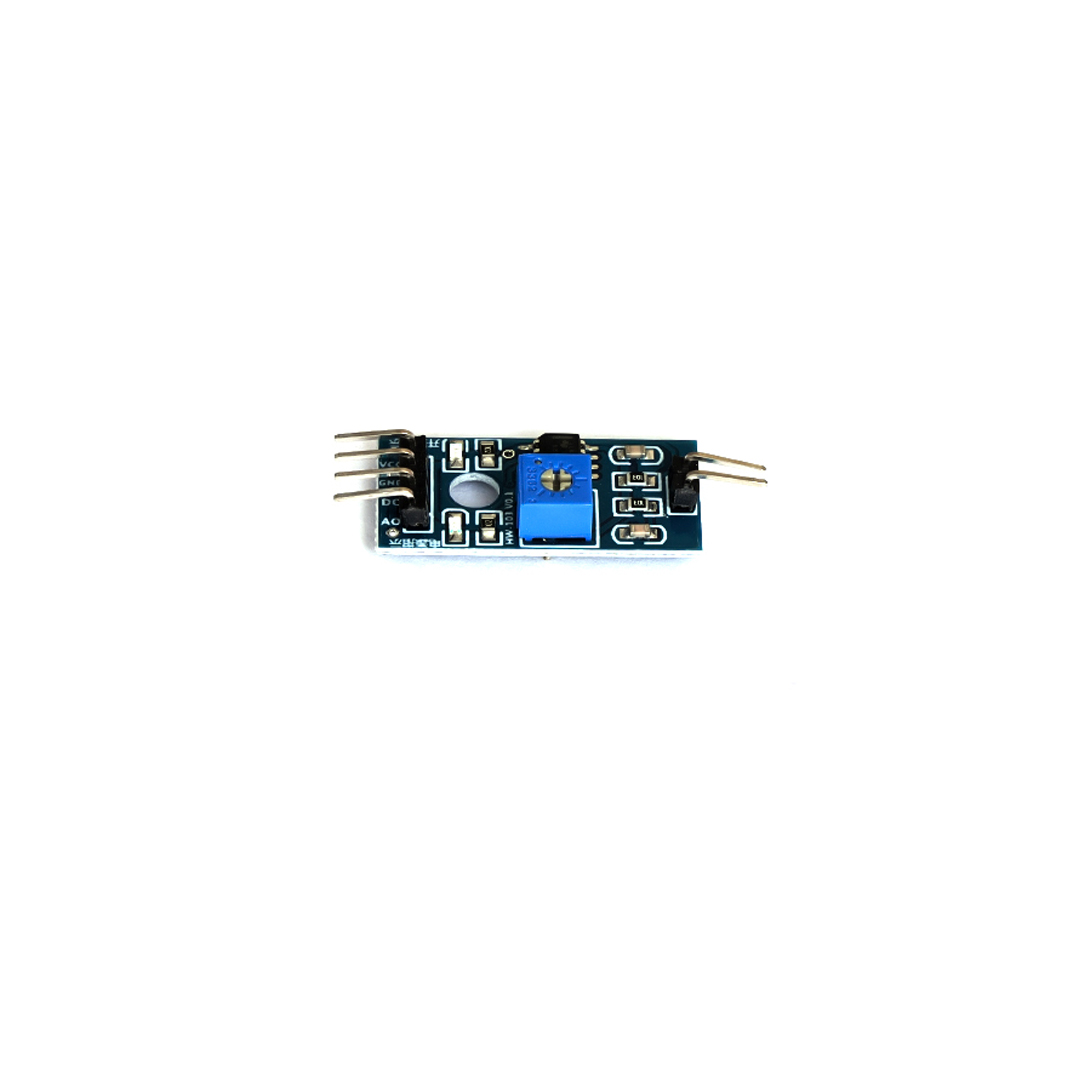

- Control Module: Uses an LM393 voltage comparator to convert readings to analog or digital signals
- The sensor outputs:
-
- Analog signal proportional to rainfall intensity
- Digital signal (0/1) for rain/no-rain detection
- Commonly used in weather stations, smart irrigation, automatic window control, and safety automation systems.
- Enables smart automation such as:
- Closing windows or shades during rain
- Activating wipers in automotive systems
- Controlling irrigation based on real-time precipitation
- Provides real-time rain data for environmental monitoring and research.
- Designed to be durable, cost-effective, and easy to integrate with Arduino, ESP32, ESP8266, Raspberry Pi, and other microcontrollers.

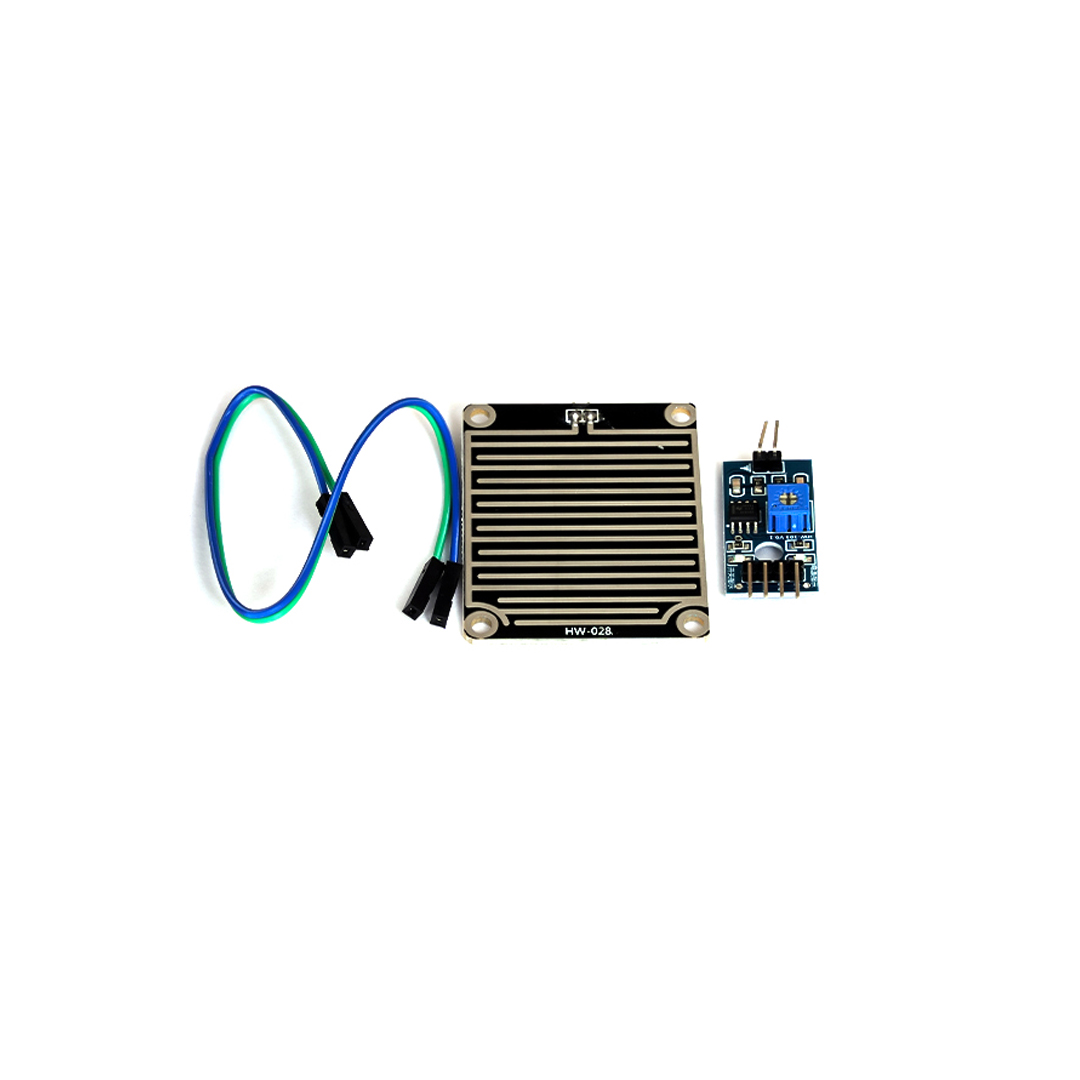

 PACKAGE INCLUDES:
- 1 × Rainwater Collector PCB
- 1 × LM393 Control Board
- 1 × 5-Wire DuPont Cable
Additional information
| Weight | 10 g |
|---|
Reviews (0)
Applications
- Automatic rainwater harvesting
- Smart irrigation systems
- Weather monitoring stations
- Automated car wash systems
- Automotive wiper automation
- Greenhouse automation
- Smart home and building systems
- Industrial monitoring
- Rain-triggered alarm systems
- Research and education labs
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Operating Voltage | 3.3V – 5V |
| Comparator | LM393 |
| Driver Board Dimensions | 32 × 15 × 9 mm |
| Collector Plate Size | 54 × 40 × 1.5 mm |
| Output | Analog + Digital |
| Sensitivity | Adjustable |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 7 × 6 × 3 cm |
