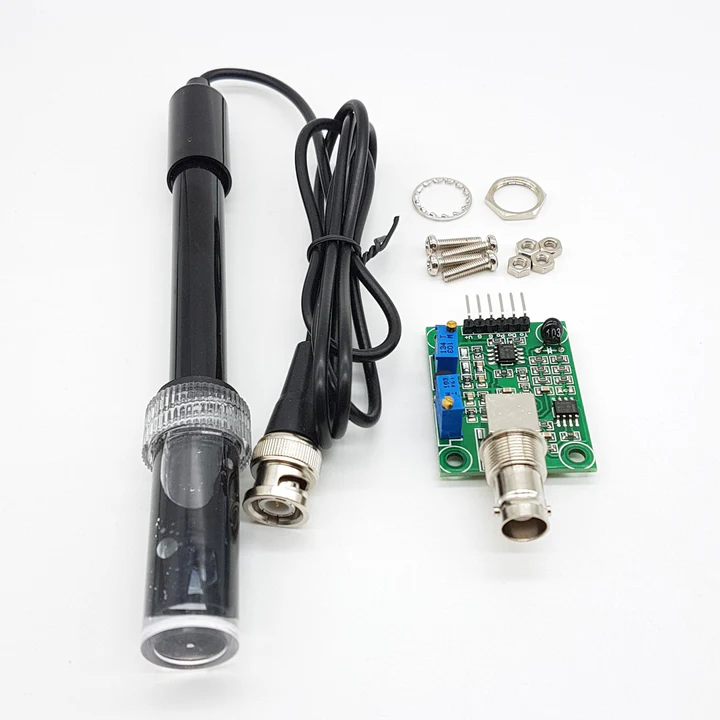

Liquid PH Electrode Probe With Amplifier
- Analog output (0 – 3.0V typical after conditioning)
- Operating Voltage (Amplifier Module): 5V DC
- Measurement Range: 0 – 14 pH
- Resolution: ±0.01 pH (typical)
- Accuracy: ±0.1 pH (at 25°C)
- BNC Connector for probe
- Compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32
- Temperature compensation interface (external NTC support)
- Long cable for easy immersion applications
Description
- This Liquid pH Electrode Probe with Amplifier is designed to accurately measure the acidity or alkalinity of aqueous solutions, making it essential for water quality testing and chemical analysis.
- The probe uses a glass electrode filled with electrolytes to generate a voltage proportional to the hydrogen ion concentration in the solution.
- The included pH signal conditioning amplifier converts the weak millivolt signal from the probe into a stable analog output, ideal for microcontroller ADC pins.
- Suitable for continuous pH monitoring, with high stability and low drift.
- Ideal for aquariums, hydroponics, water treatment plants, laboratories, and environmental monitoring setups.
- The durable BNC probe design ensures reliable long-term measurements and easy replacement when needed.
- Works seamlessly with common development boards for DIY pH meters, IoT dashboards, and automated dosing systems.
PACKAGE INCLUDES:
- 1 × pH Electrode Probe (BNC Connector)
- 1 × pH Signal Conditioning Amplifier Module
- 1 × BNC Cable
- 1 × Connecting Cable (for microcontroller)
Additional information
| Weight | 60 g |
|---|
Reviews (0)
Application
- Water quality testing
- Hydroponics & aquaponics
- Aquarium monitoring systems
- Environmental sampling
- Laboratory chemical analysis
- Food and beverage processing
- Industrial pH monitoring
- IoT water quality devices
- Automated nutrient dosing systems
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Measurement Range | 0 – 14 pH |
| Operating Voltage (Module) | 5.0V DC |
| Output Signal | Analog (0–3.0V typical) |
| Accuracy | ±0.1 pH (at 25°C) |
| Response Time | < 1 minute |
| Probe Connector | BNC |
| Cable Length | ~1 meter |
| Module Dimensions | 43 × 32 mm |
| Working Temperature | 0 – 60°C |
| Storage Solution Required | KCl (for electrode maintenance) |
| Weight | ~30 g |
