Center Shaft Gear Motor L-Clamp
₹22.50 (Inclusive of GST)
- Made from 2 mm thick mild steel for strength and durability
- Pre-drilled motor-mount hole diameter: 13.5 mm for center-shaft motors
- Bracket mounting holes: 3 mm for chassis attachment
- L-shaped 90° bracket design for stable motor mounting
- Lightweight (~25-26 g) per bracket
- Compatible with common DC geared / Johnson / BO style motors
Description

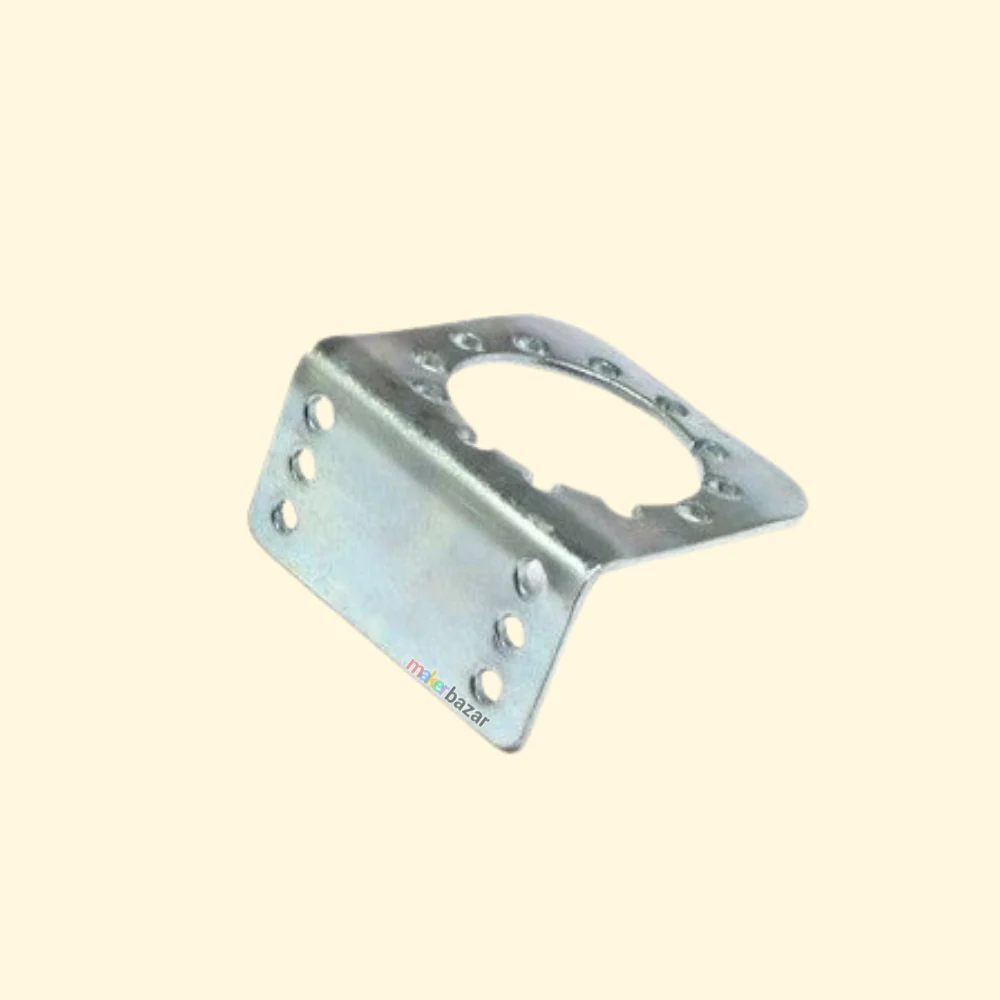

This L-Clamp Bracket is designed specifically for center-shaft DC geared motors (e.g., Johnson, BO).
The L shape allows the motor to be mounted strongly on a robotic chassis or base, providing both vertical and horizontal stability.
Made of 2 mm mild steel, these clamps resist bending and maintain alignment under load. You can use this bracket to secure your geared motor safely while maintaining easy access for wiring and shaft coupling.
It helps in:
- Proper motor alignment
- Reducing vibration
- Simplifying chassis design
- Securely fixing the motor for mobility or automation projects
PACKAGE INCLUDES:
- 1 × L Clamp Bracket
Additional information
| Weight | 25 g |
|---|
Reviews (0)
Applications
- DIY robot car (2WD/4WD)
- Smart robot chassis
- Automation systems (CNC, plotters)
- Tester rigs for motors
- Educational robotics kits
- Line follower / obstacle avoidance robots
TECHNICAL SPECIFICATIONS
| Parameter | Specification |
| Material | Mild Steel (MS) |
| Thickness | 2 mm |
| Motor Mount Hole | 13.5 mm diameter |
| Chassis Mount Hole | 3 mm diameter |
| L-Bracket Dimensions | Motor side: 40 × 40 mm; Bracket side: 40 × 24 mm |
| Weight | ~26 g per clamp |
| Finish | Plain / Powder Coated (depends on variant |
